SWIT ELECTRONICS S-7006S placa de batería V-Mount para monitores SWIT S-1073F, S-1073H, CM-S73H

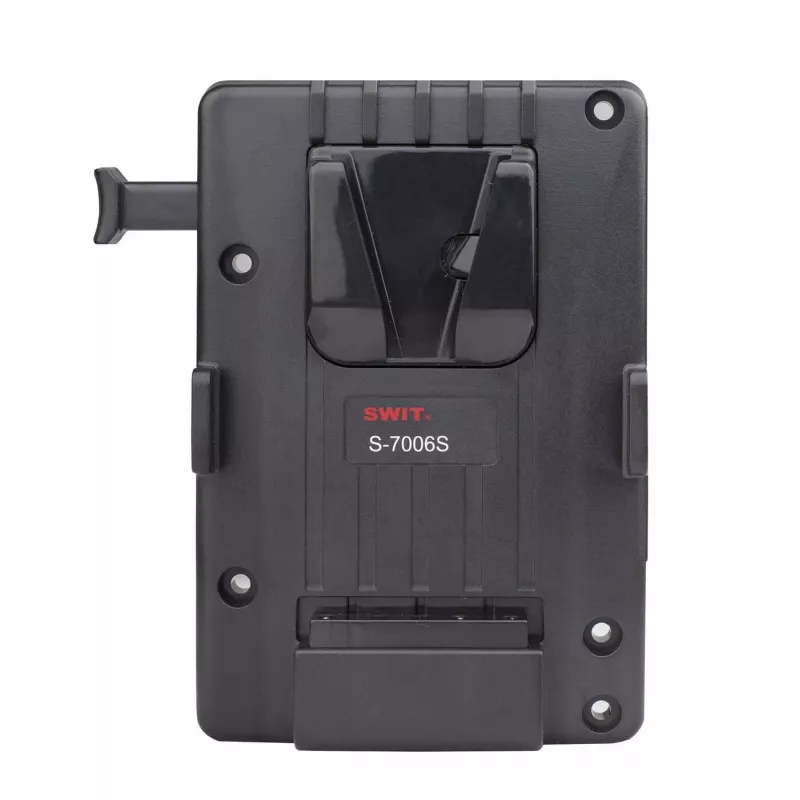

The SWIT ELECTRONICS S-7006S is a dedicated V-Mount battery plate designed to power compatible SWIT field monitors. It provides a reliable 12V DC output via a 2.1mm barrel connector and includes an integrated cable for direct monitor connection. The plate also features a D-Tap output for powering additional accessories, making it an essential accessory for professional video production.

Advantages

Seamless integration with SWIT S-1073F, S-1073H, and CM-S73H monitors. The V-Mount system allows quick battery changes and secure attachment. The built-in over-current protection ensures safe operation.

Suitable for

• SWIT S-1073F monitor
• SWIT S-1073H monitor
• SWIT CM-S73H monitor
• Other V-Mount battery powered setups requiring 12V DC

Key specifications

• Battery Mount: V-Mount
• DC Output: 12V, 3A (2.1mm barrel, center positive)
• D-Tap Output: 1x, unregulated (11-16.8V, max 50W)
• Integrated Cable: Approx. 25 cm
• Material: High-impact ABS plastic with metal contacts
• Operating Temperature: -20°C to +45°C

Recommendations

For best performance, use with genuine SWIT V-Mount batteries. Ensure the monitor is compatible before purchase.
