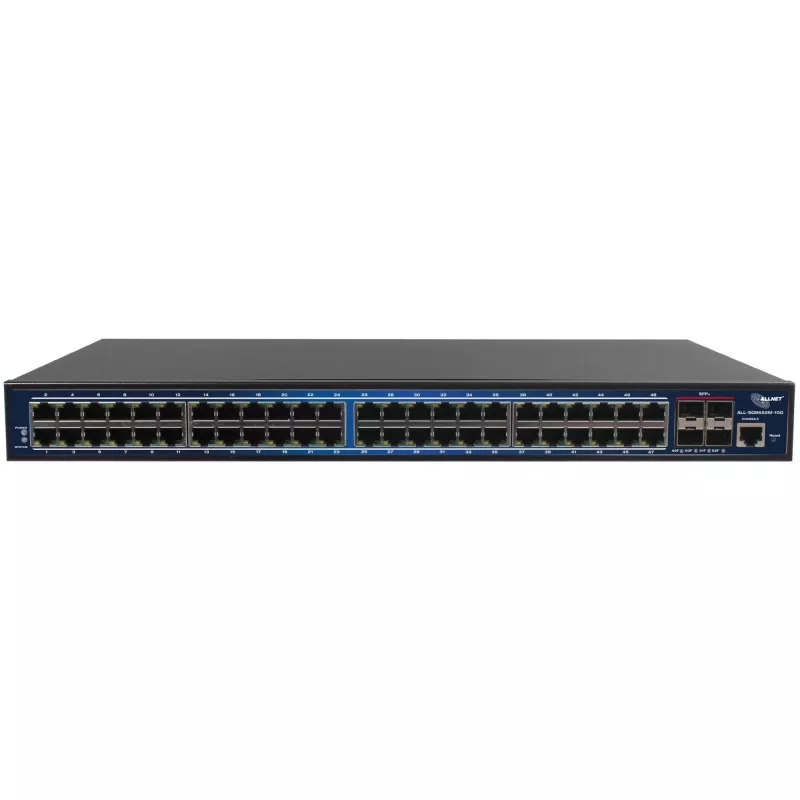

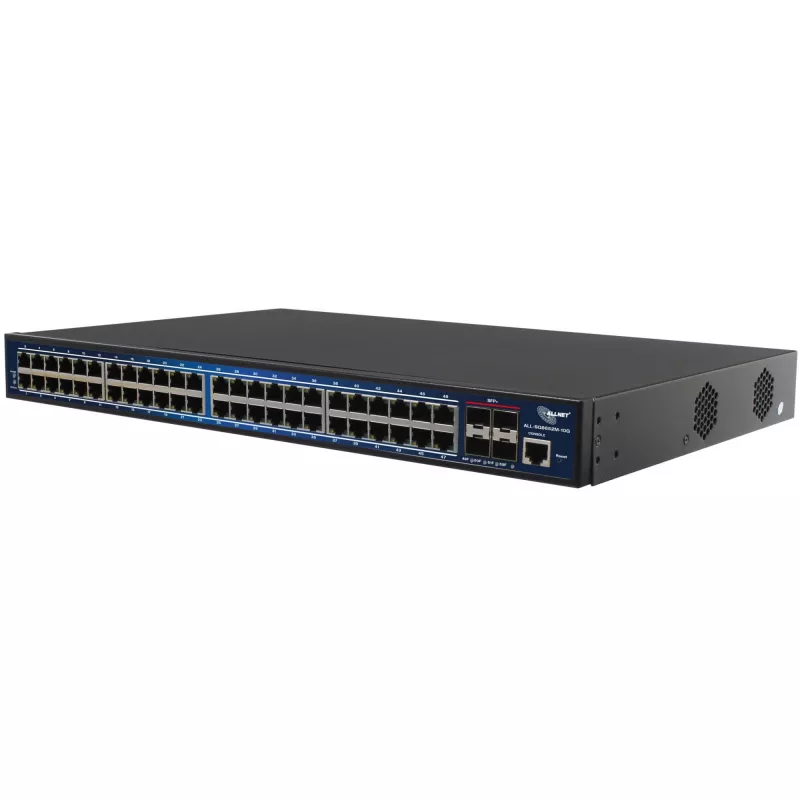

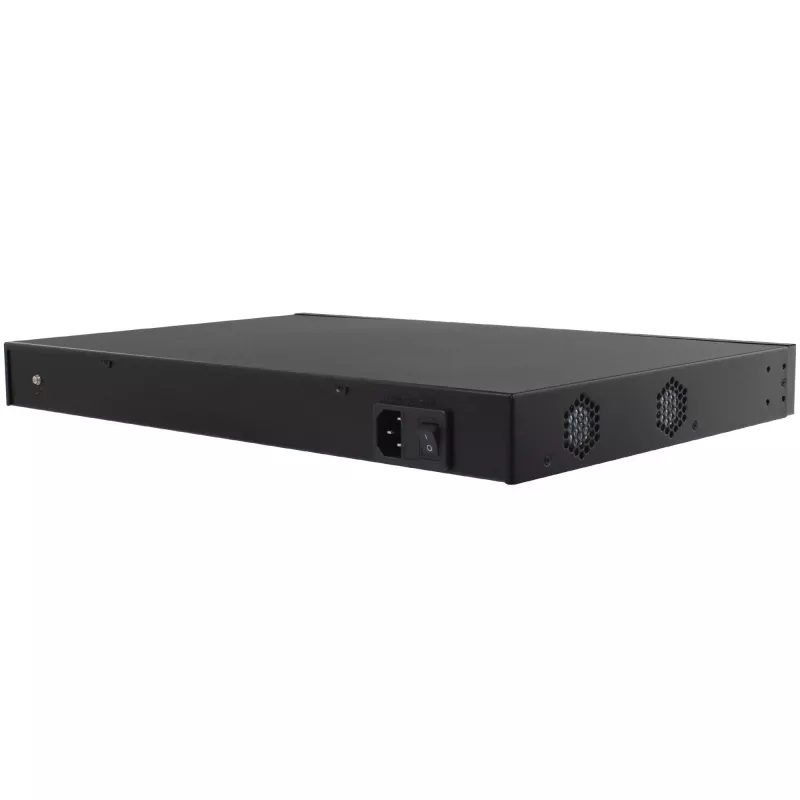

Switch ALLNET ALL-SG8652MJ-10G 48+4P 10G Ethernet gestionado

The ALLNET ALL-SG8652MJ-10G is a managed Ethernet switch with 48 standard ports and 4 10G-capable uplink ports, designed for network aggregation and backbone deployment. It supports high-throughput wired connections for small to medium enterprise networks, data closets and server rooms, offering centralized management, VLAN segmentation and traffic handling suited to multi-user environments.

Advantages

This managed switch provides a combination of high port density and 10G uplink capacity to simplify aggregation and backbone tasks. Centralized management features enable configuration of VLANs, link aggregation and QoS to prioritise traffic. The device is engineered for continuous operation in network closets and server rooms, with hardware and software features that support stable throughput and predictable latency for wired connections.

Suitable for

• Aggregation and distribution layer in small to medium enterprise networks
• Server room and data closet backbone connectivity
• High-throughput wired workgroups and virtualization hosts
• Network environments requiring VLAN segmentation and QoS

Key specifications

• 48 RJ45 Ethernet ports for standard copper connections
• 4 uplink ports supporting 10 Gigabit Ethernet speed
• Managed switch feature set including VLAN, QoS and link aggregation
• Rack-mountable form factor suitable for equipment racks
• Designed for continuous operation in network and server environments

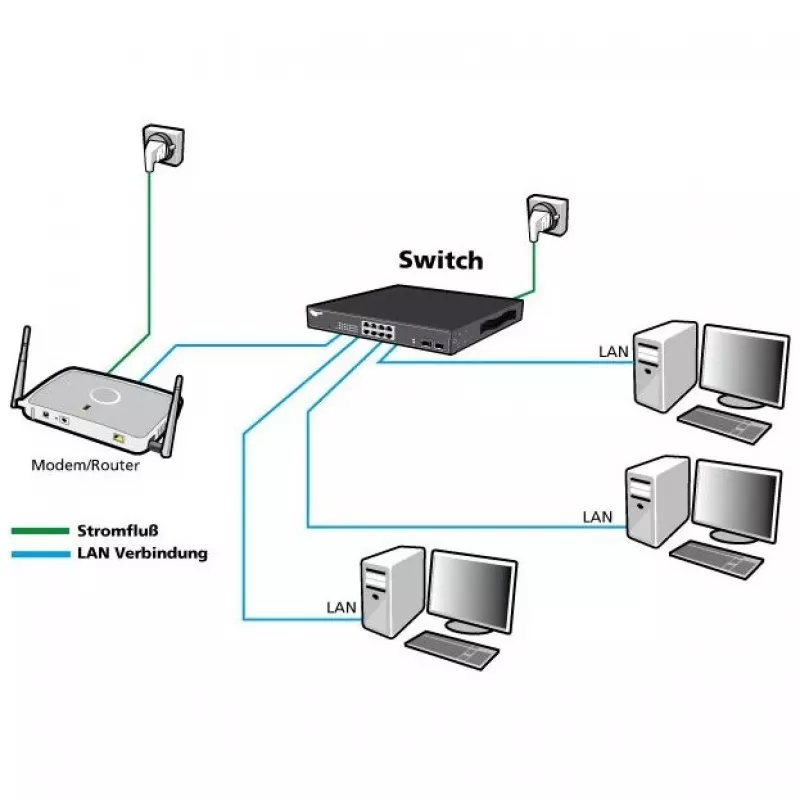

How to use

Install the switch in a standard equipment rack and connect the power source according to site electrical guidelines. Use the management interface to set IP address, administrator credentials and time settings before integrating into the network. Create VLANs, configure link aggregation for uplink redundancy or increased bandwidth, and apply QoS policies to prioritise voice, video or critical application traffic. Connect end devices and uplink to aggregation or core switches using the appropriate copper or 10G SFP+ modules where supported.

Recommendations

Place the switch in a temperature-controlled environment with adequate ventilation. Regularly back up the configuration after changes and apply firmware updates from the vendor to maintain security and stability. Monitor port statistics and error counters to detect cabling or hardware issues early and consider redundant uplinks or LACP groups to improve availability.
