Switch de red gestionado L2+ PLANET IGS-5225-16T4S

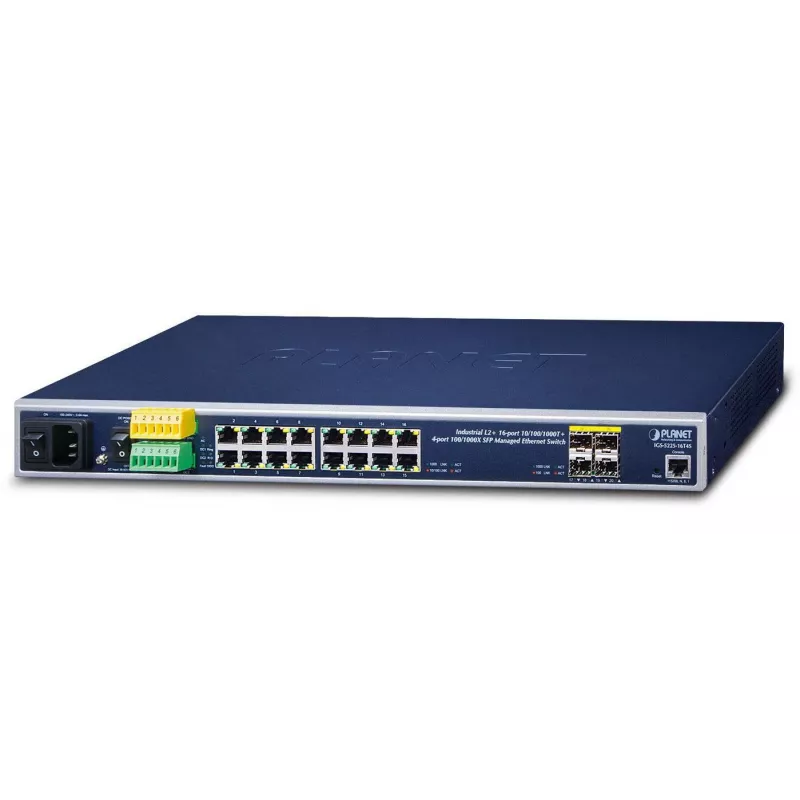

PLANET IGS-5225-16T4S is a managed Layer 2+ Gigabit Ethernet switch in a 1U rack case with 16 10/100/1000 Mbps RJ-45 ports and 4 SFP slots (100/1000X). It provides a 40 Gbps switching fabric, L2+ features and static Layer 3 routing, and is designed for industrial environments with operating temperatures from -40 to 75 °C. The switch supports both IPv4 and IPv6 dual stack and offers front-access wiring for easier installation and maintenance.

Advantages

The IGS-5225-16T4S combines non-blocking wire-speed throughput and industrial-grade temperature tolerance with dual AC/DC redundant power inputs (100–240 V AC and 36–60 V DC). It includes front-panel digital input/output for external alarms, a fault alarm mechanism, comprehensive L2–L4 security features (ACL, 802.1X, private VLAN, DHCP Snooping, IP Source Guard, DAI), and robust QoS and traffic-control capabilities. Management options include Web, CLI, SNMP (including SNMPv3), SSH and SSL. The four SFP slots support 100BASE-FX and 1000BASE-SX/LX SFP modules with DDM for SFP diagnostics.

Suitable for

• Industrial Ethernet networks and factory automation
• Telecom and service provider edge deployments
• Data center access and distribution switches
• Campus networks and multi-tenant units requiring VLAN routing and QoS

Key specifications

• Ports: 16 × 10/100/1000 Mbps RJ-45, 4 × SFP (100/1000X)
• Switching capacity: 40 Gbps
• Layer 3: static IPv4/IPv6 routing and VLAN routing
• MAC table: 8000 entries (product data)
• Operating temperature: -40 to 75 °C
• Power: 100–240 V AC and 36–60 V DC redundant inputs
• Management: Web GUI, CLI (Cisco-like), SNMP (including v3), SSH, SSL, Telnet, Console
• Security: L2–L4 ACL, 802.1X, private VLAN, DHCP Snooping, IP Source Guard, DAI
• SFP support: 100BASE-FX and 1000BASE-SX/LX; SFP-DDM supported

How to use

Install the IGS-5225-16T4S in a standard 1U rack space and connect power using the AC or DC inputs; for continuous operation configure both power sources as redundant. Insert appropriate SFP transceivers into the SFP slots to extend fiber links and connect RJ-45 devices to the Gigabit ports. Use the web GUI, console or Telnet/SSH to perform initial configuration: create VLANs, set up static routes, configure QoS and ACLs, and enable alarm/DIO settings. Monitor SFP status via DDM and use the fault alarm and digital I/O to integrate external monitoring systems.

Recommendations

Use redundant power connections in critical installations, choose SFP modules that match required distance and speed, enable SNMPv3/SSH/SSL for secure remote management, and configure VLAN routing and QoS to separate and prioritise traffic for VoIP, video and control systems.
