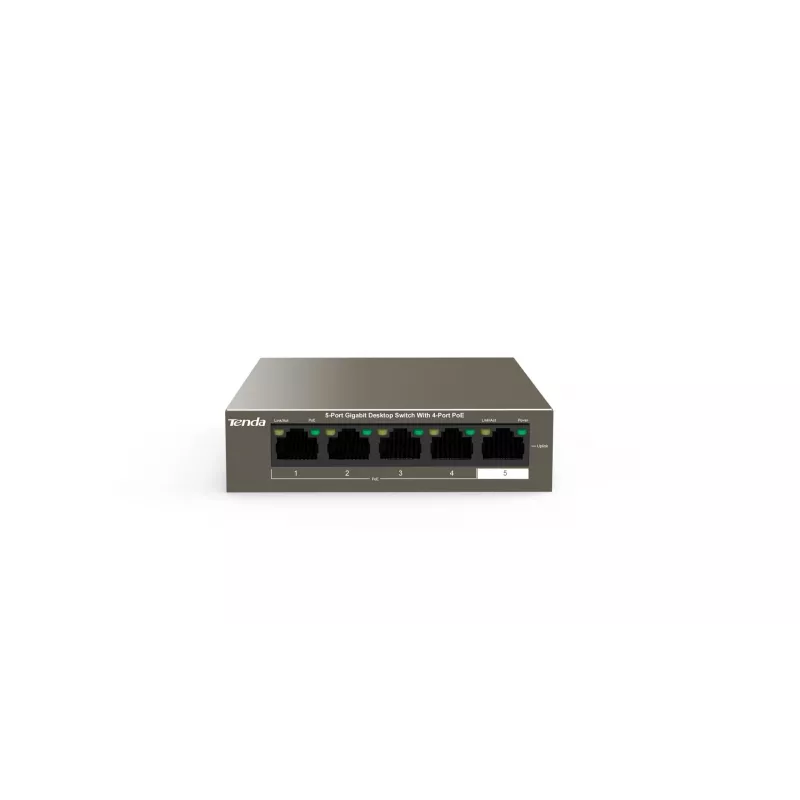

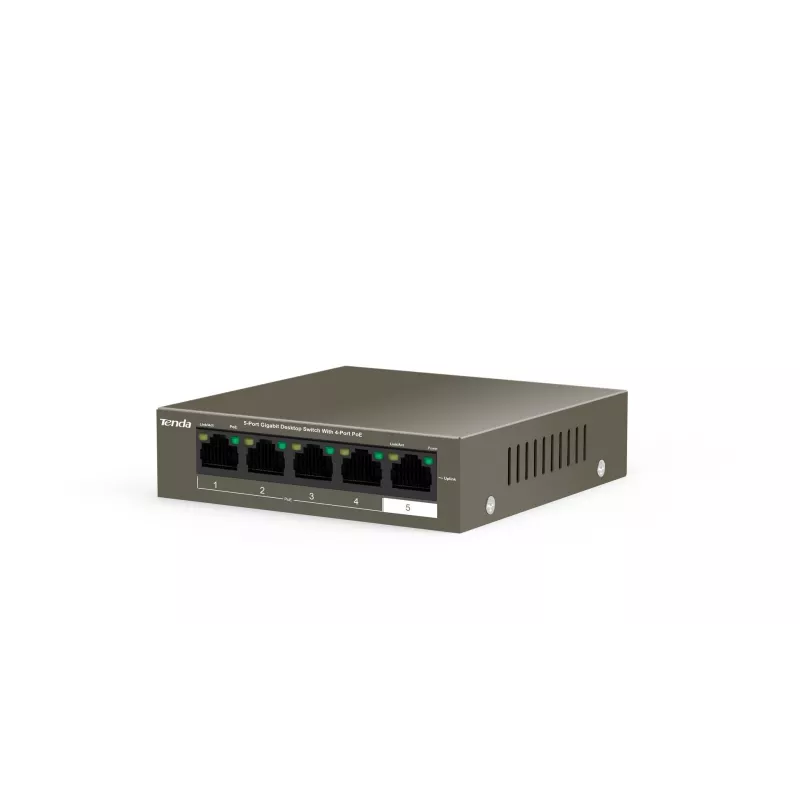

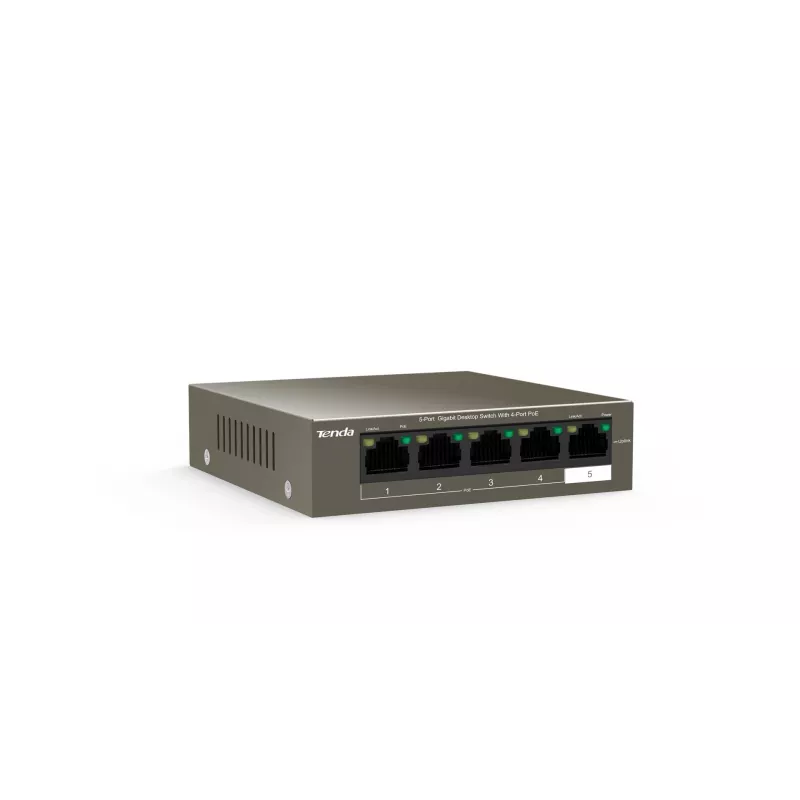

Switch de red TENDA TEG1105P-4-63W-EU, 5x Gigabit RJ-45, 4x PoE (57,8 W en total), 10 Gbit/s conmutación

TEG1105P-4-63W is a Tenda Gigabit PoE switch with five 10/100/1000 Mbps RJ45 ports. Ports 1–4 support IEEE 802.3af (up to 15.4 W per port) and IEEE 802.3at (up to 30 W per port) PoE standards, and the switch provides a total PoE budget of 58 W. The device supplies power and exchanges data to APs, IP cameras and IP phones over CAT5/CAT5e/CAT6 cables and includes basic VLAN-based isolation and simple management modes to reduce cabling cost for IP terminals.

Advantages

The switch delivers Gigabit connectivity and PoE power on the same ports, enabling both data transmission and device powering without additional power adapters. A one-key VLAN mode isolates ports 1–4 from each other while allowing communication with port 5, reducing broadcast domains and helping prevent DHCP spoofing. The unit incorporates two-level lightning protection on ports and power input rated up to 6 kV to improve resilience for installations where APs or cameras are mounted outdoors or at height. Physical DIP switches provide straightforward hardware control for port isolation.

Suitable for

• Small office or retail networks needing Gigabit Ethernet and PoE
• IP camera surveillance systems requiring centralised PoE power
• Wireless access point deployments where PoE simplifies installation
• Edge networks that benefit from simple VLAN isolation and lightning protection

Key specifications

• Ports: 5 × 10/100/1000 Mbps RJ45 (Ports 1–4 support PoE)
• PoE standards: IEEE 802.3af and IEEE 802.3at
• Maximum PoE budget: 58 W (up to 30 W per port)
• Switching capacity: 10 Gbit/s
• MAC address table: 2000 entries
• Input voltage: DC 51 V
• Lightning protection: up to 6 kV on ports and power
• Colour: Grey

How to use

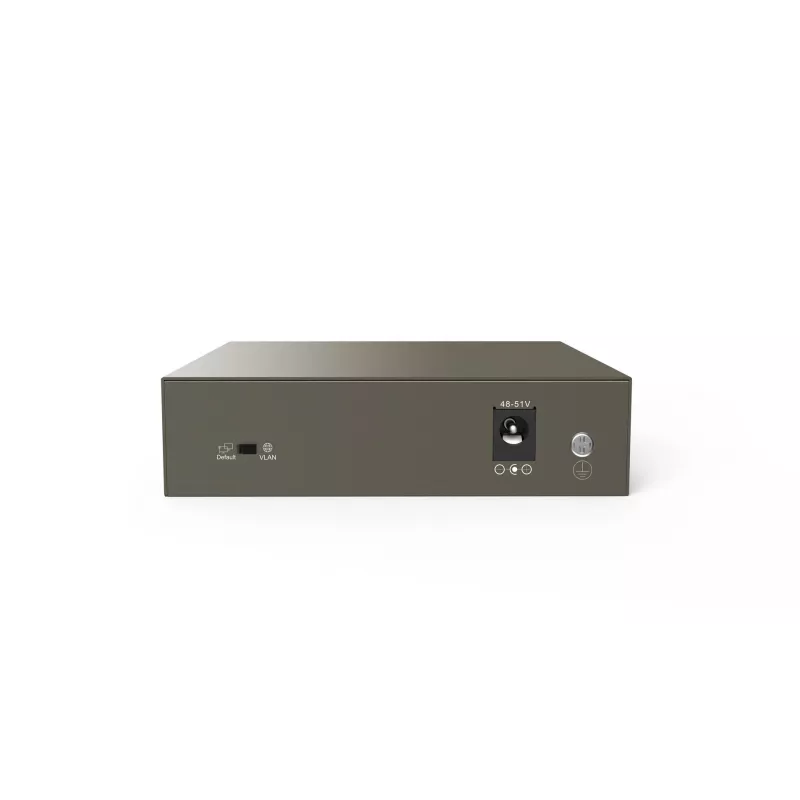

Install the switch on a flat surface or in a suitable enclosure and connect its DC 51 V power supply. Use CAT5/5e/6 Ethernet cables to connect PoE-capable devices to ports 1–4 and non-PoE devices to other ports as required. Enable the One-Key VLAN mode via the hardware DIP switch to isolate ports 1–4 from each other while allowing connectivity to port 5. The switch operates without complex configuration for basic deployments, delivering power and data over the same cable to compatible devices.

Recommendations

For reliable operation, ensure the total PoE power demand of connected devices does not exceed the 58 W budget. Place the switch in a sheltered or grounded location when used outdoors or in exposed installations, and use appropriate surge protection in addition to the built-in 6 kV protection for mission-critical systems.
