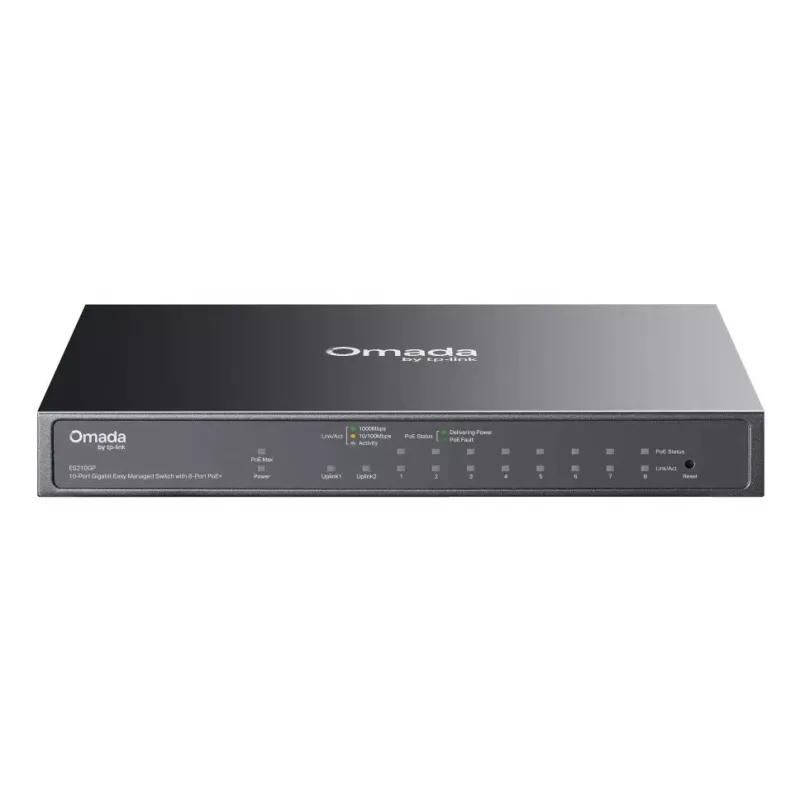

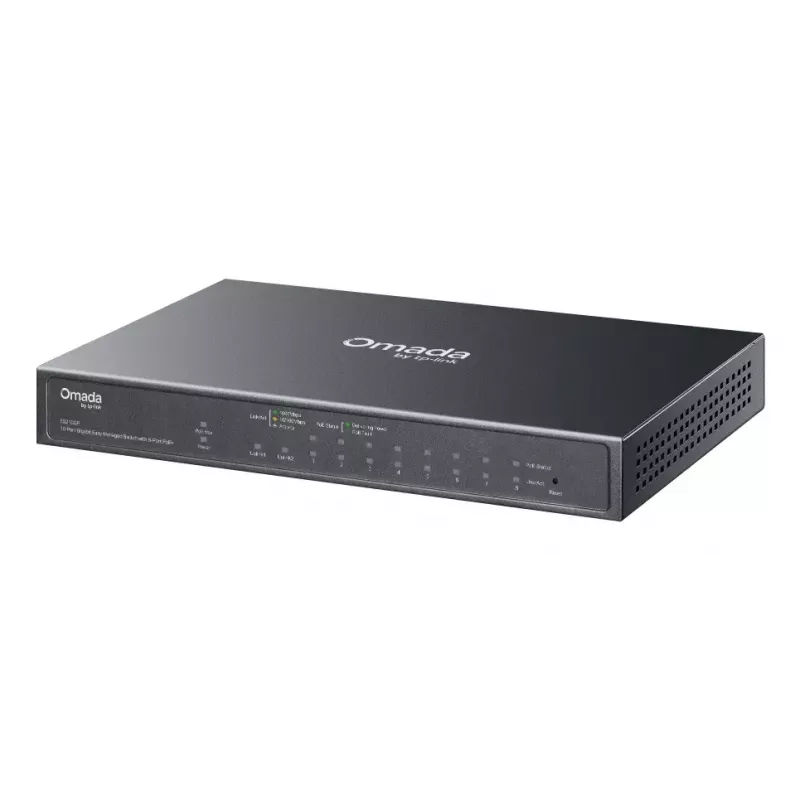

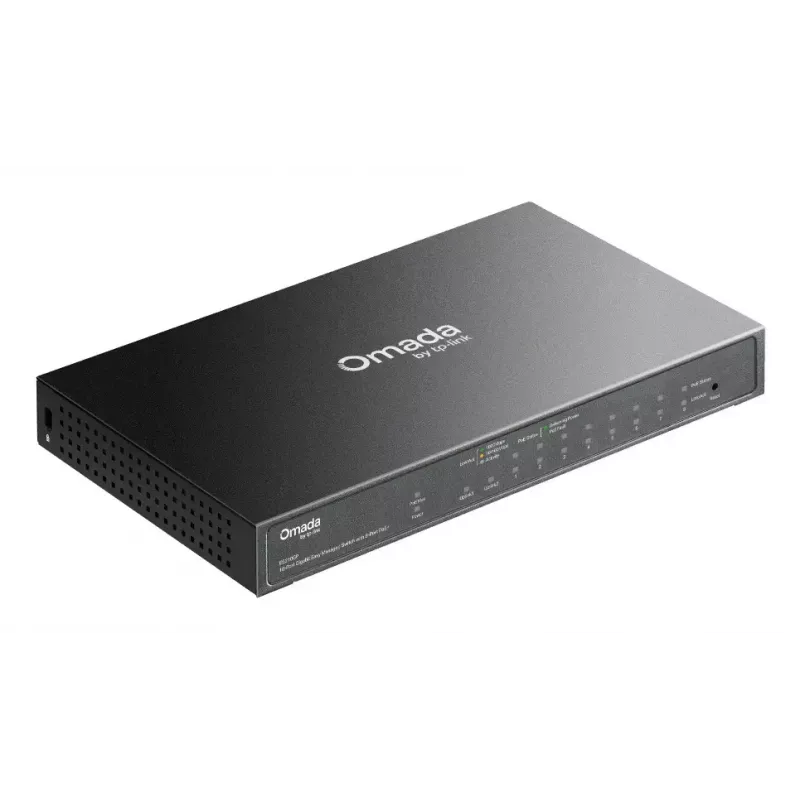

Switch de red TP-Link Omada ES210GP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) para carril DIN Negro

TP‑LINK Omada ES210GP is a managed Layer‑2 Gigabit Ethernet PoE switch with ten 10/100/1000 RJ‑45 ports and PoE support compliant with IEEE 802.3af/at/bt. The switch provides a 63 W total PoE budget with up to 30 W per PoE port, an 8,000‑entry MAC address table and 20 Gbit/s switching capacity. Its compact metal housing supports desktop, wall or DIN‑rail mounting and accepts 53 V DC input, making it suitable for small to medium surveillance and network deployments.

Advantages

The ES210GP combines PoE power and managed Layer‑2 features in a fanless, durable metal enclosure for silent, continuous operation. It supports centralized cloud management via the Omada web portal or mobile app, offers automatic loop prevention, VLAN and IGMP snooping for traffic control, and QoS and port isolation for reliable device connectivity. A Gigabit SFP/RJ45 combo port expands uplink flexibility while the extended PoE reach and remote camera reboot capability improve surveillance maintenance.

Suitable for

• Small to medium IP camera surveillance systems
• VoIP phones and wired office networks requiring PoE
• Wireless access point deployments with centralized management
• Industrial or rack-mounted installations using DIN‑rail or wall/desktop mounting

Key specifications

• Port count: 10 Gigabit RJ‑45 ports (including 8 PoE+ ports)
• PoE standard compatibility: IEEE 802.3af, 802.3at, 802.3bt
• Total PoE power budget: 63 W; up to 30 W per PoE port
• Additional uplink: 1 Gigabit RJ‑45 + 1 Gigabit SFP/RJ45 combo
• Switching capacity: 20 Gbit/s
• MAC address table size: 8,000 entries
• Power input: 53 V DC

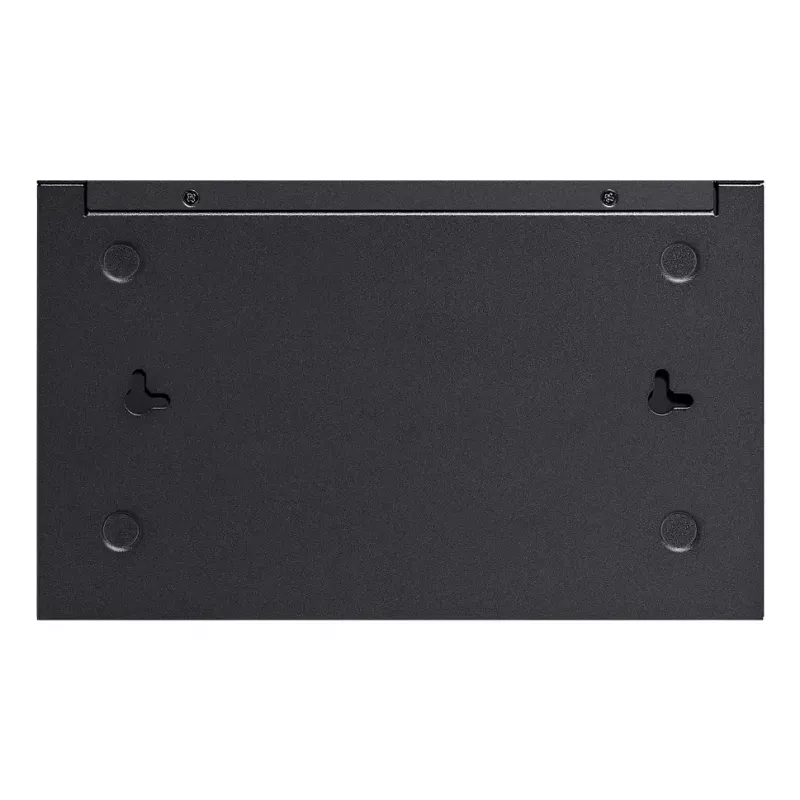

• Form factor: Metal housing; desktop, wall or DIN‑rail mountable
• Management: Managed Layer‑2, web‑based/Omada cloud and app management
• Operation: Fanless design for silent operation

How to use

Connect powered devices (IP cameras, access points, VoIP phones) to the PoE RJ‑45 ports and attach the uplink to your network via the Gigabit RJ‑45 or SFP/RJ45 combo port. Apply 53 V DC power to the switch according to the product manual and mount the unit on a desktop, wall or DIN rail as required. Use the web management interface or the Omada app to configure VLANs, QoS, port isolation and other Layer‑2 settings, or operate in plug‑and‑play mode for basic connectivity.

Recommendations

For reliable PoE delivery, plan connected device power consumption so the combined draw does not exceed the 63 W budget; prioritize high‑power devices or configure PoE schedules. Ensure adequate ventilation despite the fanless design and follow installation instructions when mounting on DIN‑rail in industrial environments.
