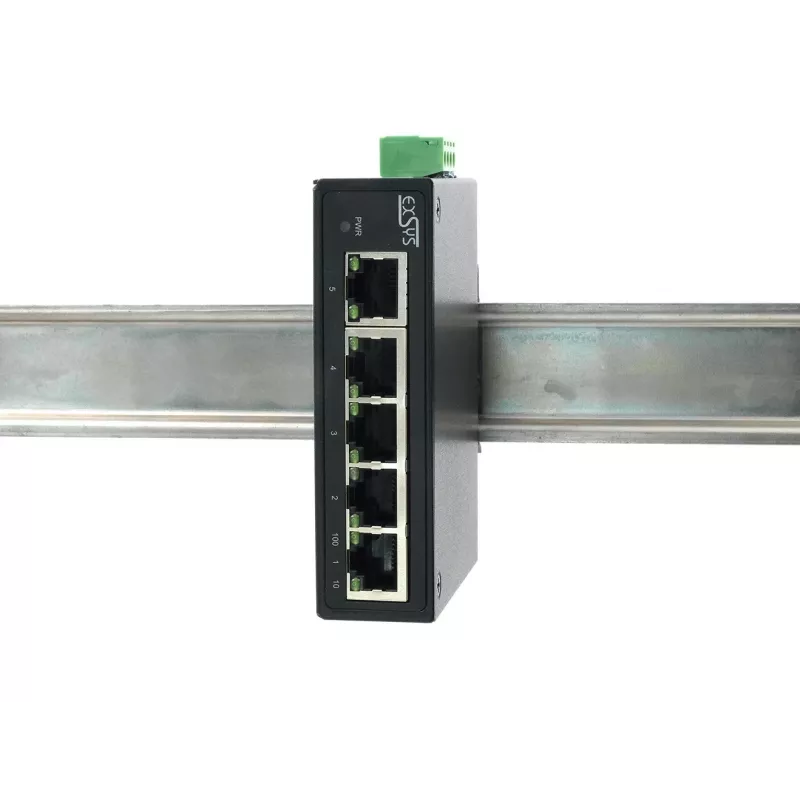

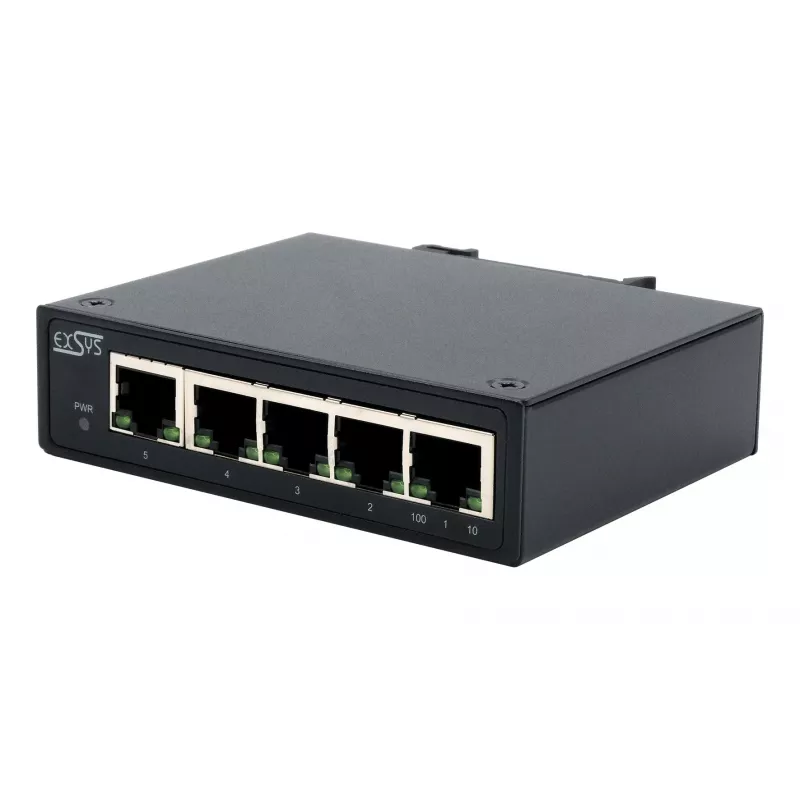

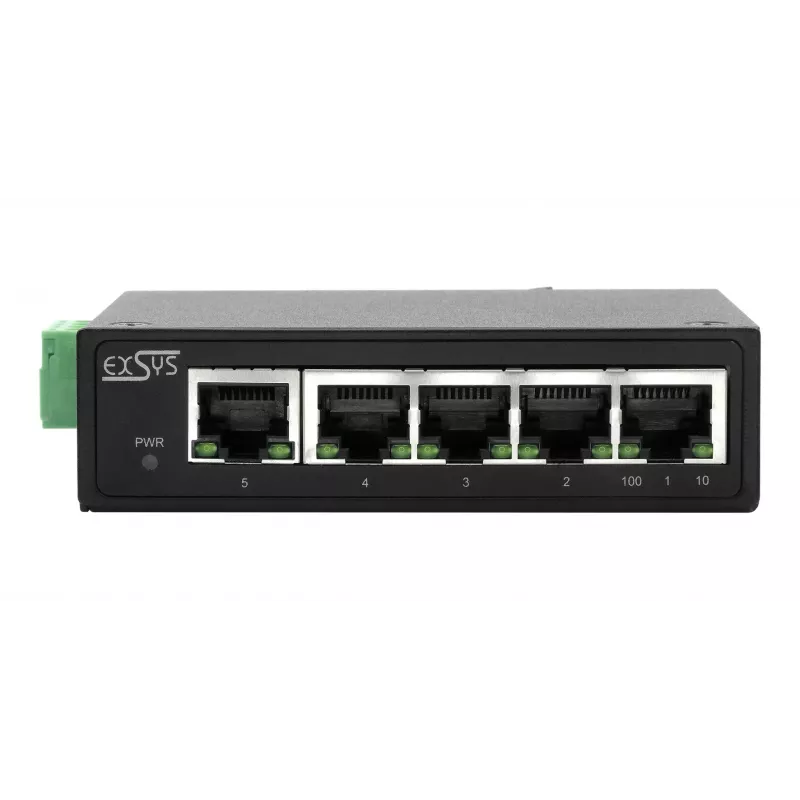

Switch Ethernet industrial EXSYS de 5 puertos, 10/100 Mbps, carril DIN, -40° a +75°C EX-6200-T

In a cold storage facility or a dusty factory floor, the EXSYS 5-Port Industrial Ethernet Switch keeps your network running where office-grade hardware fails. This unmanaged Fast Ethernet switch provides five RJ45 ports with auto-negotiation and auto MDI/MDI-X, so you can connect PLCs, IP cameras, sensors, and other devices without configuration. Its rugged aluminum housing withstands temperatures from -40°C to +75°C and mounts easily on a DIN rail or wall.

Key specifications

• 5 x 10/100 Mbps RJ45 ports
• Unmanaged, store-and-forward switching
• Supports IEEE 802.3, 802.3u, 802.3x
• 2K MAC address table, jumbo frame up to 1536 bytes
• Redundant 12-48V DC power input via terminal block

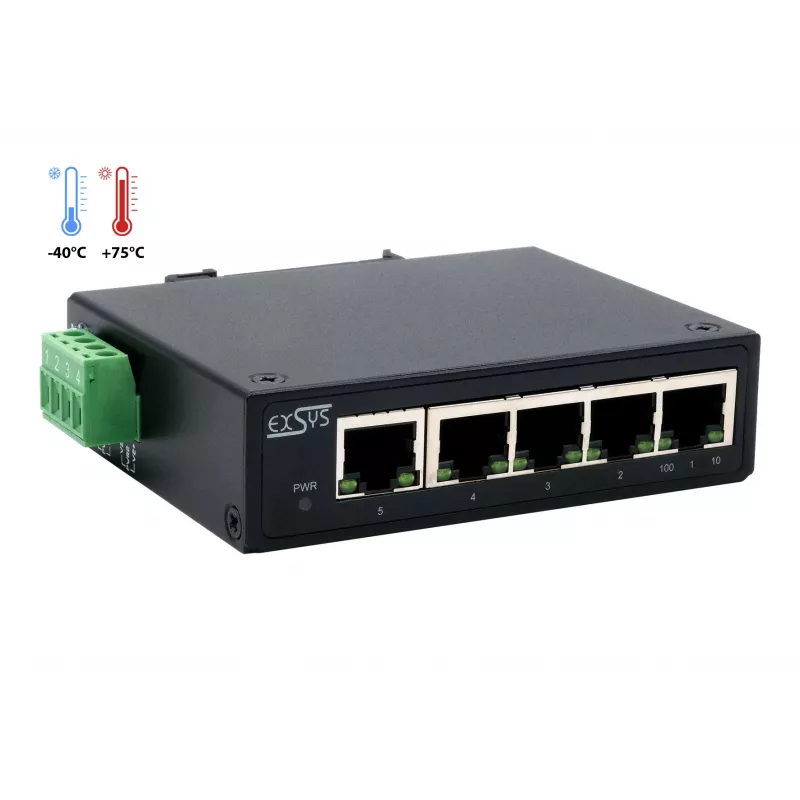

• Operating temperature: -40°C to +75°C
• Aluminum housing, IP30 rated
• ESD and surge protection: 6KV DC
• DIN-rail and wall-mount options

Why choose it

This switch is built for harsh industrial environments. It delivers reliable connectivity without the complexity of managed switches, and its wide temperature range and redundant power input ensure uptime in demanding conditions.

Ideal use cases

• Factory automation and machine networking
• Outdoor or unheated installations
• Connecting IP cameras in extreme climates
• Building automation and access control

Good to know

The switch supports full and half duplex modes and flow control to prevent packet loss. It complies with CE, FCC, RoHS, EN 61000-6-2, and EN 55032 standards.
