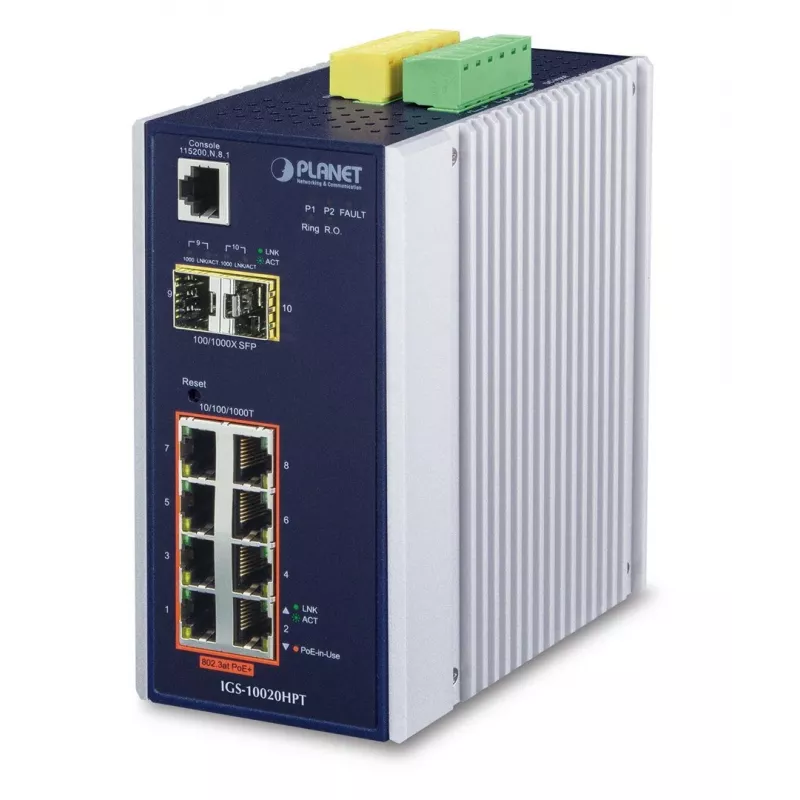

Switch Gigabit Ethernet gestionado L2+ PLANET IGS-10020HPT

The PLANET IGS-10020HPT is a managed L2+ Gigabit Ethernet switch with eight 10/100/1000 Mbps RJ-45 ports that provide IEEE 802.3at PoE+ power delivery and data over a single Cat5E/6 cable. Housed in an IP30 metal enclosure, the switch is built for industrial environments with wide operating temperatures (-40 to 75 °C), DIN-rail or wall mounting options, and surge and electromagnetic interference resistance. It supports redundant ring recovery, Layer 2 switching features and IPv4/IPv6 software VLAN routing to enable secure, flexible network deployments for surveillance, transportation and factory automation.

Advantages

The IGS-10020HPT combines high PoE capacity (up to 36 W per port with a total 240 W budget) with industrial-grade mechanical and electrical protection, fast fault recovery (sub-50 ms in ring topologies), and advanced management interfaces (Web, console, Telnet, SNMPv3). It includes dual mini-GBIC SFP slots for fiber extension, SFP-DDM diagnostics, Modbus TCP support for SCADA integration, and a set of PoE management functions — PD Alive Check, scheduled power recycling, PoE scheduling and event alerts — to reduce maintenance effort and improve uptime.

Suitable for

• IP video surveillance systems and security camera deployments
• In-vehicle networking and intelligent transport systems (E‑Mark compliant)
• Industrial automation and factory floor networks integrated with SCADA/HMI via Modbus TCP
• Wireless access point backhaul and public service network equipment

Key specifications

• Model: PLANET IGS-10020HPT (MPN: IGS-10020HPT, EAN: 4711213689116)
• Ports: 8 × Gigabit RJ-45 (10/100/1000 Mbps) with IEEE 802.3at PoE+
• PoE power: up to 36 W per port, total PoE budget 240 W
• Switching capacity: 26 Gbit/s; MAC table: 8,000 entries
• SFP: 2 × mini-GBIC slots (100BASE-FX / 1000BASE-SX/LX)
• Managed features: VLAN (802.1Q, Q-in-Q), MSTP (802.1s), G.8032 ERPS, L2–L4 QoS, ACL, 802.1x
• Protocols: IPv4/IPv6 software VLAN routing, SNMPv3, Modbus TCP, IEEE 1588 support
• Mounting and housing: IP30 metal case; DIN-rail or wall mount; operating temp −40 to 75 °C
• Weight and color: 1.684 kg; white/black

How to use

Install the switch on a DIN rail or mount it to a wall in a suitable industrial cabinet. Connect the DC power source (12–48 V DC) to the redundant power inputs; the internal boost converts to the required 52 V for IEEE 802.3at PoE+ without special external supplies. Plug Cat5E/6 cables into the RJ-45 ports to provide both data and PoE to cameras, APs or other PDs. Use the web GUI, console or SNMPv3 for initial configuration: set VLANs, enable PoE schedule or PD Alive Check, configure Modbus TCP integration, and add SFP transceivers in mini-GBIC slots when fiber links are required.

Recommendations

For reliable operation, plan PoE power allocation to avoid exceeding the 240 W budget, enable PD Alive Check and scheduled power recycling for critical IP cameras or APs, and use redundant ring or MSTP for fast failover. Use SFP-DDM to monitor fiber transceiver status and enable SNMPv3/SSH for secure remote management.
