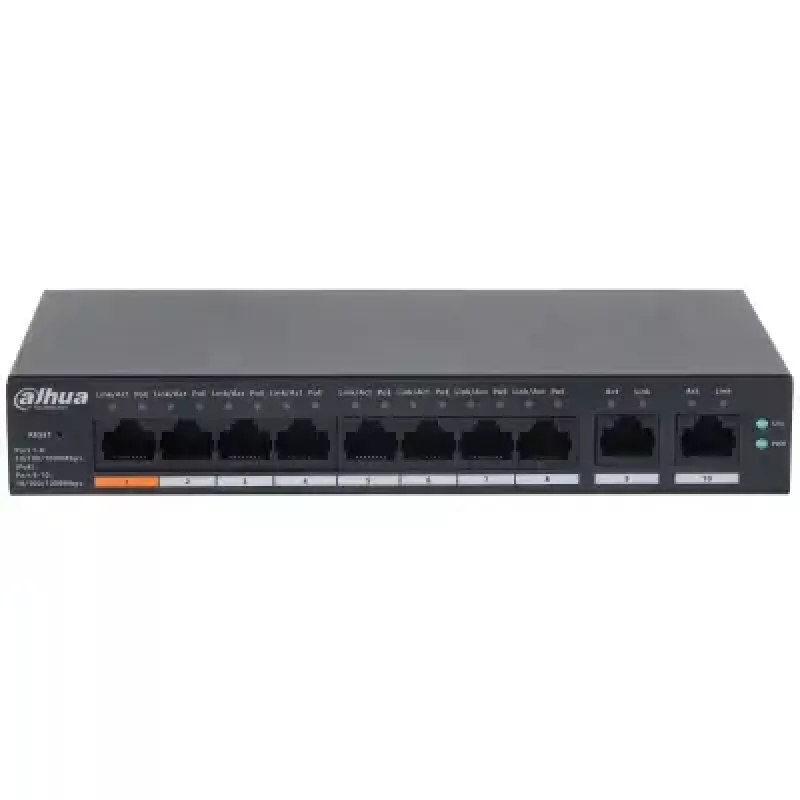

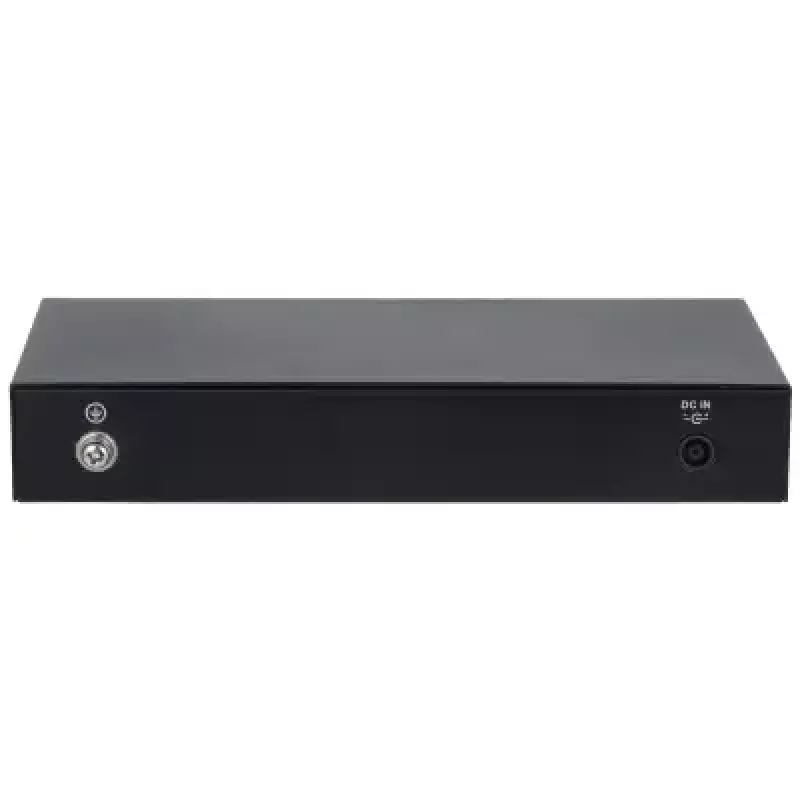

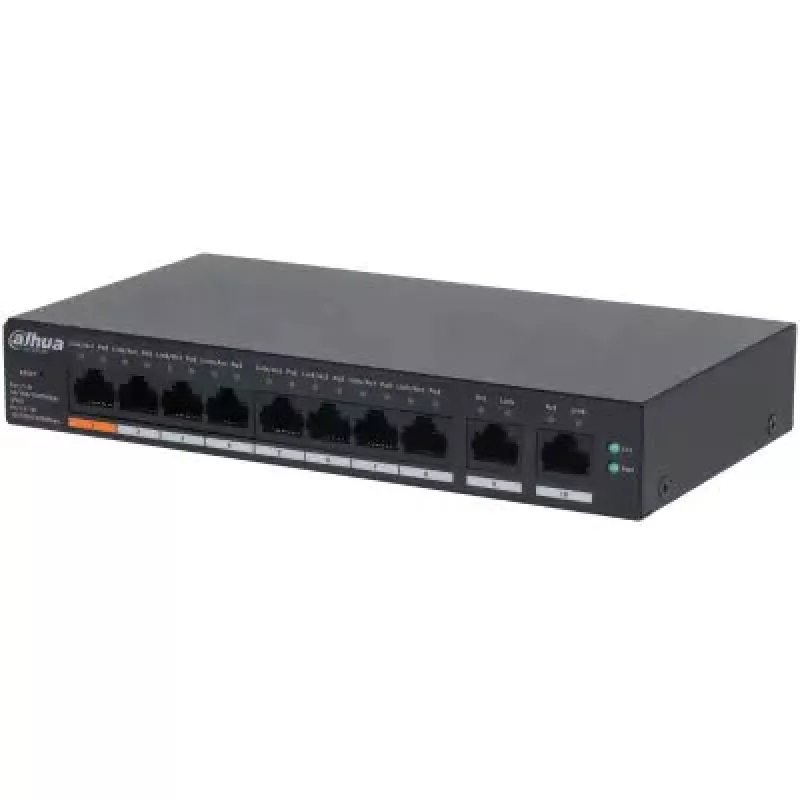

Switch Gigabit PoE gestionado L2 DAHUA CS4010-8GT-60 — 10x Gigabit (10/100/1000), 20 Gbit/s, 8000 MAC, montaje en sobremesa/pared, negro

DAHUA CS4010-8GT-60 is a managed Layer‑2 Gigabit PoE switch with ten RJ‑45 Gigabit ports (10/100/1000) designed for compact desktop or wall‑mount installations. The unit provides a switching capacity of 20 Gbit/s and an 8000‑entry MAC address table. Compliant with IEEE 802.3 family standards, including 802.3af/at/bt, the switch supports Power over Ethernet to power cameras and other devices while offering Smart Managed L2 features and optional cloud management via the DoLynk Care platform.

Advantages

The switch combines managed L2 functions with PoE power delivery, enabling centralized network control and device power over a single cable. Its full metal housing improves heat dissipation and durability, and the supported operating temperature range expands deployment options. Built‑in protections against overvoltage, overcurrent, static electricity and lightning pulses increase reliability in electrically noisy environments. The device supports topology visualization and maintenance functions for easier operation and troubleshooting.

Suitable for

• Small and medium business LANs (offices, branches)
• CCTV and access control deployments requiring PoE cameras and devices
• Retail and hospitality locations (supermarkets, restaurants, hotels)
• Edge network segments where compact, wall or desktop mounting is needed

Key specifications

• Switch type: Managed Layer‑2
• Ports: 10 x RJ‑45 Gigabit Ethernet (10/100/1000)
• Switching capacity: 20 Gbit/s
• MAC address table: 8000 entries
• PoE standards supported: IEEE 802.3af, 802.3at, 802.3bt; Hi‑PoE and Intelligent PoE management
• Powered PoE reach: support for extended PoE distances up to 250 meters on compatible ports
• Physical design: full metal enclosure, desktop or wall‑mountable
• Operating temperature range: -10°C to 55°C
• EMC and protection: overvoltage, overcurrent, ESD and lightning/pulse protection
• Form factor color: black

How to use

Install the DAHUA CS4010-8GT-60 on a flat surface or attach it to a wall using appropriate mounting hardware. Connect each network device to a Gigabit RJ‑45 port and configure PoE settings through the Web‑based L2 management interface or via the DoLynk Care cloud platform if remote management is required. Use the management interface to set VLANs, link aggregation and STP where supported, and to monitor MAC table entries and traffic statistics. Ensure adequate ventilation around the metal enclosure and observe the specified operating temperature range.

Recommendations

For stable PoE-powered deployments, plan power budgets per port before connecting high‑power devices; note that designated high‑power ports supply up to 60 W or 90 W depending on model/port. When extending PoE to longer distances, verify connected devices support operation at extended cable lengths and check overall cable quality. Regularly update firmware through the management interface or DoLynk Care to maintain compatibility and security.
