Switch industrial LevelOne 5 puertos Fast Ethernet, carril DIN, 1 x fibra multimodo SC, -20 °C a 70 °C

Switch industrial LevelOne 5 puertos Fast Ethernet, carril DIN, 1 x fibra multimodo SC, -20 °C a 70 °C
Switch industrial LevelOne 5 puertos Fast Ethernet, carril DIN, 1 x fibra multimodo SC, -20 °C a 70 °C
230,50 €

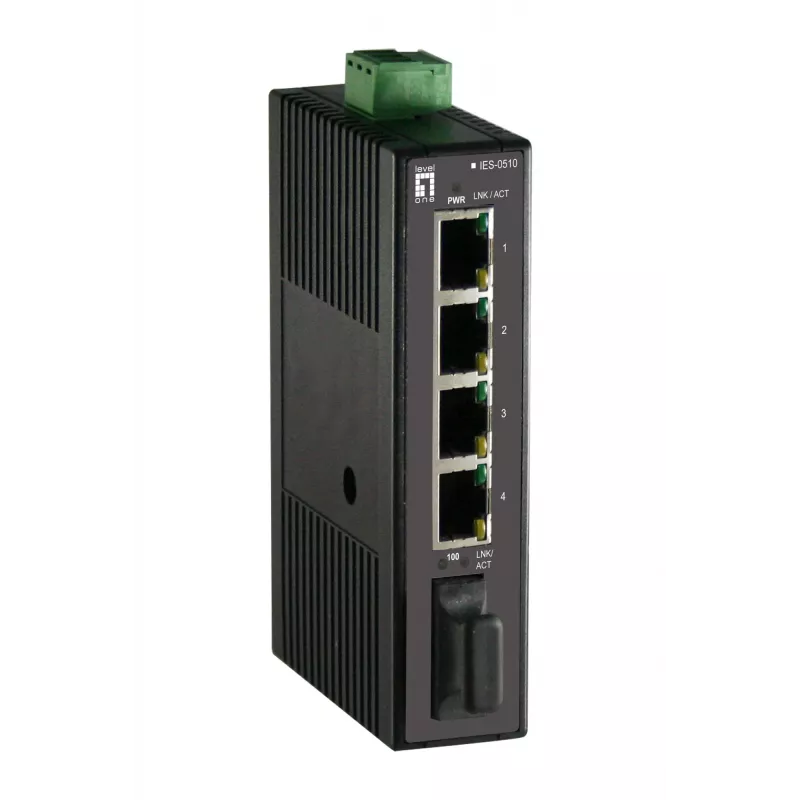

LevelOne IES-0510 Industry Ethernet Switch provides 4 ports of 10/100Base-TX Ethernet plus 1 port 100FX Multimode SC fiber to enable high speed network at mission-critical environment. This device is designed to be mounted on an industry standard DIN-rail, plus the clearly visible status LEDs provid... Leer más
Stock 10 Código 111270 Marca LEVELONE Modelo IES-0510 Garantía 2 años

Envíos y devoluciones

Entrega estimada Viernes, Octubre 23
Te mantendremos informado a través de nuestro sistema de seguimiento detallado
Opciones de pago
Tarjeta bancariaVisaMastercardPayPalApple PayGoogle PayTransferencia bancaria
LevelOne IES-0510 Industry Ethernet Switch provides 4 ports of 10/100Base-TX Ethernet plus 1 port 100FX Multimode SC fiber to enable high speed network at mission-critical environment. This device is designed to be mounted on an industry standard DIN-rail, plus the clearly visible status LEDs provide simple monitoring of port link activity.

Cost Effective
This device operates under -10 to 60 Celsius (-14 to 140 Fahrenheit) temperature that offers optimal suitability for industrial applications at low cost while maintaining all components built to withstand harsh environment applications without compromise reliability and stability.

Safety
With UL60950 standard complied that gives basic protection against electric shock, fire spread from within, ignition and burning, current circuit hazardous under normal and fault condition. As well as set of compliances to meet many EMC, isolation, vibration and shock standards.

Plug & Play
This device is designed for the demanding industrial environments at businesses in need of instant connectivity with no setup or configure required, truly plug and play.

LevelOne 5-Port Fast Ethernet Industrial Switch, DIN-Rail, 1 x SC Multi-Mode Fiber, -20°C to 70°C. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 2048 entries. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x

Aspectos destacados
  • Unmanaged
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 4
  • 10BASE-T, 100BASE-TX
  • MAC address table: 2048 entries
Especificaciones
Almacenamiento y reenvío
Yes
Altura
110 mm
Altura del embalaje
221 mm
Ancho
26 mm
Ancho del embalaje
180 mm
Auto MDI/MDI-X
Yes
Autonegociación
Yes
Certificación
ISO9001 FCC Part 15 EN61000-6-4 EN55022 EN61000-3-2 EN61000-3-3 EN61000-6-2 EN61000-4-2 EN61000-4-3 EN61000-4-4 EN61000-4-5 EN61000-4-6 EN61000-4-8 IEC60068-2-6 Fc IEC60068-2-27 Ea IEC60068-2-32 Ed
Código de protección internacional (IP)
IP30
Código del Sistema Armonizado (HS)
85176990
Color del producto
Black
Compatibilidad con calidad de servicio (QoS)
Yes
Conector de fibra óptica
SC
Consumo de energía (máx.)
4.3 W
Dúplex completo
Yes
Estándares de red
IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Guía de inicio rápido
Yes
Humedad relativa de funcionamiento (H-H)
5 - 95%
Indicadores LED
Activity, Link, Speed
Material de la carcasa
Plastic
Memoria búfer de paquetes
0.384 MB
Número de módulos SFP instalados
0
Número de módulos SFP+ instalados
0
Número de puertos Ethernet RJ-45 de conmutación básica
4
País de origen
Taiwan
Peso
200 g
Peso del embalaje
460 g
Power over Ethernet (PoE)
No
Profundidad
70 mm
Profundidad del embalaje
79 mm
Seguridad
UL60950-1
Tabla de direcciones MAC
2048 entries
Tasa de reenvío de paquetes (10 Mbit/s)
14880 pps
Tasa de reenvío de paquetes (100 Mbit/s)
148810 pps
Tecnología de cableado Ethernet de cobre
10BASE-T, 100BASE-TX
Tecnología de cableado Ethernet de fibra
100BASE-FX
Temperatura de almacenamiento (T-T)
-25 - 85 °C
Temperatura de funcionamiento (T-T)
-10 - 60 °C
Tensión de entrada
12 - 48 V
Tiempo medio entre fallos (MTBF)
1071085 h
Tipo de embalaje
Box
Tipo de fibra
Multi-mode
Tipo de puertos Ethernet RJ-45 de conmutación básica
Fast Ethernet (10/100)
Tipo de switch
Unmanaged
