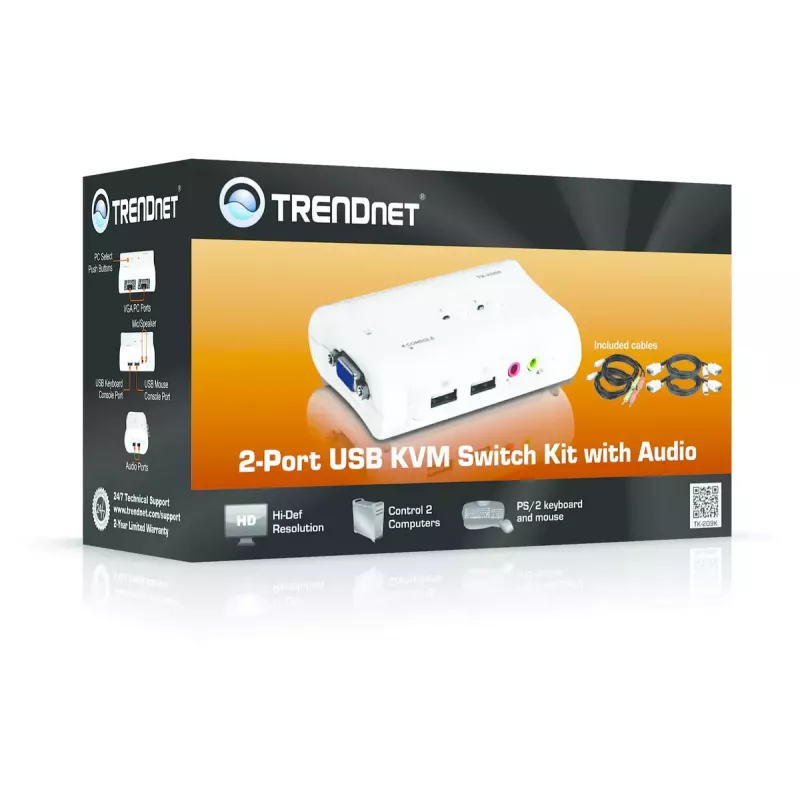

Switch KVM Trendnet TK-209K

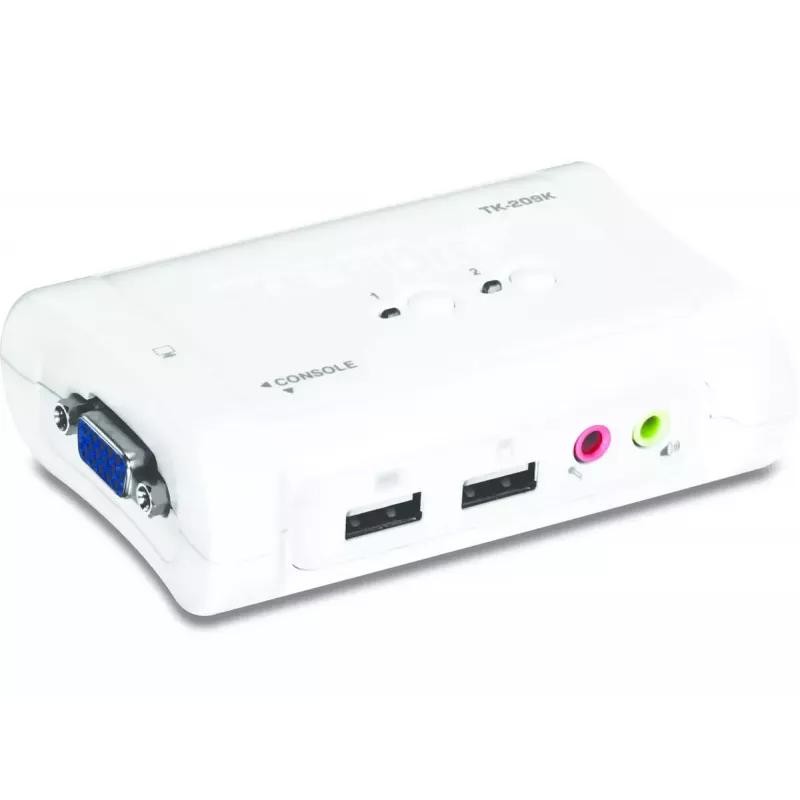

The Trendnet TK-209K is a 2-port USB audio KVM switch that lets you control two computers using a single keyboard, mouse, monitor, microphone and set of speakers. The compact device supports VGA video up to 2048 x 1536, comes with separate KVM cables (VGA, audio and microphone) and is powered via USB. It supports multiple platforms including Windows, Linux and Mac OS and offers plug-and-play hot-plug capability for quick setup.

Advantages

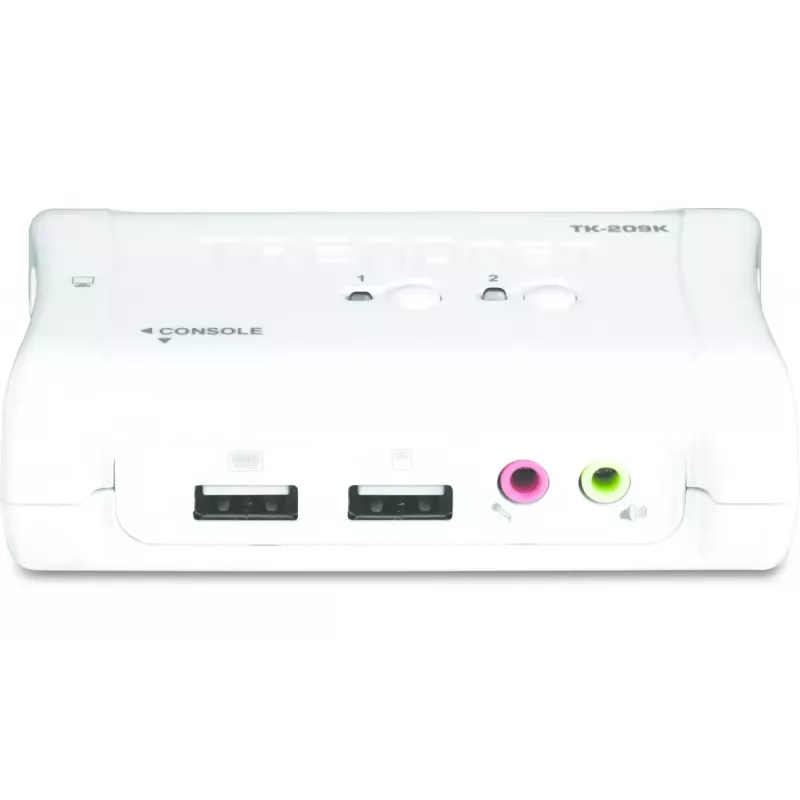

The TK-209K combines keyboard, video, mouse and audio switching in one unit, eliminating the need to swap cables between two PCs. It supports high-resolution VGA output, includes dedicated audio and microphone ports, and provides multiple switching methods: front-panel push button, configurable hot-key (Windows only) and auto-scan with LED display. The unit is USB-powered and compatible with common USB mice, including IntelliMouse and optical models.

Suitable for

• Small offices or home workstations that need to control two computers with a single set of peripherals
• Multimedia setups requiring shared speakers and a microphone between two PCs
• Environments that need simple switching without additional software or power adapters

Key specifications

• Model: TRENDnet TK-209K

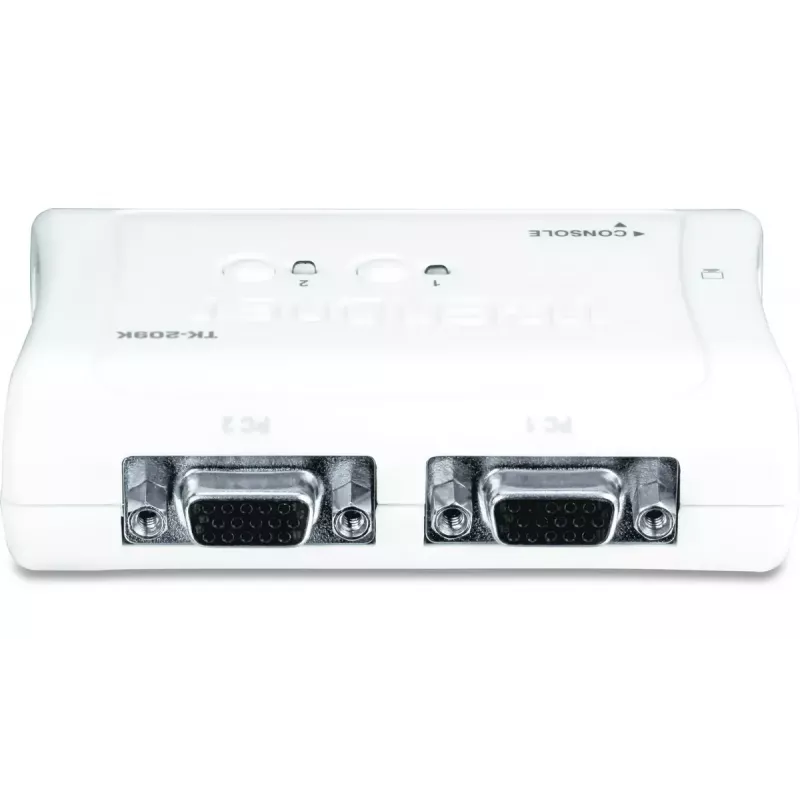

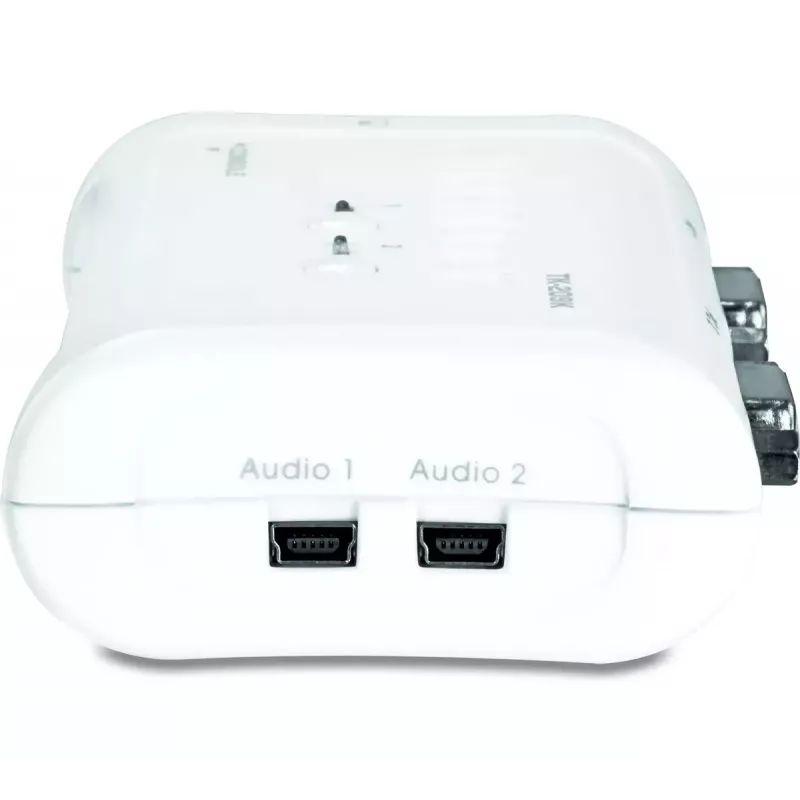

• Ports: 2 computers via VGA, USB keyboard and USB mouse; 1 set microphone and speaker ports
• Video: VGA, up to 2048 x 1536 resolution
• Compatibility: Windows 98(SE)/ME/2000/XP/2003 Server, Linux, Mac OS; multi-platform support for PCs and Macintosh
• Dimensions: 98 x 70 x 28 mm; Weight: 0.1 kg
• Power: USB interface power
• Cables: Includes 2 sets of VGA, audio and microphone cables (1.2 m length)
• Certifications: CE, FCC

How to use

Connect the TK-209K to each computer using the supplied VGA, audio and microphone cables and plug in the USB connectors for keyboard and mouse. Connect your monitor, speakers and microphone to the switch’s console ports. Power is supplied via the host USB connection. Use the front-panel button, the configurable hot-key (Windows only) or the auto-scan feature to switch control between computers. The LED display indicates the active PC.

Recommendations

For best video quality, use high-quality VGA cables and set your monitor to a supported resolution up to 2048 x 1536. If using specialized keyboard hot-key configuration, ensure the host is running a supported Windows version to enable user-definable hot-key functions.
