Switch no gestionado Digitus 8 puertos 10/100 Mbps Fast Ethernet carcasa metálica

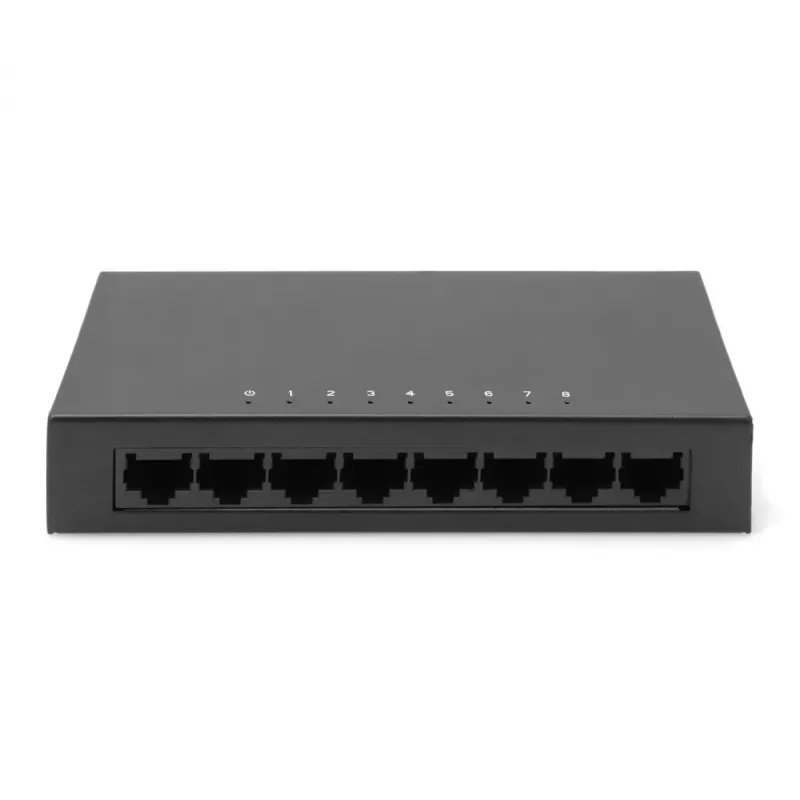

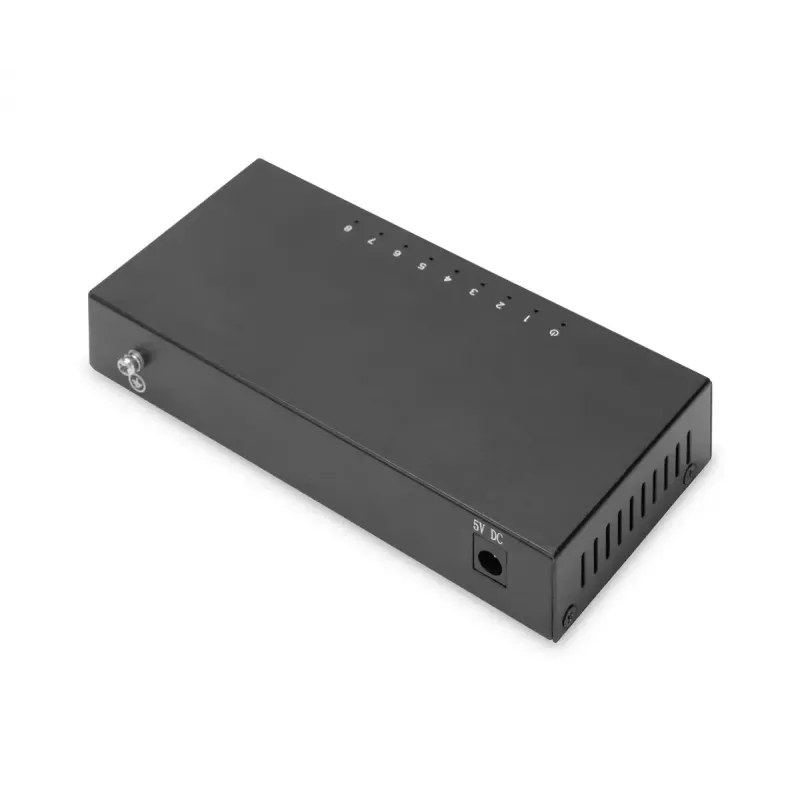

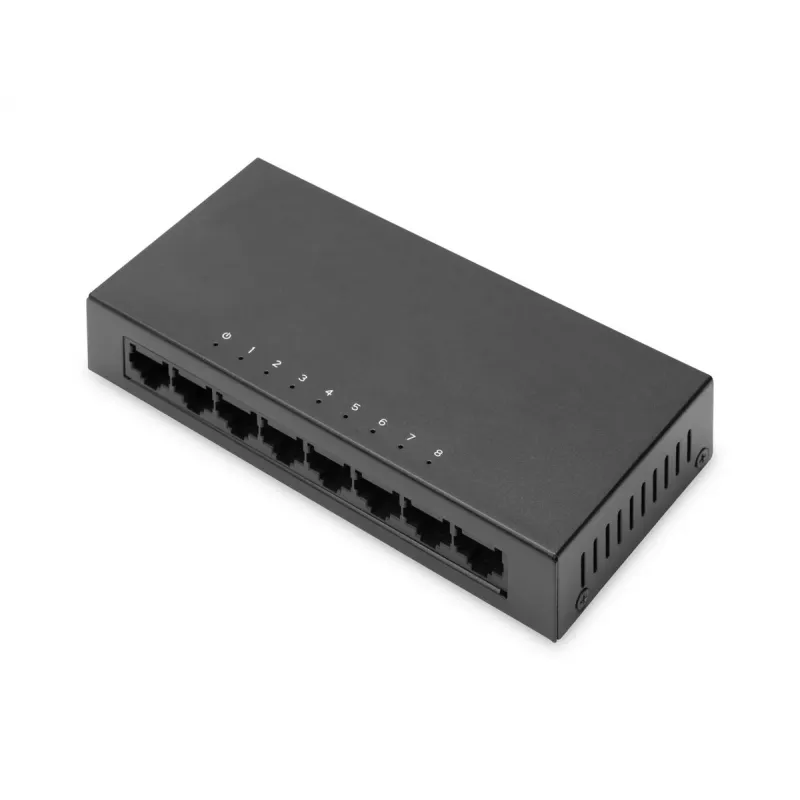

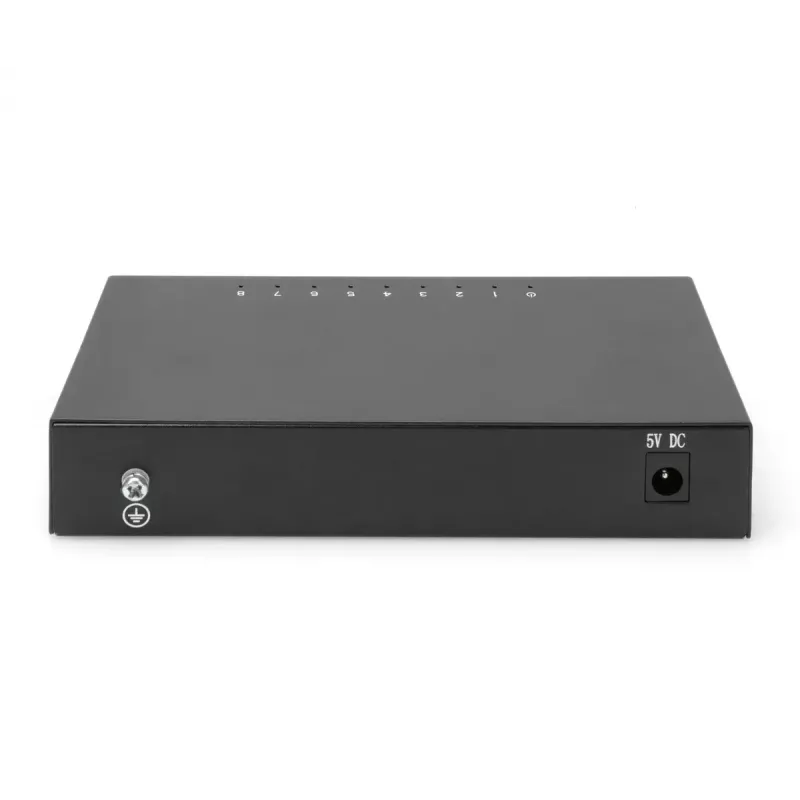

The DIGITUS Unmanaged Switch DN-80069 is an 8-port Fast Ethernet switch providing 10/100 Mbps on each RJ45 port. Housed in a durable metal case and powered by an external 5 V DC adapter, the switch supports standard IEEE networking protocols and offers plug-and-play operation without configuration. It can be placed on a desk or mounted on a wall and is suitable for expanding small home or office networks.

Advantages

This unmanaged switch delivers eight 10/100 Mbps RJ45 ports with Auto-Negotiation and Auto MDI/MDIX, full-duplex flow control (IEEE 802.3x) and store-and-forward switching. The metal housing increases durability, while the external power supply eliminates the need for an internal fan. LED indicators show power and link/activity status, and the device requires no configuration for basic network expansion.

Suitable for (tasks / use cases)

• Expanding wired networks in small offices or home environments
• Connecting printers, NAS devices, IP cameras, and desktop PCs
• Simple plug-and-play network setups where no managed features are required
• Wall-mounted or desktop deployments in constrained spaces

Key specifications

• Model: DIGITUS DN-80069
• Ports: 8 x RJ45 10/100 Mbps
• Switch type: Unmanaged Fast Ethernet
• Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3az
• MAC address table: 1000 entries (specified by manufacturer)
• Operation mode: Store-and-forward; Auto-negotiation; Auto MDI/MDIX
• Power input: 5 V DC (external power supply)
• Product colour: Black; Housing: Metal
• Weight: 0.635 kg

How to use

Place the switch on a flat surface or mount it on a wall using appropriate fittings. Connect the external 5 V DC power adapter to the switch and plug it into a power outlet. Use standard Ethernet cables to connect devices to any of the eight RJ45 ports; the switch will automatically detect link speed and configure MDI/MDIX. Monitor LED indicators to confirm power and link/activity status.

Recommendations

Install the switch in a well-ventilated, dry location away from direct heat sources. Use quality Cat5e or Cat6 cables for reliable 100 Mbps connections. For critical or high-traffic environments, consider a managed or gigabit switch to meet higher performance or management requirements.
