Switch no gestionado Edimax IGS-1210P 8 puertos Gigabit Ethernet PoE

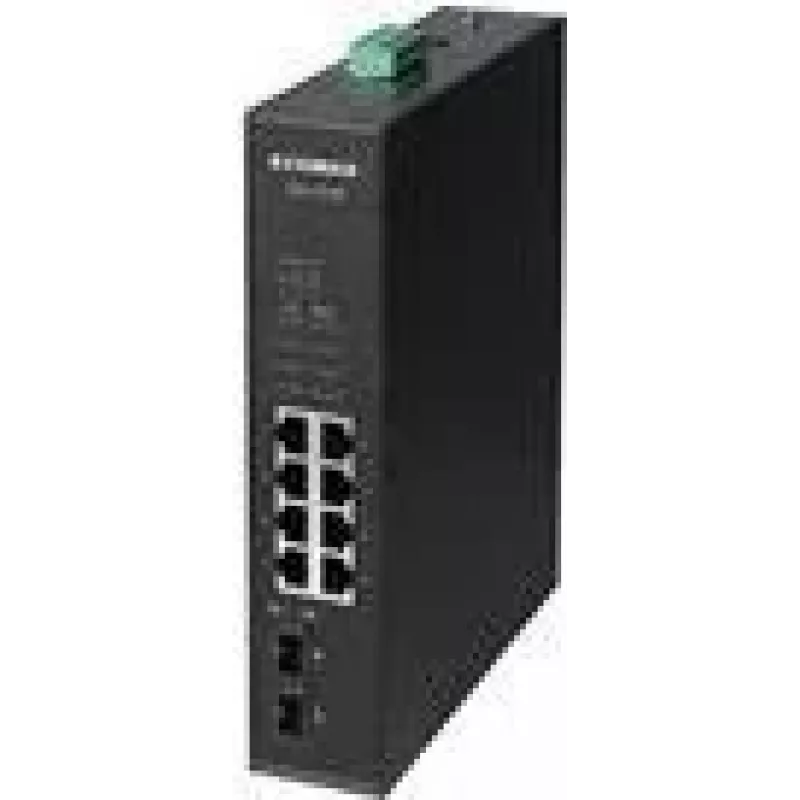

EDIMAX IGS-1210P is a robust industrial 10-port Gigabit PoE+ switch with 2 SFP ports, designed for harsh environments and wide temperature operation. The device provides 6KV lightning surge and power backfeed protection to reduce damage from non-standard power sources, supports PoE long-range transmission up to 200 meters, and offers flexible DIN-rail or wall-mount installation for industrial and outdoor network deployments.

Advantages

The switch ensures durable and reliable network performance with 6KV surge and power backfeed protection, three power inputs for power redundancy, and a wide operating temperature range from -20°C to 70°C. It supports 802.1p QoS to prioritise voice and video traffic and includes two SFP ports for fiber connectivity, making it suitable for IIoT, smart city, and outdoor surveillance applications.

Key specifications

• Model: EDIMAX IGS-1210P
• Ports: 10 × Gigabit Ethernet (PoE+), 2 × SFP
• PoE: PoE+ support, long-range PoE up to 200 m (656 ft.)
• Surge protection: 6KV lightning surge and power backfeed protection
• Power inputs: Three power inputs for redundancy
• Operating temperature: -20°C to 70°C (-4°F to 158°F)
• Mounting: DIN-rail or wall mount
• QoS: 802.1p priority for voice and video

How to use

Install the switch on a DIN-rail or mount it on a wall in a location that meets the device's operating temperature and environmental requirements. Connect network devices to the Gigabit PoE+ ports and use the SFP ports for fiber links where required. Configure power inputs to enable redundancy and set up 802.1p QoS on connected devices or the switch management interface to prioritise critical voice and video traffic. For long-range PoE deployments, connect compatible PoE devices and verify that cabling and connected equipment support extended 200 m transmission.

Recommendations

Use certified PoE+ devices and high-quality outdoor-rated cabling for long-range and outdoor installations. Regularly check power redundancy status and surge protection integrity, and place the switch in locations that avoid direct exposure to extreme physical hazards to maintain reliable service.
