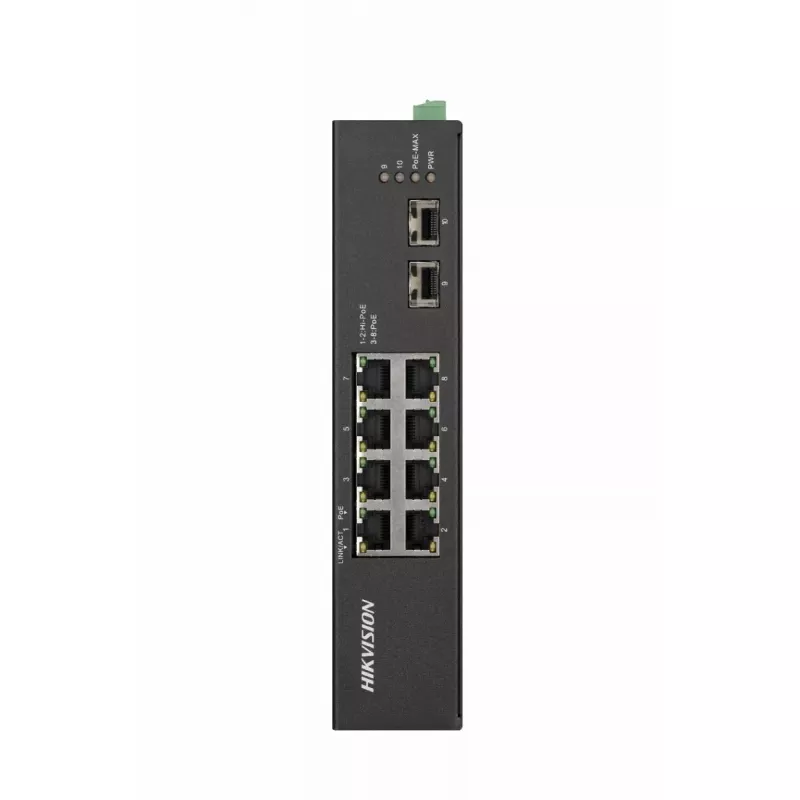

Switch no gestionado Hikvision DS-3T0510HP-E/HS

The Unmanaged Switch Hikvision DS-3T0510HP-E/HS is a layer 2 Gigabit Ethernet switch with 8 RJ-45 ports that supports Hi-PoE and standard PoE modes. Designed for stable data transmission and power delivery, it offers a switching capacity of 20 Gbit/s, a MAC address table of 4000 entries and operates from a DC input of 48–57 V. The device is built for a wide operating temperature range (-30 to 65 °C) and provides features such as long-range PoE, port isolation and a PoE watchdog function to maintain reliable connectivity.

Advantages

The Hikvision DS-3T0510HP-E/HS delivers combined data and power over Ethernet, reducing the need for separate power cabling. Its Hi-PoE capability and compliance with IEEE 802.3af/at/bt standards enable support for higher-power devices. The wide operating temperature range and industrial-grade design support deployment in challenging environments, while port isolation and a PoE watchdog enhance network stability and device protection.

Suitable for

• Supplying power and network connectivity to IP cameras and other security devices
• Small to medium local networks requiring PoE-enabled endpoints
• Installations in environments with wide temperature variations

Key specifications

• Model: DS-3T0510HP-E/HS
• Switch type: Unmanaged
• Ports: 8 × Gigabit Ethernet (10/100/1000) RJ-45
• PoE: Hi-PoE and standards IEEE 802.3af/at/bt supported
• Switching capacity: 20 Gbit/s
• MAC address table: 4000 entries
• Input voltage: DC 48–57 V
• Operating temperature: -30 to 65 °C
• Color: Black
• Weight: 0.585 kg

How to use

Mount the switch according to the installation requirements for your site, connect the DC power supply within the specified 48–57 V range, and attach network devices to the Gigabit RJ-45 ports. PoE-enabled devices connected to the ports will receive power automatically according to Hi-PoE or standard PoE negotiation. Use appropriate cabling for the distances required when using long-range PoE mode and verify link/activity LEDs to confirm connections.

Recommendations

For reliable operation, use a compatible DC power source that meets the voltage range, ensure adequate ventilation and avoid placing the switch near heat sources. When deploying high-power PoE devices, verify the total available PoE budget and distribute devices across ports to prevent overload. Regularly check firmware and device status via connected network monitoring tools where available.
