Switch no gestionado Intellinet 16 puertos Gigabit Ethernet PoE+

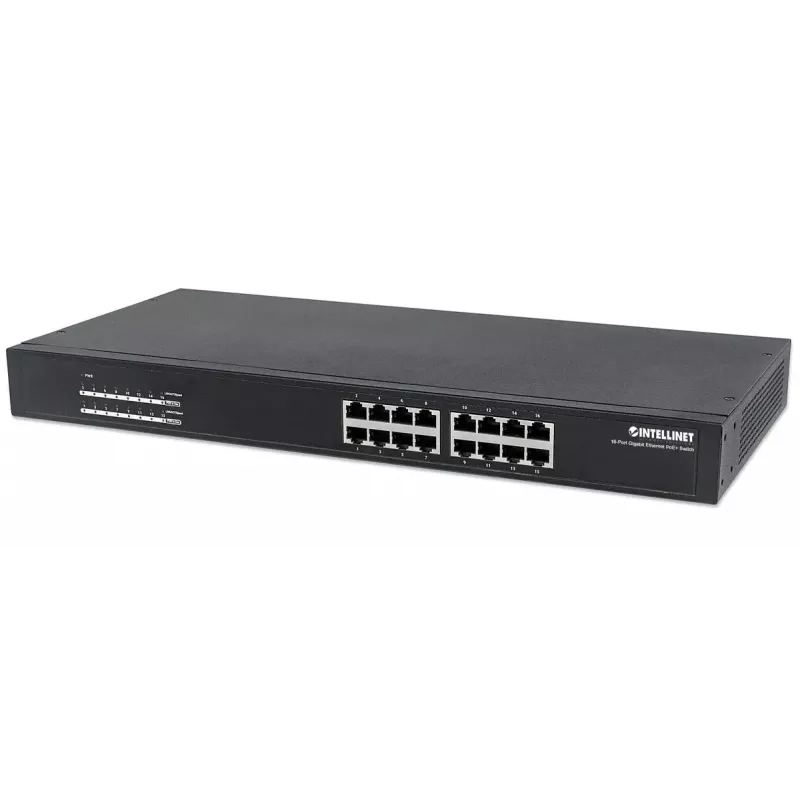

The Intellinet 16-Port Gigabit Ethernet PoE+ Unmanaged Switch (560993) is a rack-mountable network switch that delivers data and power over standard Cat5e/Cat6 cables. Featuring 16 Gigabit RJ-45 ports and a 32 Gbps switching capacity, this black unmanaged switch supports IEEE 802.3at/af Power over Ethernet to supply network devices such as IP cameras, wireless access points and VoIP phones with both connectivity and power without additional power adapters. The total PoE budget for the unit is 220 watts and the device includes protection against short-circuit, overload and high-voltage events.

Advantages

This unmanaged PoE+ switch reduces installation time and cost by delivering data and up to 30 W per port using the IEEE 802.3at standard. It supports mixed PoE and non‑PoE devices on the same switch, provides a high backplane throughput of 32 Gbps for efficient traffic handling, and includes protection features to safeguard connected equipment. Rack-mount design and Gigabit ports ensure reliable, high-speed connectivity for multiple networked devices.

Suitable for

• Powering and connecting IP video cameras in surveillance systems
• Supplying power to wireless LAN access points and bridges
• Connecting and powering VoIP phones in office environments
• Small- to medium-sized wired network deployments requiring rack-mountable Gigabit switching

Key specifications

• Ports: 16 × Gigabit RJ-45 (10/100/1000)
• PoE standard: IEEE 802.3at (PoE+) and IEEE 802.3af (PoE)
• Maximum PoE per port: up to 30 W (802.3at)
• Total PoE budget: 220 W
• Switching capacity (backplane): 32 Gbps
• MAC address table: 8192 entries
• Switch type: Unmanaged
• Mounting: Rack-mountable
• Weight: 3.8 kg
• Colour: Black

How to use

Install the switch in a standard 19-inch equipment rack using the included mounting hardware. Connect networked devices with Cat5e or Cat6 cables to the Gigabit RJ-45 ports; PoE-compliant devices will receive power automatically according to IEEE 802.3at/af. For non‑PoE legacy devices, use a compatible PoE splitter if power is required. Ensure the switch is connected to a suitable AC power source and observe rack ventilation requirements to maintain operating temperature.

Recommendations

For devices that do not support IEEE 802.3af/at (legacy cameras or access points), use an Intellinet PoE/PoE+ splitter. Monitor total PoE consumption to avoid exceeding the 220 W budget and distribute high‑power devices across ports to prevent port-level power constraints.
