Sygonix SY-5775152 Toma de corriente Schuko empotrable con protección diferencial y mayor protección contra contactos IP44 blanca

With a tripping time of less than 0.1 seconds and a rated residual current of 30 mA, this Sygonix safety socket disconnects power almost instantly when a fault current is detected, protecting people from dangerous electric shocks. The flush-mounted design integrates seamlessly into standard wall boxes, while the IP44 rating provides protection against splashing water, making it suitable for use in bathrooms, kitchens, and other damp environments.

Overview

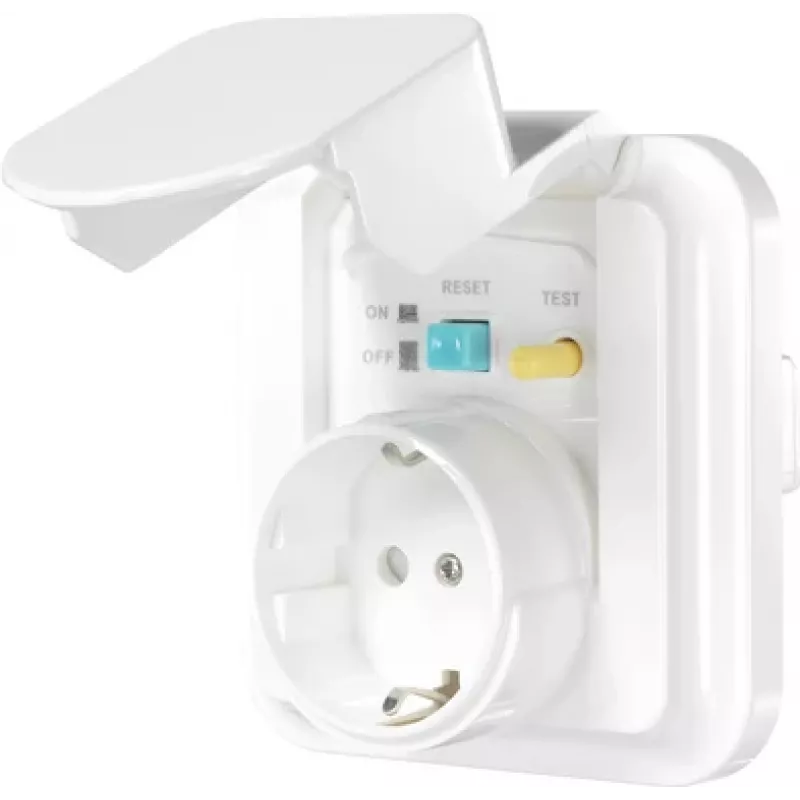

The Sygonix SY-5775152 is a 1-gang Schuko socket with integrated residual current protection (RCD). It is designed for flush mounting in standard wall boxes with an installation depth of 32 mm. The socket is rated for 230 V AC and 16 A, and it features increased touch protection to prevent accidental contact with live parts, especially by children. The housing is made of durable plastic in white.

What stands out

• Integrated RCD with 30 mA sensitivity and tripping time under 0.1 s
• IP44 protection against splashing water
• Increased touch protection (child safety shutters)
• Flush-mounted design for a clean look
• Rated for 230 V / 16 A, suitable for standard household circuits

Technical details

• Product type: RCD safety socket
• Mounting type: Flush-mounted
• Number of outlets: 1-gang
• Socket type: Schuko (Type F)
• Rated voltage: 230 V AC
• Rated current: 16 A
• Rated residual current: 30 mA
• Tripping time: < 0.1 s
• Ingress protection: IP44
• Colour: White
• Material: Plastic
• Frequency: 50 Hz
• Connection type: Screw terminals
• Operating temperature range: -25 to +40 °C
• Installation depth: 32 mm

Our verdict

A reliable safety solution for areas where water and electricity may come into contact. The integrated RCD and IP44 rating make it a practical choice for bathrooms, kitchens, and utility rooms, while the child-proof shutters add extra peace of mind.
