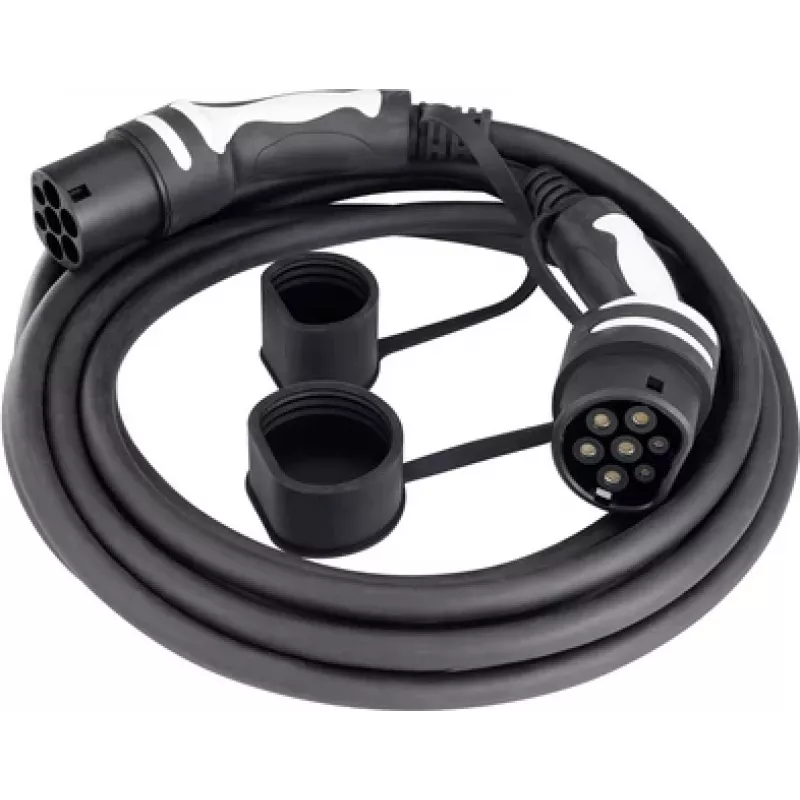

Sygonix SY-5836548 Cable de carga para VE Type 2 a Type 2 7 m 11 kW 20 A trifásico IP65 negro

Charge your electric vehicle at any public or private Type 2 charging station with this durable 7-metre cable from Sygonix. The SY-5836548 connects your EV’s Type 2 inlet directly to a Type 2 outlet, delivering up to 11 kW of three-phase AC power for reliable overnight or top-up charging.

Key specifications

• Connectors: Type 2 (IEC 62196-2) to Type 2 (IEC 62196-2)
• Cable length: 7 m
• Maximum charging power: 11 kW
• Maximum current: 20 A
• Phase configuration: 3-phase
• Voltage rating: 400 V AC
• IP rating: IP65 (connectors and cable)
• Operating temperature: -30°C to +50°C
• Cable material: TPE (thermoplastic elastomer)
• Colour: black

Why choose it

The 7-metre length gives you flexibility when parking, while the robust TPE jacket resists wear, weather and vehicle roll-over. IP65 protection keeps dust and water jets out, so the cable performs reliably in rain or snow. It is compatible with all electric vehicles and plug-in hybrids that have a Type 2 charging port.

Ideal use cases

• Home charging from a wallbox with a Type 2 socket
• Public AC charging stations without a tethered cable
• Workplace charging points
• Charging at destinations such as hotels or shopping centres

Good to know

This cable is designed for three-phase AC charging at up to 11 kW. It meets the IEC 62196-2 and EN 50620 standards for safe operation. The connectors are ergonomically shaped for easy handling, even with gloves.
