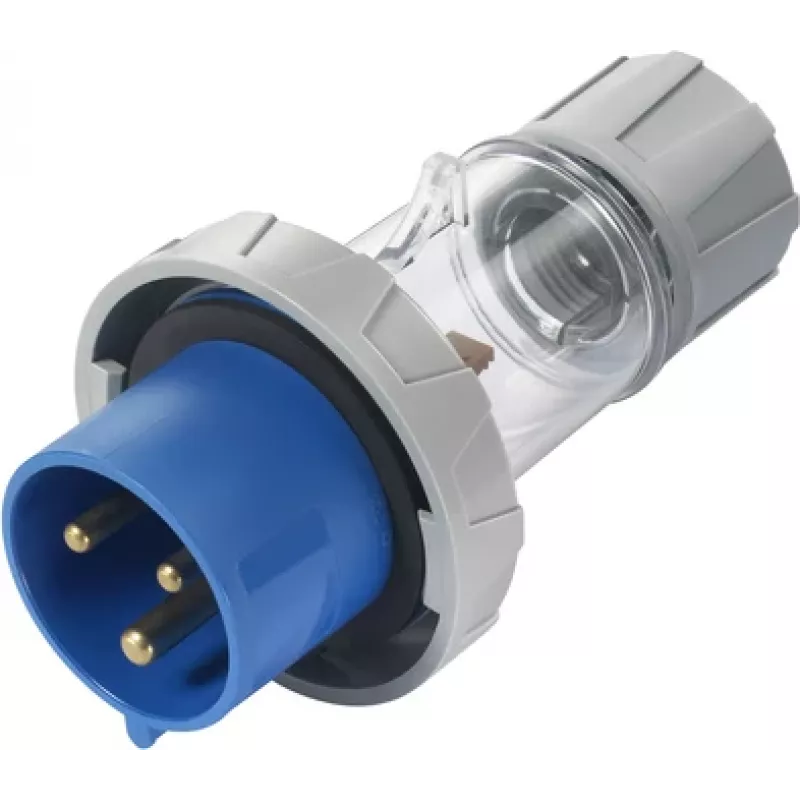

Sygonix SY-5873150 Conector macho CEE para caravana 32 A 3 polos 230 V/AC IP67 Transparente

With an IP67 rating, the Sygonix SY-5873150 CEE caravan plug withstands dust and temporary immersion, making it ideal for outdoor and industrial use. Its transparent polycarbonate housing allows visual inspection of internal connections, while the 32 A rating supports high-power equipment.

Overview

This 3-pole (2P+E) plug complies with IEC 60309 and operates at 230 V/AC, 50/60 Hz. The 6h earth contact position ensures correct phase alignment. Screw terminals accommodate cables from 6 to 16 mm², and the screw gland provides strain relief. Nickel-plated brass contacts ensure reliable conductivity. Suitable for caravans, camping, industrial, and outdoor applications.

What stands out

• IP67 protection against dust and water immersion
• Transparent housing for easy inspection
• High current capacity: 32 A
• Robust polycarbonate construction
• Wide cable range: 6–16 mm²

Technical details

• Product type: CEE caravan plug
• Connector standard: IEC 60309
• Rated current: 32 A
• Rated voltage: 230 V/AC
• Number of poles: 3-pole (2P+E)
• Ingress protection: IP67
• Earth contact position: 6h
• Frequency: 50/60 Hz
• Connection technology: Screw terminals
• Housing material: Polycarbonate
• Colour: Transparent
• Application: Caravans, camping, industrial, outdoor
• Cable gland type: Screw gland
• Max. cable cross-section: 6–16 mm²
• Contact material: Brass, nickel-plated
• Temperature range: -25°C to +40°C
• Mounting type: Cable-mounted
• Certification: CE
• Design: Straight plug

Our verdict

A durable, high-current plug with transparent housing for reliable outdoor power connections.
