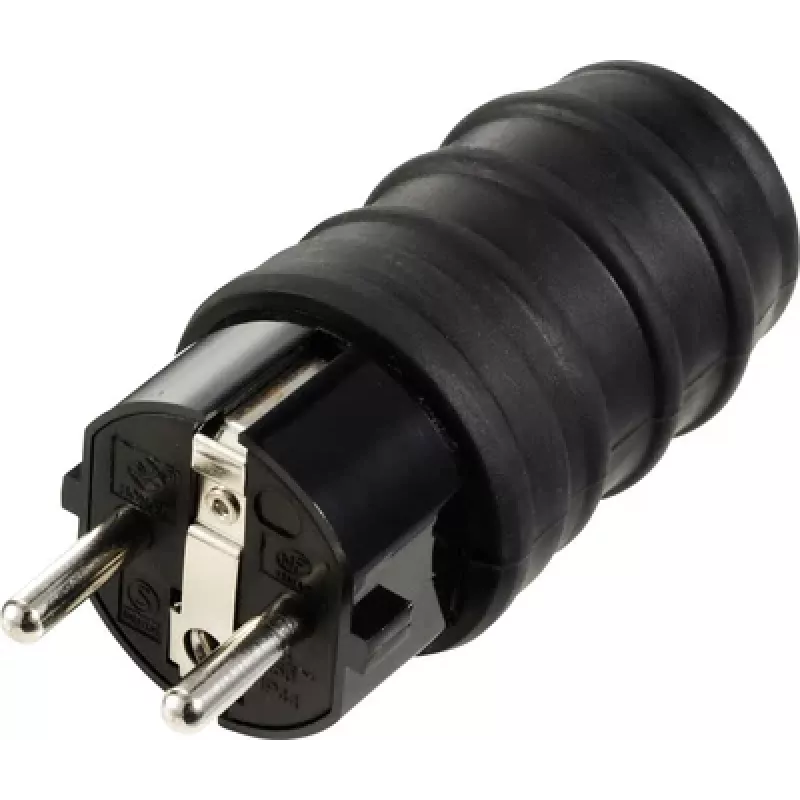

Sygonix SY-6618468 conector macho Schuko TPE 250 V/AC negro IP44

When you need a reliable power connection for equipment in damp or outdoor environments, a standard plug often falls short. The Sygonix SY-6618468 Schuko plug solves this by providing a robust, IP44-rated connection point that keeps moisture and dust out, ensuring safe operation even in challenging conditions.

Who is it for

This plug is ideal for electricians, technicians, and DIY enthusiasts who need to connect power tools, garden equipment, or temporary installations in protected outdoor areas or damp indoor spaces. It suits anyone who values safety, durability, and ease of installation.

Main features

• Schuko (Type F) plug standard, widely used across Europe
• IP44 ingress protection: protected against splashing water and solid objects over 1 mm
• Made from thermoplastic elastomer (TPE) for flexibility and impact resistance
• Rated for 250 V AC and 16 A, suitable for high-power appliances
• Screw terminals accommodate cables up to 3 x 2.5 mm²
• Straight cable entry for easy wiring
• Operating temperature range: -25 to +70 °C
• VDE certified for safety and compliance

Specifications

• Brand: Sygonix
• Model: SY-6618468
• MPN: SY-6618468
• EAN: 4064161342467
• Product type: Male power plug
• Plug standard: Schuko (Type F)
• Rated voltage: 250 V AC
• Rated current: 16 A
• Ingress protection: IP44
• Housing material: Thermoplastic elastomer (TPE)
• Colour: Black
• Connection method: Screw terminals
• Max. cable cross-section: 3 x 2.5 mm²
• Number of poles: 2-pole + Earth
• Cable entry direction: Straight
• Operating temperature range: -25 to +70 °C
• Certifications: VDE
• Application: Indoor and protected outdoor use
• Mounting type: Cable-mounted

Tips

For best results, use a cable with an outer diameter that fits the plug's strain relief. Ensure the cable is properly stripped and the screws are tightened to the recommended torque to maintain a secure connection. When using outdoors, always connect to a socket with at least IP44 protection as well.
