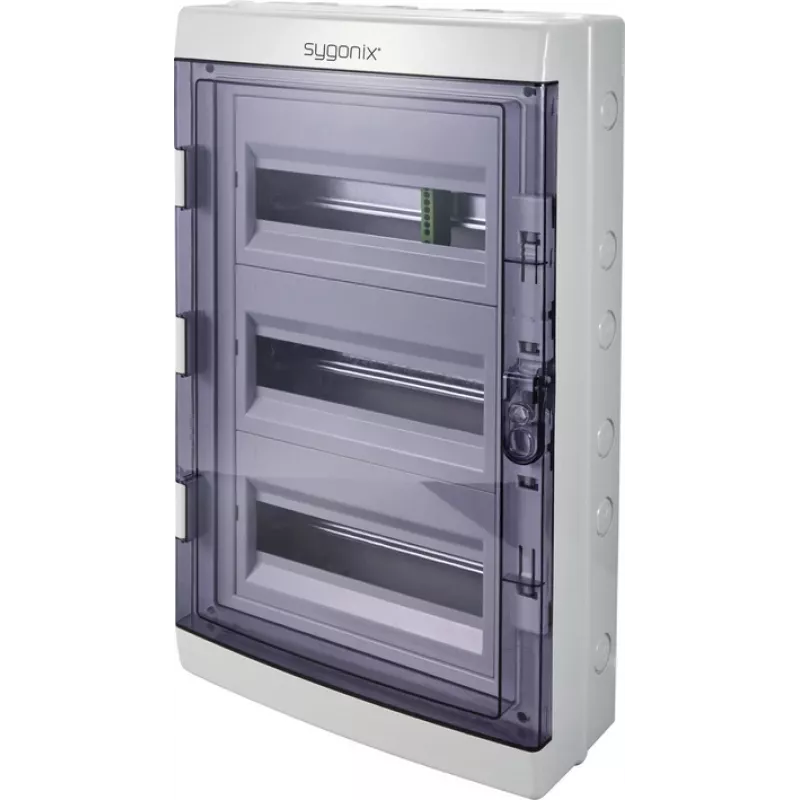

Sygonix SY-6696062 Cuadro de distribución de superficie, 36 módulos, 3 filas, Blanco

Electricians and panel builders installing a compact sub-distribution in residential or commercial buildings will appreciate the Sygonix SY-6696062. This surface-mounted distribution board provides 36 module slots across three rows, making it suitable for organizing circuit breakers, residual current devices, and other DIN rail components in a single enclosure.

Key specifications

• Mounting type: Surface-mounted
• Number of modules (TE): 36
• Number of rows: 3
• Protection class: IP40
• Housing material: ABS plastic
• Colour: White
• Door type: Transparent
• Rated voltage: 230/400 V AC
• Rated current: 63 A
• Glow wire test temperature: 650 °C
• Operating temperature range: -25 to +60 °C
• Standards: EN 60439-3, EN 62208
• DIN rail included: Yes
• PE/N terminals included: Yes
• Door hinge position: Right (reversible)

Why choose it

The transparent door allows quick visual inspection of installed devices without opening the enclosure, while the ABS housing provides durability and electrical insulation. The board meets EN 60439-3 and EN 62208, ensuring compliance with European standards for distribution boards.

Ideal use cases

• Residential electrical distribution
• Commercial sub-distribution panels
• Retrofit installations where surface mounting is required

Good to know

The door hinge is reversible, offering flexibility during installation. The board includes DIN rails and PE/N terminals, simplifying assembly.
