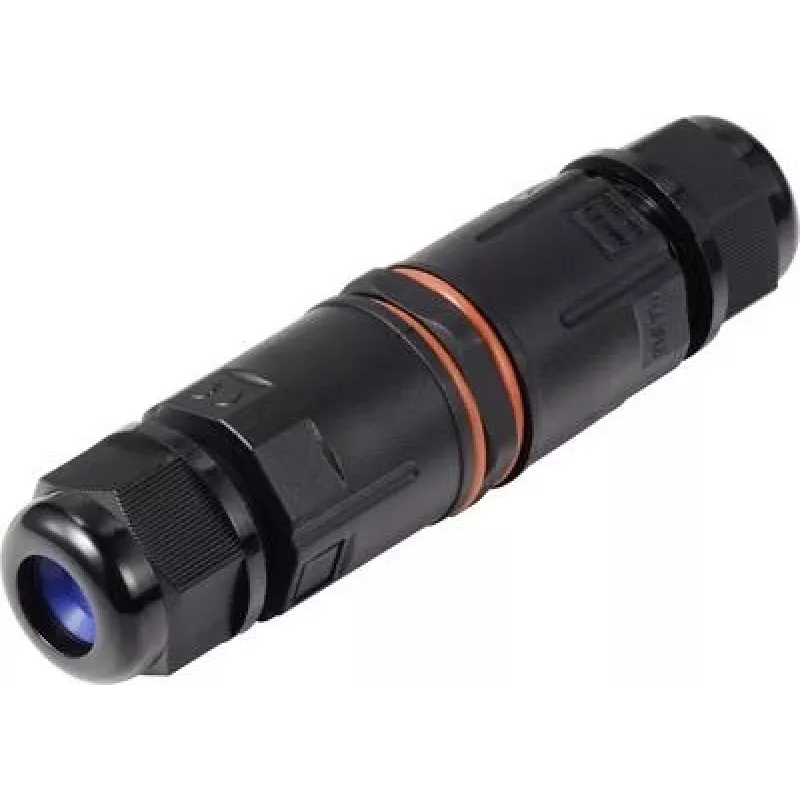

Sygonix SY-6748354 Conector de cable resistente a la intemperie con terminales push-in, 3 polos, IP68, negro

Rated for 24 A at 450 V AC, this 3-pole cable connector handles outdoor and underground connections in wet areas. Its push-in terminals accept solid or stranded conductors from 0.5 mm² to 2.5 mm², and the IP68-rated PA66 housing keeps moisture out even when submerged.

Overview

The Sygonix SY-6748354 is a weatherproof inline cable connector for permanent installations. It joins 3-core cables (L, N, PE) with outer diameters from 4 mm to 10 mm. The push-in terminal design requires no screws, so wiring is fast and secure. The black polyamide (PA66) body withstands temperatures from -40 °C to +105 °C, making it suitable for harsh environments.

What stands out

• IP68 protection: dust-tight and resistant to continuous immersion
• Tool-free push-in terminals for 0.5–2.5 mm² conductors
• Wide operating temperature range: -40 °C to +105 °C
• Durable PA66 housing resists UV, chemicals, and impact

Technical details

• Rated voltage: 450 V AC
• Rated current: 24 A
• Number of poles: 3 (L, N, PE)
• Conductor cross-section: 0.5–2.5 mm²
• Cable outer diameter: 4–10 mm
• Material: PA66 (polyamide)
• Colour: Black
• Mounting: Inline / free-hanging

Our verdict

A reliable, no-fuss connector for outdoor power and lighting circuits. The IP68 rating and broad temperature tolerance make it a solid choice for garden, pond, or underground wiring where moisture is a constant threat.
