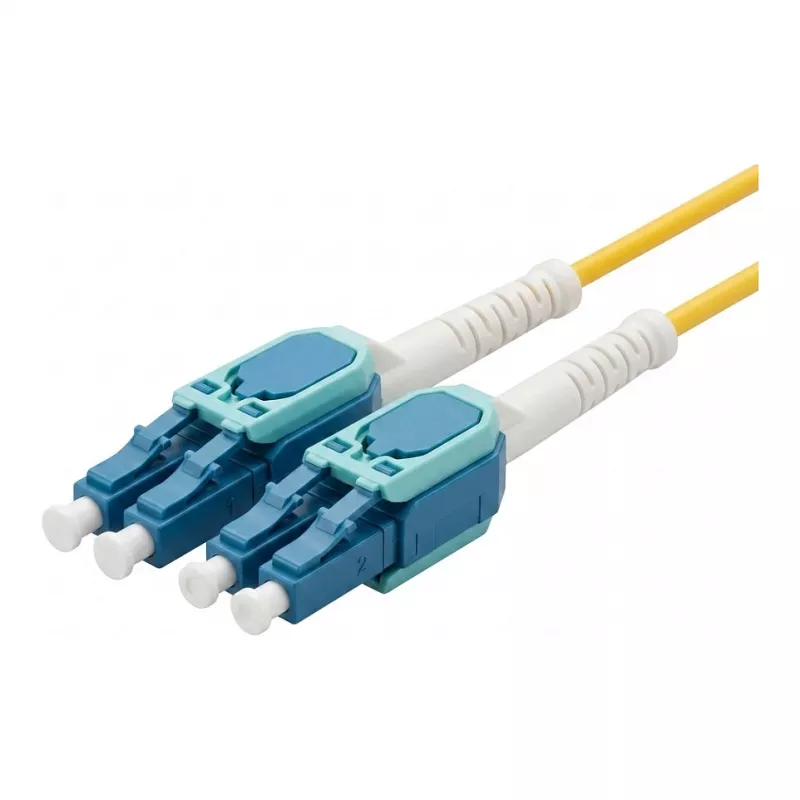

Synergy21 Cable de conexión de fibra óptica 2m LC-LC OS2 Uniboot Rotatable Push/Pull 2mm

The Synergy21 S215528V2 is a high-quality duplex fiber optic patch cable designed for reliable single-mode connections in data centers, telecommunications, LAN, and SAN environments. With a length of 2 meters and LC to LC connectors featuring a rotatable Uniboot design and push/pull mechanism, this cable offers flexibility and ease of installation. The 9/125 µm core/cladding and OS2 grade ensure excellent performance at 1310nm and 1550nm wavelengths.

Advantages

Rotatable Uniboot connector allows for polarity reversal without additional adapters. Push/pull tab simplifies insertion and removal in high-density panels. Compact 2mm jacket saves space and improves airflow.

Suitable for

• Data center cabling
• Telecommunications networks
• Local area networks (LAN)
• Storage area networks (SAN)

Key specifications

• Fiber type: Single-mode OS2
• Connectors: LC to LC, Uniboot rotatable, Push/Pull
• Length: 2 meters
• Jacket diameter: 2 mm
• Insertion loss: ≤ 0.25 dB typical
• Return loss: ≥ 50 dB typical
• Operating wavelengths: 1310nm, 1550nm
• Polarity: A-B (crossed)

Recommendations

For optimal performance, ensure clean fiber end-faces before connection. Compatible with standard LC adapters.
