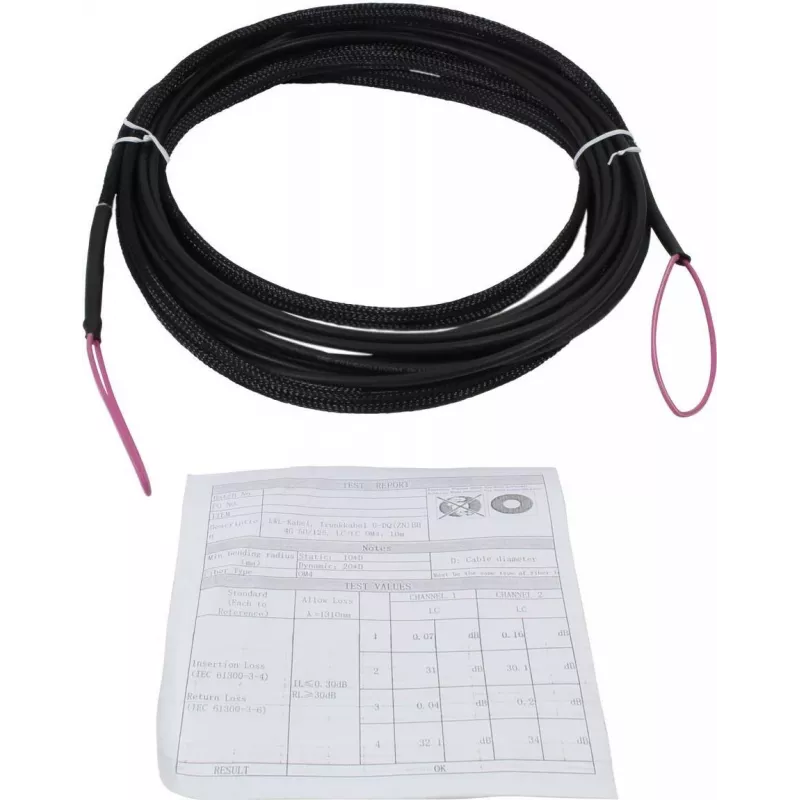

SYNERGY21 cable troncal de fibra óptica U-DQ ZN BH 8G 50/125 LC/LC OM4 120m bobina

The SYNERGY21 S217081 is a high-performance fiber optic trunk cable designed for reliable data transmission in demanding environments. With 8 multimode fibers of OM4 class, this cable delivers exceptional bandwidth and low attenuation, making it ideal for high-speed networks. The loose tube construction (U-DQ ZN BH) provides robust protection, while the LSZH sheath ensures safety in indoor and outdoor installations. Supplied on a convenient cable drum, it is ready for deployment in data centers, enterprise networks, and telecommunications infrastructure.

Advantages

This trunk cable offers superior modal bandwidth of 4700 MHz*km at 850nm, supporting high-data-rate applications such as 40G and 100G Ethernet. The LC duplex connectors on both ends ensure easy and secure connections. Its non-metallic design and water-blocking features make it suitable for outdoor use, while the LSZH material reduces toxic smoke in case of fire. The 120-meter length provides flexibility for long-distance runs without splicing.

Suitable for

• Data center backbone cabling
• Enterprise network infrastructure
• Telecommunications and ISP networks
• High-speed data transmission (40G/100G Ethernet)
• Indoor and outdoor installations

Key specifications

• Cable Type: Fiber Optic Trunk Cable
• Fiber Type: Multimode OM4
• Fiber Count: 8 Fibers
• Core/Cladding Diameter: 50/125 µm
• Connector Type: LC Duplex (both ends)
• Cable Length: 120 m
• Cable Construction: Loose Tube (U-DQ ZN BH)
• Sheath Material: LSZH (Low Smoke Zero Halogen)
• Rodent Protection: Non-metallic
• Water Blocking: Longitudinal
• Application Environment: Indoor/Outdoor
• Supply Method: Cable Drum
• Attenuation (850nm): 3.0 dB/km
• Attenuation (1300nm): 1.0 dB/km
• Modal Bandwidth (850nm): 4700 MHz*km
• Modal Bandwidth (1300nm): 500 MHz*km

Recommendations

For optimal performance, pair this trunk cable with compatible LC duplex patch panels and connectors. Ensure proper cable management and bend radius protection during installation. This product is RoHS compliant and meets industry standards for reliability.
