SYNERGY21 fuente de alimentación LED 24V 150W Mean Well regulable

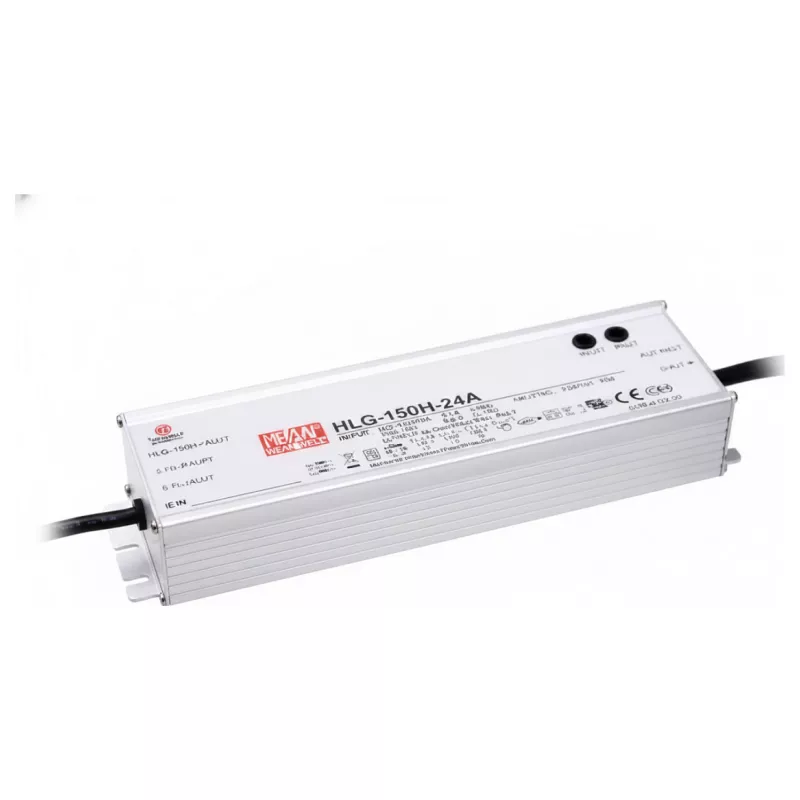

This SYNERGY21 LED power supply, based on the Mean Well HLG-150H-24 series, delivers a constant 24V DC output at 150W with 3-in-1 dimming capability. Designed for high-efficiency LED lighting systems, it features a wide input voltage range (90~305VAC) and an IP67-rated aluminum housing for outdoor and industrial use.

Advantages

High efficiency up to 94% reduces energy costs and heat generation. The 3-in-1 dimming function (0-10VDC, PWM, or resistance) offers flexible control. IP67 protection ensures reliable operation in harsh environments. Built-in protections (short circuit, overload, over voltage, over temperature) safeguard your installation.

Suitable for

• LED strip lighting
• Outdoor signage and architectural lighting
• Industrial LED luminaires
• Constant voltage or constant current LED applications

Key specifications

• Output: 24V DC, 6.25A, 150W
• Input: 90~305VAC / 127~431VDC
• Dimming: 3-in-1 (0-10V, PWM, resistance)
• Efficiency: Up to 94%
• IP Rating: IP67
• Operating Temperature: -40~+80°C
• Certifications: UL, CUL, TUV, CE, CB, RCM, ENEC

Recommendations

For optimal performance, ensure proper ventilation and adhere to the derating curve at high temperatures. This power supply is ideal for demanding LED installations requiring dimming and high reliability.
