SYNERGY21 Perfil en U para LED 200cm ALU070-R Perfil Esquinero para Pladur

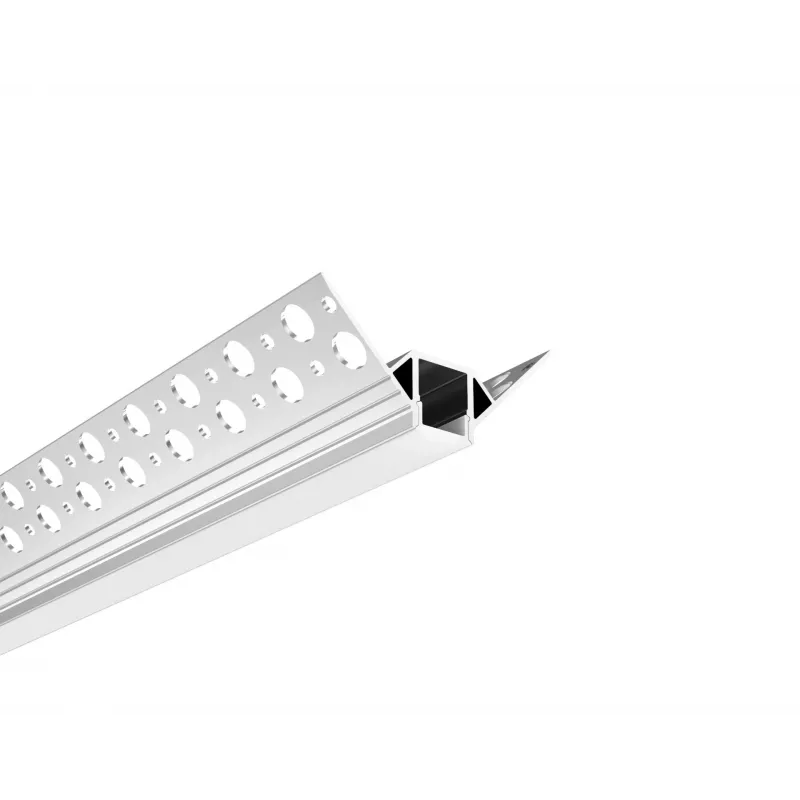

The SYNERGY21 LED U-Profile 200cm ALU070-R is a high-quality anodized aluminum corner profile designed for flush and recessed mounting in plasterboard walls and ceilings. Ideal for indirect and decorative LED lighting, this 2000 mm long profile accommodates LED strips up to 12.2 mm wide and acts as an effective heat sink. The 90-degree shape directs light at a 45-degree angle, creating a sleek, modern illumination effect. Compatible with 12.5 mm plasterboard thickness, the profile has a visible width of 25 mm on each side and a depth of 12.5 mm. Diffuser and end caps are sold separately. Cuttable to custom lengths and RoHS compliant.

Advantages

This profile offers a seamless integration into corners, providing a clean, professional finish. Its anodized aluminum construction ensures durability and efficient thermal management, prolonging LED strip life. The 90-degree design allows for versatile lighting angles, enhancing interior aesthetics.

Suitable for

• Indirect LED strip lighting in living rooms, offices, and commercial spaces
• Decorative corner lighting on walls and ceilings
• Drywall and plasterboard installations

Key specifications

• Profile Type: U-Profile / Corner Profile
• Material: Anodized Aluminum
• Length: 200 cm (2000 mm)
• Suitable LED Strip Width: Up to 12.2 mm
• Mounting: Flush / Recessed
• Plasterboard Thickness: 12.5 mm
• Visible Profile Width: 25 mm per side
• Profile Depth: 12.5 mm
• Shape: 90-degree Corner
• Light Direction: Angled (45°)
• Cuttable: Yes
• Diffuser/Cover: Not included
• End Caps: Not included
• Environmental Compliance: RoHS

Recommendations

For a complete installation, pair with a compatible LED strip (max 12.2 mm width), diffuser, and end caps. Ensure proper cutting and mounting for best results.
