Synergy 21 conector macho RJ45 CAT6A montaje en campo sin herramienta corto - Red

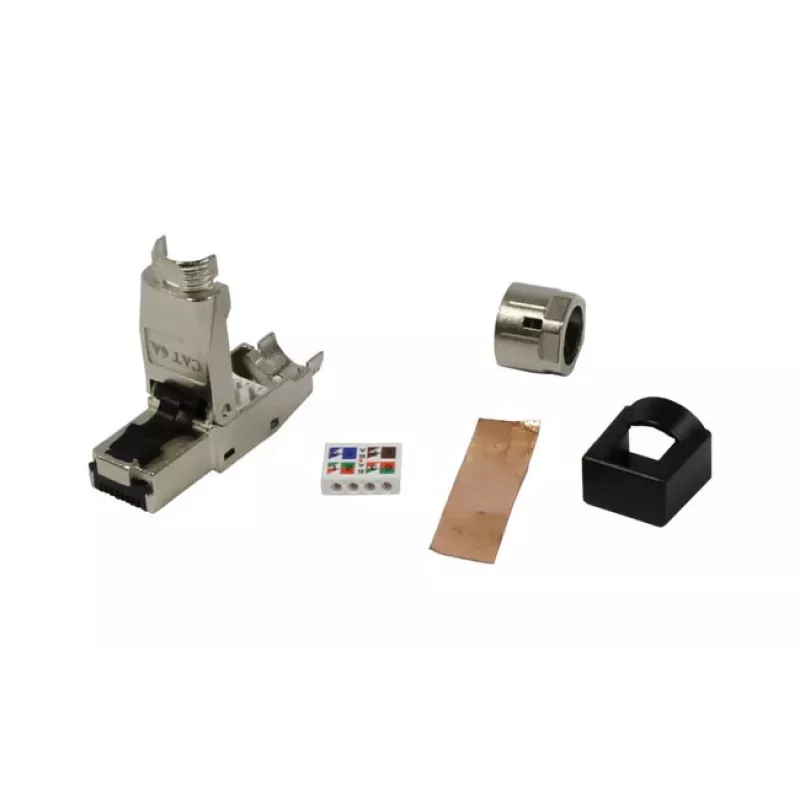

The Synergy 21 TP Field-Terminable CAT6A RJ45 Tool-less Short Plug is a high-performance, compact connector designed for fast and reliable network installations. This shielded plug supports 10 Gigabit Ethernet and is ideal for professional cabling in data centers, offices, and industrial environments.

Advantages

Tool-less termination saves time and reduces installation errors. The compact short design fits in tight spaces, while the robust zinc die-cast housing ensures durability and excellent EMI protection. Reusable and compatible with PoE++ (up to 90W), it offers flexibility for future network upgrades.

Suitable for

• Structured cabling for CAT6A networks
• 10GBASE-T applications
• Power over Ethernet devices (cameras, access points, IoT)
• Field termination and repair of network cables

Key specifications

• Connector Type: RJ45 Plug
• Cable Category: CAT6A (Category 6A)
• Termination Method: Tool-less, Field-Terminable
• Shielding: Shielded (STP/FTP compatible)
• Data Transfer Rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Frequency Bandwidth: Up to 500 MHz
• Contact Plating: Gold-plated (50µm)
• Wire Gauge Compatibility: AWG 22-26 (Solid & Stranded)
• PoE Support: IEEE 802.3af/at/bt (PoE, PoE+, PoE++)
• Housing Material: Zinc Die-Cast
• Standard Compliance: TIA/EIA 568-B.2-10, ISO/IEC 11801, EN 50173
• Number of Contacts: 8P8C
• Design Feature: Compact / Short Version
• Reusability: Reusable
• Operating Temperature: -10°C to +60°C

Recommendations

For optimal performance, use with CAT6A shielded cable and ensure proper grounding. Suitable for both solid and stranded conductors.
