IWH 019056 Conector rápido de batería, pinza de resorte positiva y negativa, cierre rápido, con perno, 1 par

Battery quick connector pair with spring clamps for positive and negative terminals, enabling tool-free connection and disconnection of battery cables. The quick-release mechanism allows fast swapping of batteries or electrical equipment without removing the cable lugs.

Advantages

The spring clamp design ensures a secure grip on standard conical battery posts (SAE/DIN). Color-coded red and black clamps prevent polarity mix-ups. Included stud bolts provide a solid anchor point for cable lugs. Brass/copper alloy construction offers high corrosion resistance and reliable conductivity for 12V/24V DC systems.

Suitable for

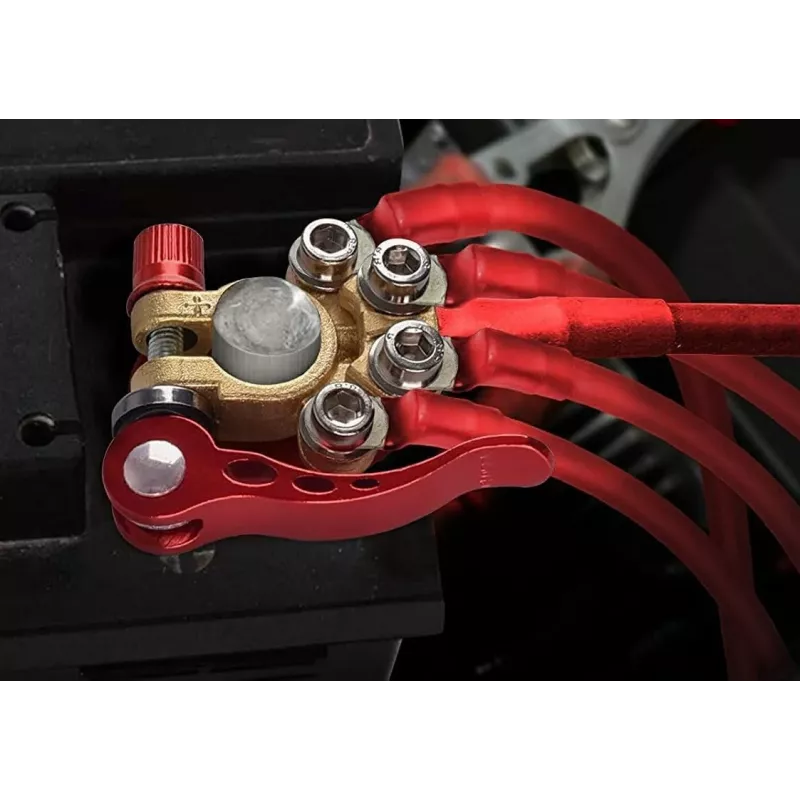

• Automotive batteries
• Marine and RV battery systems
• Solar power storage
• Other 12V/24V DC applications

Key specifications

• Connection mechanism: Spring clamp with quick release
• Polarity: Positive (+) and negative (−)
• Quantity: 1 pair (2 pieces)
• Included components: 2 stud bolts
• Material: Brass / copper alloy

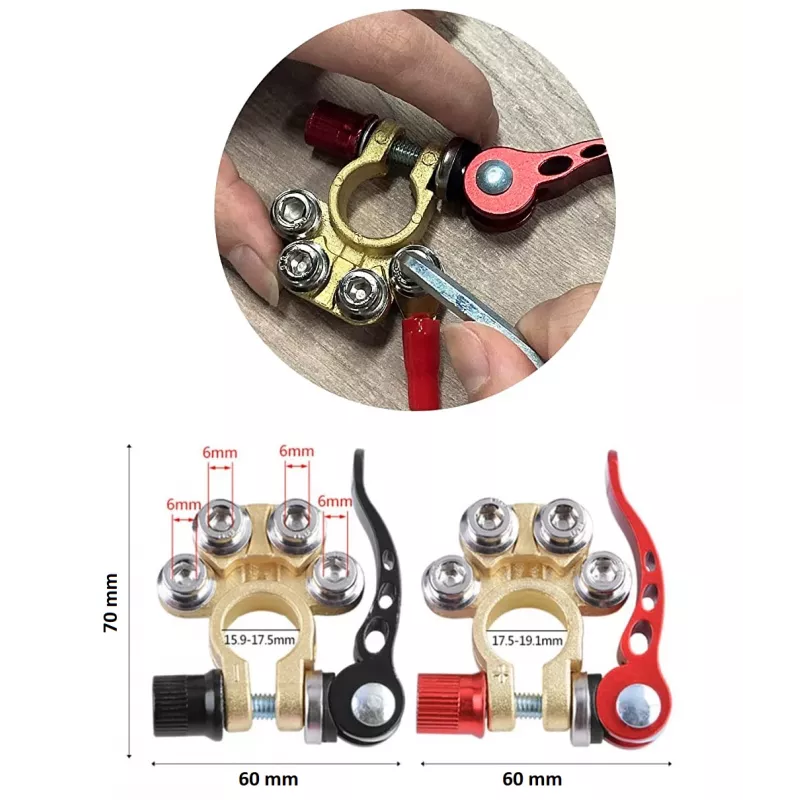

• Positive terminal diameter: approx. 17.5 mm
• Negative terminal diameter: approx. 16 mm
• Max. cable gauge: up to 50 mm² (approx. 0 AWG)
• Voltage compatibility: 12V / 24V DC
• Max. continuous current: 150 A
• Max. peak current: 500 A
• Installation: Tool-free

Recommendations

Ideal for users who frequently disconnect batteries for maintenance, charging, or seasonal storage. Ensure the clamps match your battery post diameters before purchase.
