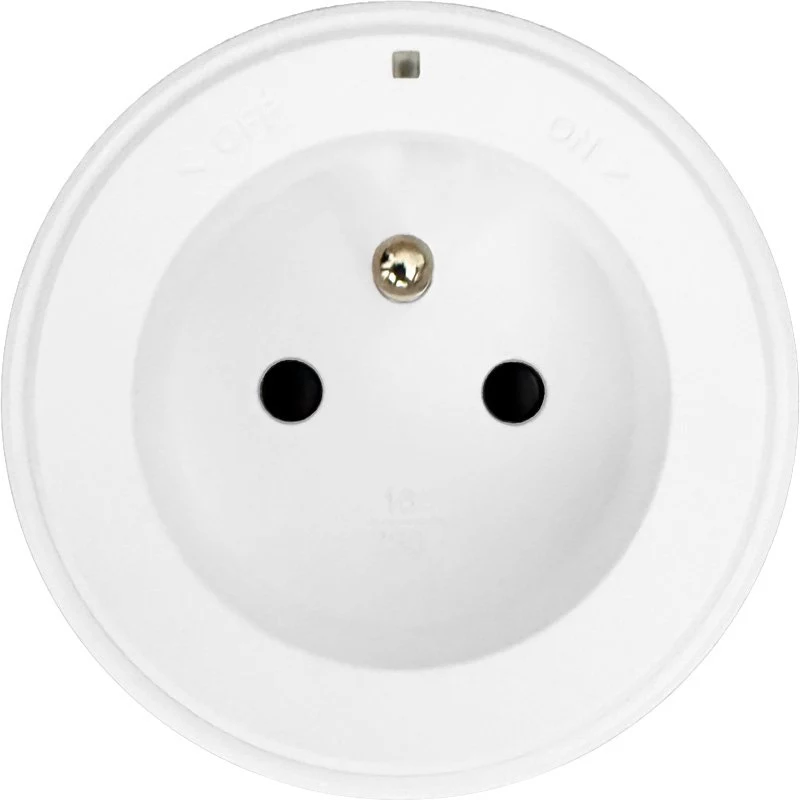

Synergy 21 MODULRAIL módulo de toma de corriente tipo E+ (francesa) blanca 16A 250V S21-MR017

Rated at 16 A and 250 V AC, this socket module delivers robust power distribution for modular electrical systems. It features a single Type E (French standard) socket with 2P+E configuration, screw terminals, and a white thermoplastic housing. Designed for the Synergy 21 MODULRAIL system, it operates at 50/60 Hz and is certified CE.

Overview

The Synergy 21 MODULRAIL Socket Module Type E+ (French) provides a reliable power outlet within modular rail systems. Its 16 A current rating and 250 V voltage support a wide range of electrical loads. The module integrates seamlessly into the MODULRAIL mounting system, offering a clean and professional installation.

What stands out

• Type E (French standard) socket with 2P+E configuration
• Rated current: 16 A, voltage: 250 V AC
• Compatible with Synergy 21 MODULRAIL system
• White thermoplastic housing for durability
• Screw terminal connection for secure wiring

Technical details

• Product type: Socket Module
• Socket standard: Type E (French)
• Number of sockets: 1
• Rated current: 16 A
• Rated voltage: 250 V AC
• Frequency: 50/60 Hz
• Connection type: Screw terminals
• Number of poles: 2P+E
• Housing material: Thermoplastic
• Colour: White
• Mounting system: Synergy 21 MODULRAIL
• Operating temperature: -5°C to +40°C

Our verdict

A dependable socket module for MODULRAIL installations, offering standard French socket compatibility and solid 16 A performance.
