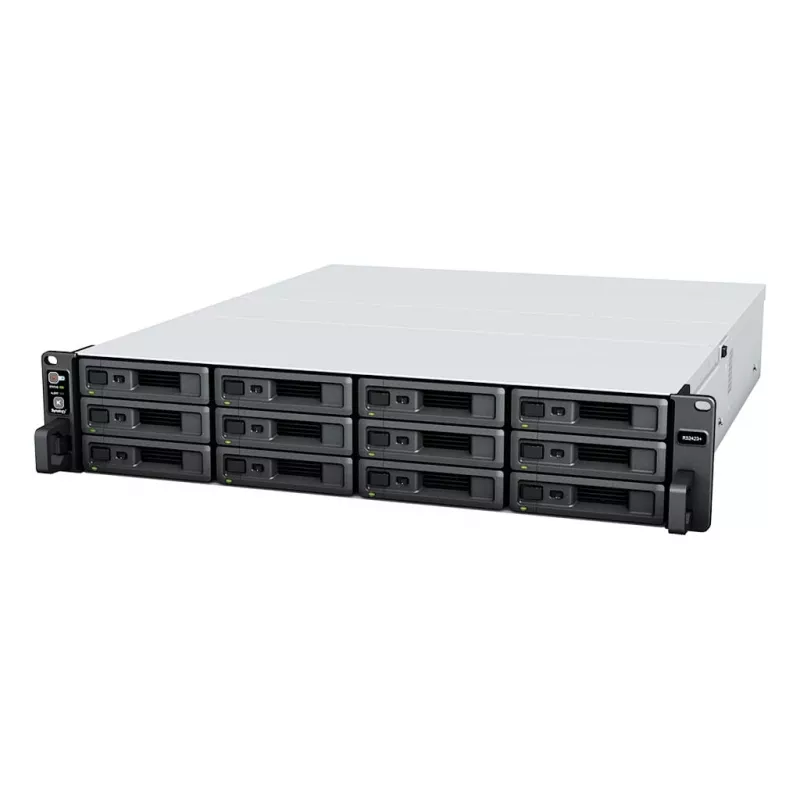

Synology RS2423+ 12-Bay NAS+ 12x6TB HAT3300-6T HDD

Data growth can outpace storage capacity, leaving businesses scrambling for scalable, reliable solutions. The Synology RS2423+ 12-Bay Rackmount NAS tackles this head-on, delivering a robust platform for centralized storage, data protection, and collaboration. Bundled with twelve Synology HAT3300-6T 6TB hard drives, this kit provides 72TB of raw capacity right out of the box, ready to handle demanding workloads.

Who is it for

This NAS is built for small to medium-sized businesses, remote offices, and IT administrators who need a high-capacity, rack-mountable storage server. It suits environments requiring reliable data backup, file sharing across teams, virtualization support, or surveillance recording. If you're consolidating data from multiple servers or expanding an existing Synology deployment, this unit offers the performance and flexibility to meet those needs.

Main features

• 12-bay 2U rackmount chassis with hot-swappable drive trays for easy maintenance.
• Includes 12 x Synology HAT3300-6T 6TB SATA HDDs (7200 RPM), total raw capacity 72TB.
• Powered by AMD Ryzen V1780B quad-core processor at 3.35 GHz and 8GB DDR4 ECC memory (expandable to 32GB).
• Four built-in Gigabit Ethernet ports: two 1GbE and two 2.5GbE, with Link Aggregation and failover support.
• PCIe Gen3 x8 slot for optional 10GbE network card or M.2 NVMe SSD cache adapter.
• Dual redundant 500W power supplies for high availability.
• Runs Synology DiskStation Manager (DSM), offering a wide range of applications for backup, file sync, surveillance, and more.
• Supports Synology Hybrid RAID, RAID 0/1/5/6/10, and JBOD for flexible data protection.
• Compatible with VMware vSphere, Microsoft Hyper-V, Citrix XenServer, and OpenStack Cinder for virtualization environments.

Specifications

• Processor: AMD Ryzen V1780B Quad-Core 3.35 GHz
• Memory: 8 GB DDR4 ECC UDIMM, expandable up to 32 GB
• Drive Bays: 12 (3.5" / 2.5" SATA HDD/SSD)
• Included Drives: 12 x Synology HAT3300-6T 6TB SATA 7200 RPM HDDs
• Total Included Raw Capacity: 72 TB
• Maximum Raw Capacity (NAS only): 216 TB (12 x 18TB drives)
• Network Ports: 2 x 1GbE RJ-45, 2 x 2.5GbE RJ-45
• PCIe Expansion: 1 x Gen3 x8 (x4 link)
• Form Factor: 2U Rackmount
• Hot-Swappable Drives: Yes
• RAID Support: Synology Hybrid RAID, Basic, JBOD, RAID 0, 1, 5, 6, 10
• File System: Btrfs, ext4
• Power Supply: Dual Redundant 500W PSUs
• Warranty: 3 Years (NAS & HDDs)

Tips

To maximize performance, consider installing a 10GbE network card in the PCIe slot and using SSDs for caching. For data protection, configure Synology Hybrid RAID with at least one drive redundancy. Regularly update DSM to access the latest security patches and features. The included HAT3300 drives are optimized for Synology systems, ensuring reliable operation and easy warranty support.
