Taco Fischer 567811 50 mm verde 45 uds.

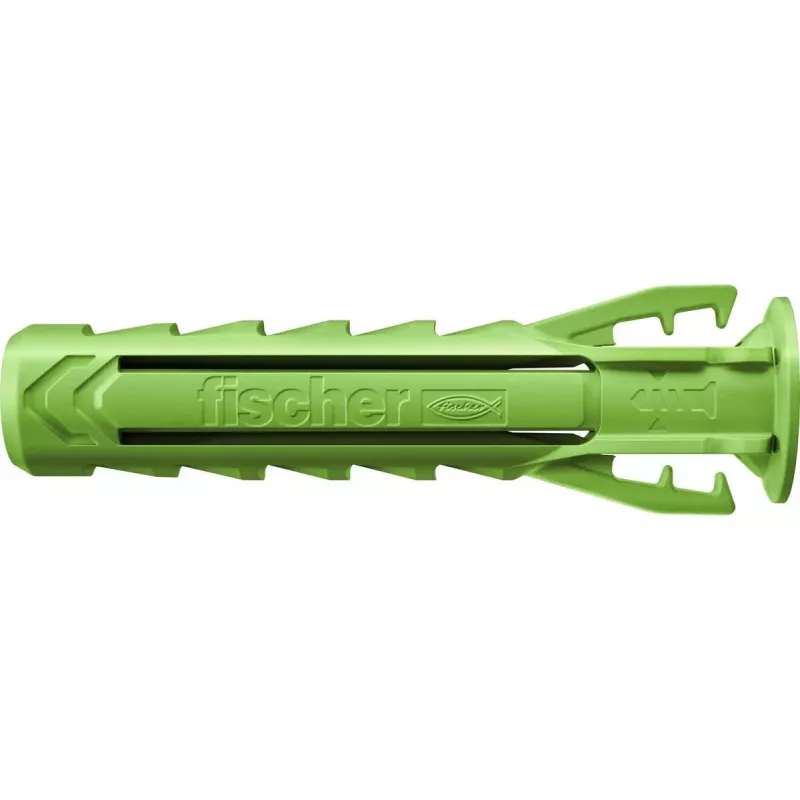

The Fischer expansion anchor SX Plus Green (Fischer 567811) is a 50 mm plastic anchor produced with at least 50% renewable raw materials. Designed for reliable fixing in a wide range of building materials, it is suitable for concrete, masonry, sand-lime brick, autoclaved aerated concrete and gypsum-based boards. The pack contains 45 green anchors with a diameter of 10 mm and is intended for both pre-positioned and push-through installation methods.

Advantages

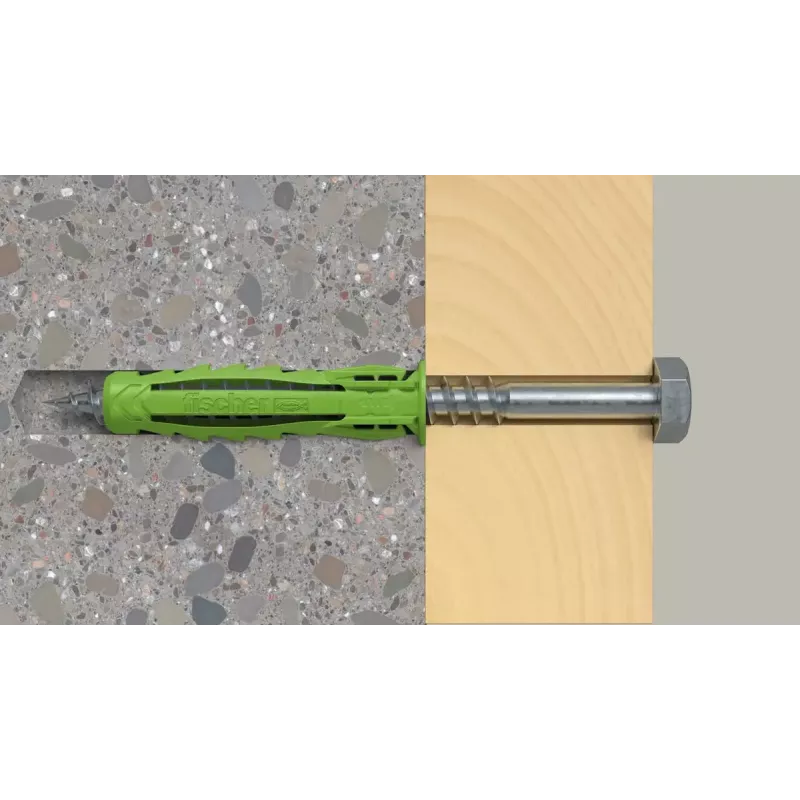

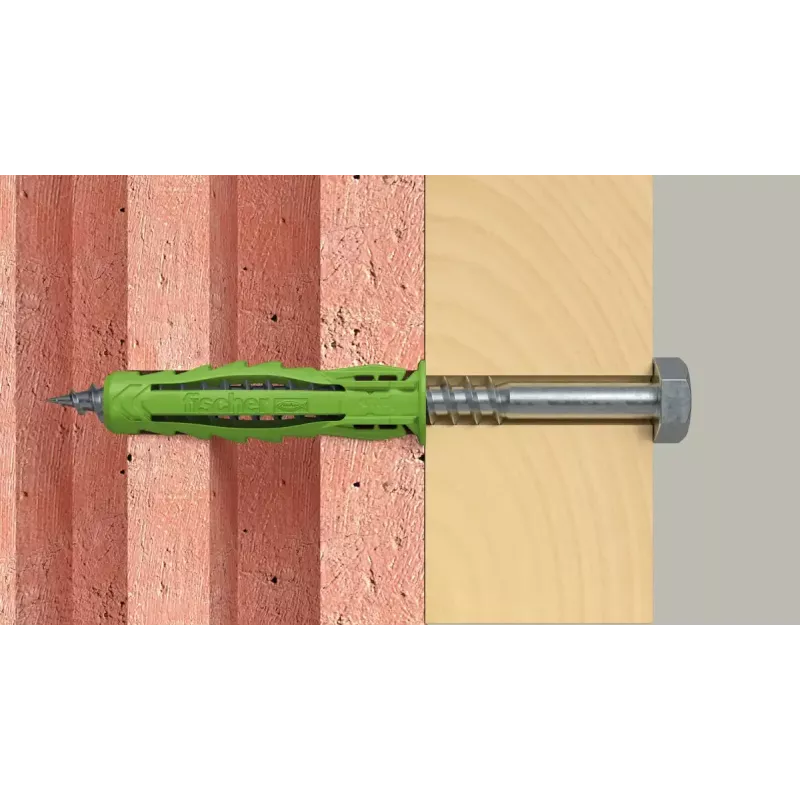

The SX Plus Green is manufactured from a minimum of 50% renewable raw materials, which reduces its environmental footprint. Its 4-way expansion delivers optimum force transmission into the substrate and ensures high load values in solid and perforated building materials. Special fixing blades secure the screw in the plug during insertion, freeing both hands for setting and simplifying overhead applications. The expansion-free plug neck avoids generation of surface expansion forces while screwing, helping to protect tiles and plaster from damage. A pronounced plug edge prevents the anchor from slipping deeper into the drilled hole and the shaped body allows easy insertion with a few light hammer blows.

Suitable for

• Concrete and reinforced concrete
• Masonry and sand-lime brick
• Autoclaved aerated concrete (AAC)
• Gypsum fibre board and plasterboard (where anchor type permits)
• Fixings in overhead and through-fix applications

Key specifications

• Brand: FISCHER
• Model / MPN: 567811
• Anchor length: 50 mm
• Anchor diameter: 10 mm
• Material: plastic with ≥50% renewable raw materials
• Pack quantity: 45 pieces
• EAN: 4048962481372
• Installation types: pre-positioned and push-through

How to use

Drill a hole of the correct diameter and depth for the 10 mm SX Plus Green anchor. Clean the drilled hole of dust and debris. Insert the anchor either pre-positioned into the hole or push it through the fixture when using push-through installation. Lightly tap the anchor into the hole until the pronounced edge rests against the substrate surface. Insert the screw; the fixing blades will fold inward to hold the screw in place. Tighten the screw; the anchor will expand in four directions and clamp securely in the base material. Do not overtighten the screw to avoid damaging the plug or the substrate.

Recommendations

Use the SX Plus Green anchors with screws of matching diameter and appropriate length for the material and load. Choose the correct drill bit and ensure the hole depth and cleaning follow manufacturer guidance. For tiled or delicate surfaces, use the expansion-free neck feature to reduce surface stress; avoid excessive torque to protect tiles and plaster. Refer to FISCHER technical data for exact load values and suitable screw dimensions for each substrate.
