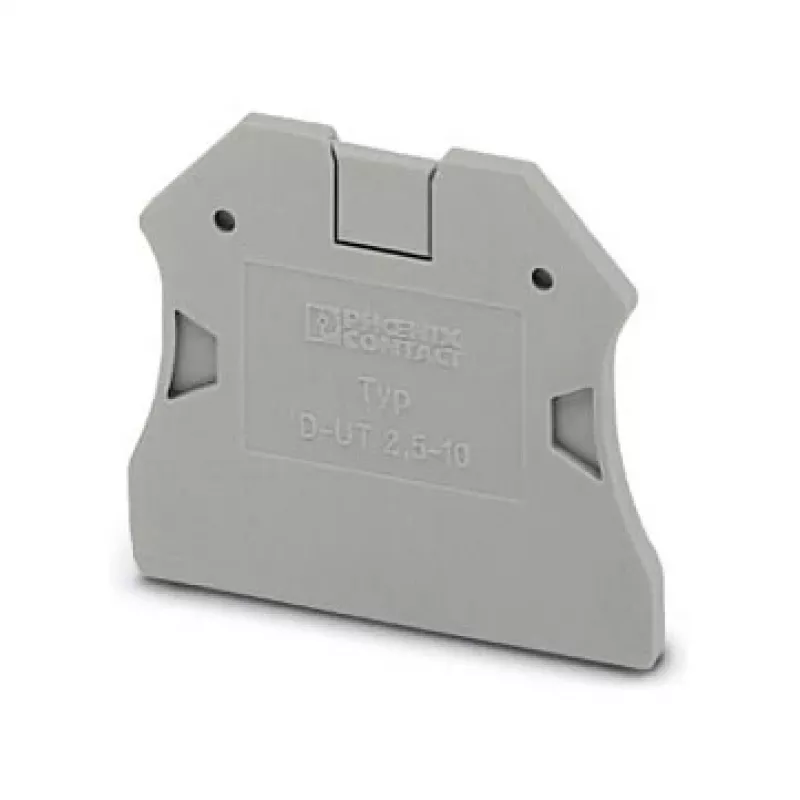

Tapa final Phoenix 3047028 D-UT 2.5/10 para bornes de carril UT 2.5, gris

End cover for UT 2.5 series terminal blocks, providing secure insulation and protection for exposed conductor entries. Snap-on mounting ensures quick installation without tools, while the grey polyamide housing blends seamlessly with standard DIN rail assemblies.

Advantages

Precision-moulded from flame-retardant polyamide (UL 94 V0), this end cover withstands harsh industrial conditions. It maintains clearances and creepage distances, enhancing safety in control cabinets. The cover is RoHS compliant and operates reliably from -60 °C to 105 °C.

Suitable for

• UT 2.5 series terminal blocks
• DIN rail installations in control panels
• Industrial automation and power distribution
• Applications requiring pollution degree 3 and overvoltage category III

Key specifications

• Product type: End cover
• Series: CLIPLINE complete UT
• Colour: Grey
• Material: Polyamide (PA)
• Flammability rating: UL 94 V0
• Mounting: Snap-on
• Operating temperature: -60 °C to 105 °C
• RoHS compliant: Yes

Recommendations

For optimal performance, pair with Phoenix Contact UT 2.5 feed-through terminal blocks. Ensure the cover is fully seated on the terminal block end to maintain proper insulation. Store in a dry environment to preserve material properties.
