Tarjeta de gestión de red AEG SNMP Pro

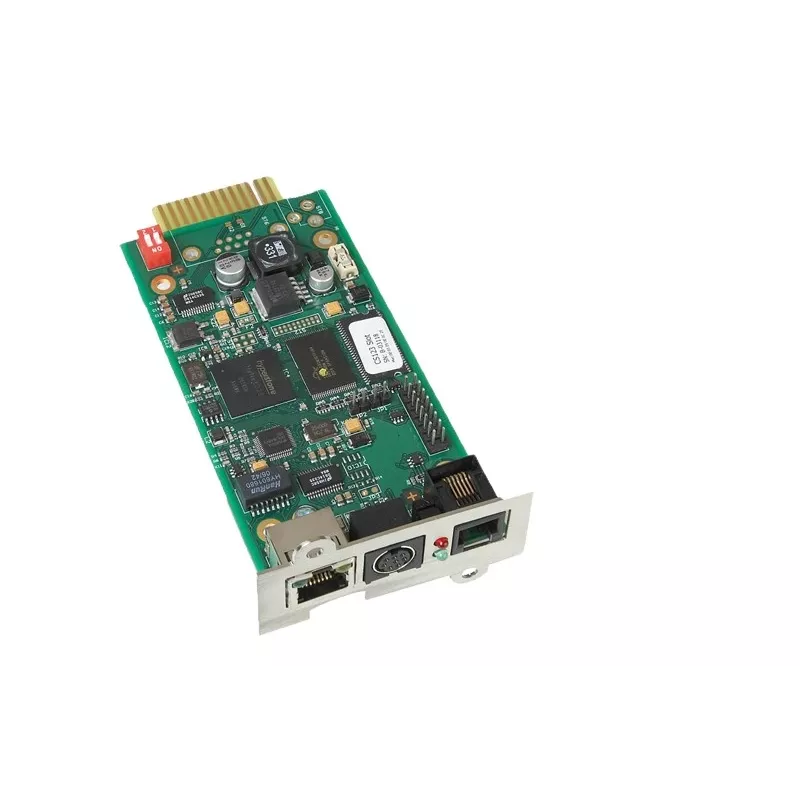

The AEG SNMP Pro network management card provides centralized monitoring and control of UPS units and environmental systems over a network. It connects via Fast Ethernet (10/100 Mbit/s) and is available in a PRO version that extends monitoring to room access control, air-conditioning and fire or smoke detection systems. When paired with the EnvironmentManager, the SNMP PRO card can also process temperature and humidity sensor data. The card is compact (60 × 44 × 120 mm) for flexible installation and supports standard network-management tools.

Advantages

The SNMP Pro card offers web- and WAP-based status viewing, event notifications by e-mail, SMS or network messages, and an integrated RFC1628-compliant SNMP agent compatible with network management systems such as HP OpenView and SunNet Manager. It supports automatic initiation of shutdown and reboot procedures over LAN and allows definition of time- and interrupt-driven events. Fast Ethernet interface ensures reliable network connectivity.

Suitable for

• Monitoring UPS units in server rooms and data centres
• Integrating UPS status into existing network management platforms
• Environmental monitoring when combined with EnvironmentManager (temperature and humidity)
• Facility systems integration including access control, HVAC, and smoke/fire detectors (PRO version)

Key specifications

• Brand: AEG
• Model: SNMP Pro (MPN 6000019557)
• EAN: 4026245195574
• Interface: Fast Ethernet 10/100 Mbit/s
• Dimensions (W × D × H): 60 × 44 × 120 mm
• SNMP: RFC1628-compliant agent

How to use

Install the SNMP Pro card into the compatible UPS or network slot according to the manufacturer’s installation guide, connect it to the LAN via the Fast Ethernet port, and configure network parameters in the device web interface or via supported network management software. Configure alert destinations for e-mail, SMS or network messages, set up automatic shutdown or reboot procedures as required, and integrate with EnvironmentManager or facility systems when applicable.

Recommendations

Place the network management card in a protected environment and ensure firmware and network-management software are kept up to date. Test notification and shutdown procedures during maintenance windows and configure secure access to the web interface and SNMP service.
