Tarjeta de interfaz DeLOCK 62864 interna M.2

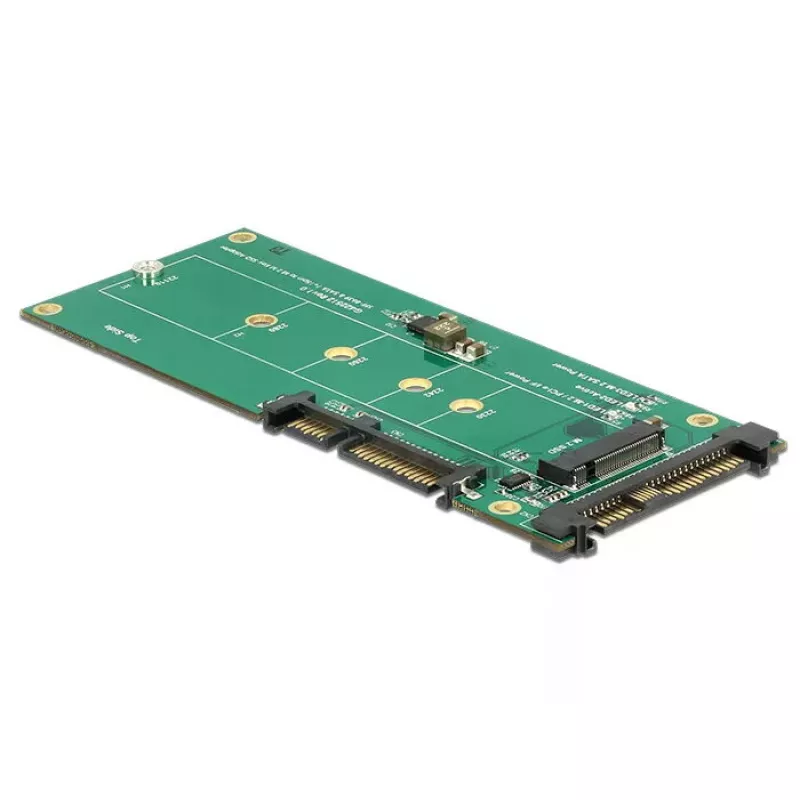

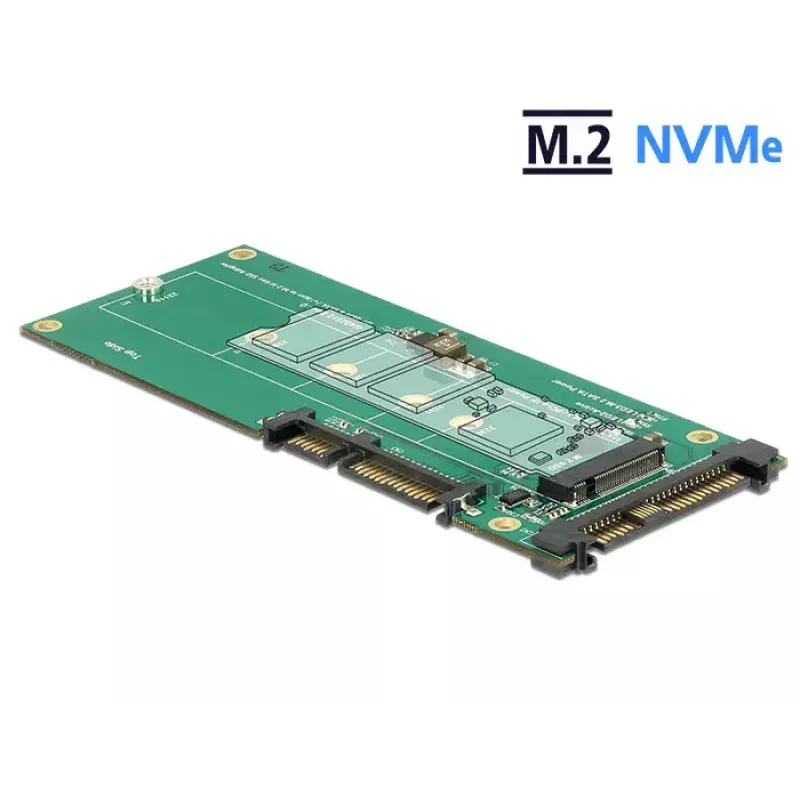

The DeLOCK 62864 internal M.2 interface card provides a flexible adapter solution to install M.2 SSDs in form factors 22110, 2280, 2260, 2242 and 2230. It accepts both PCIe and SATA M.2 modules and connects to the host system via a U.2 interface for PCIe M.2 drives or via the SATA 22‑pin interface when used with SATA M.2 SSDs. The card is compact (52 × 130 × 6 mm) and comes in black and green.

Advantages

The card supports both PCIe and SATA M.2 standards, enabling use of a wide range of SSDs. With a host U.2 interface and an M.2 output interface it provides straightforward internal installation and a maximum data transfer rate of 6 Gbit/s for SATA operation. Its small footprint and standard interfaces simplify integration into desktop or server systems.

Suitable for

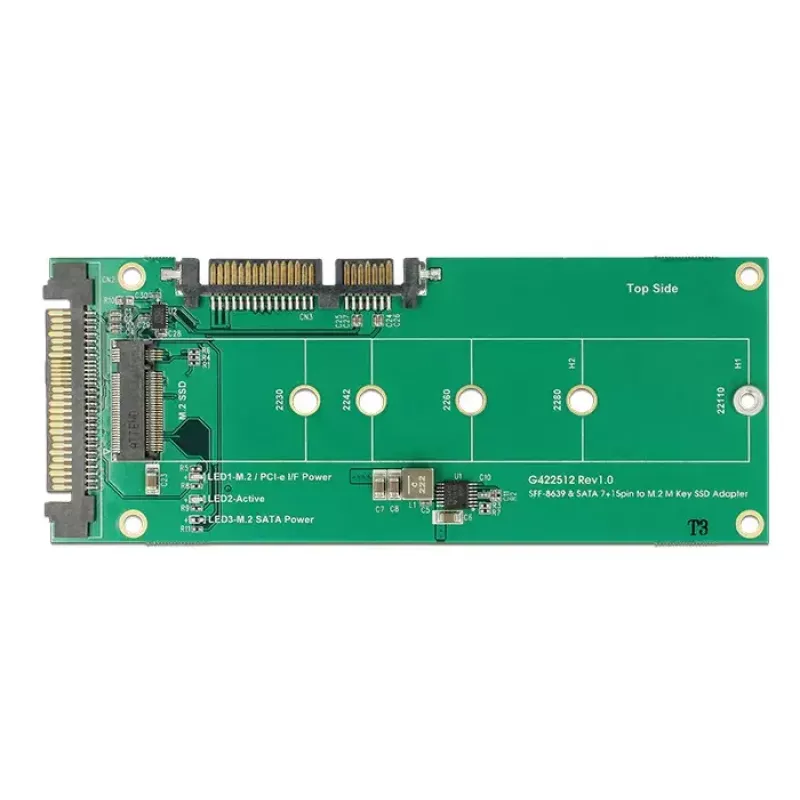

• Installing M.2 SSDs in 22110, 2280, 2260, 2242 and 2230 sizes
• Systems requiring internal M.2 to U.2 or SATA connectivity
• Upgrading storage in desktops or compatible servers

Key specifications

• Model: DeLOCK 62864
• Host interface: U.2
• Output interface: M.2 (supports PCIe and SATA M.2 SSDs)
• Supported M.2 sizes: 22110, 2280, 2260, 2242, 2230
• Maximum data transfer rate: 6 Gbit/s (SATA)
• Internal installation: yes
• Colours: green, black
• Dimensions: 52 × 130 × 6 mm
• Brand: DELOCK
• MPN: 62864
• EAN: 4043619628643

How to use

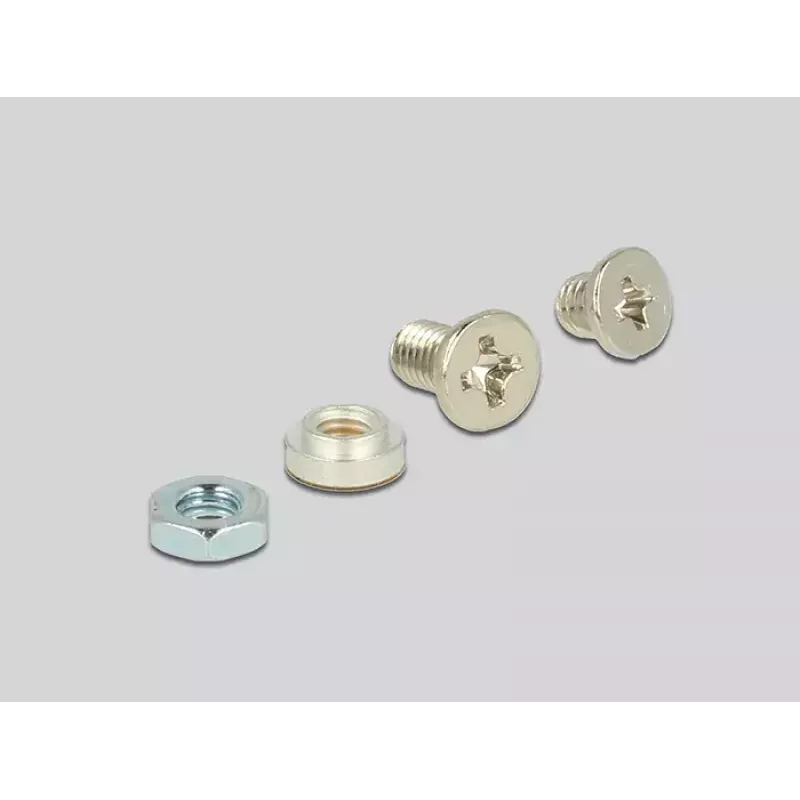

Mount an M.2 SSD of a supported length into the M.2 slot on the adapter and secure it according to the SSD and card mounting points. For PCIe M.2 SSDs, connect the adapter to the host via the U.2 interface. For SATA M.2 SSDs, connect the adapter to a SATA 22‑pin interface on the motherboard or backplane. Install the card internally in the system chassis following standard anti‑static and mounting procedures, then power on the system and confirm the drive is detected by the operating system.

Recommendations

Use compatible M.2 drives of the listed sizes and confirm whether your system supports U.2 or SATA connection types before installation. Observe anti‑static precautions and consult your system or motherboard manual for proper mounting and cabling.
