Tarjeta de interfaz DeLOCK 89561

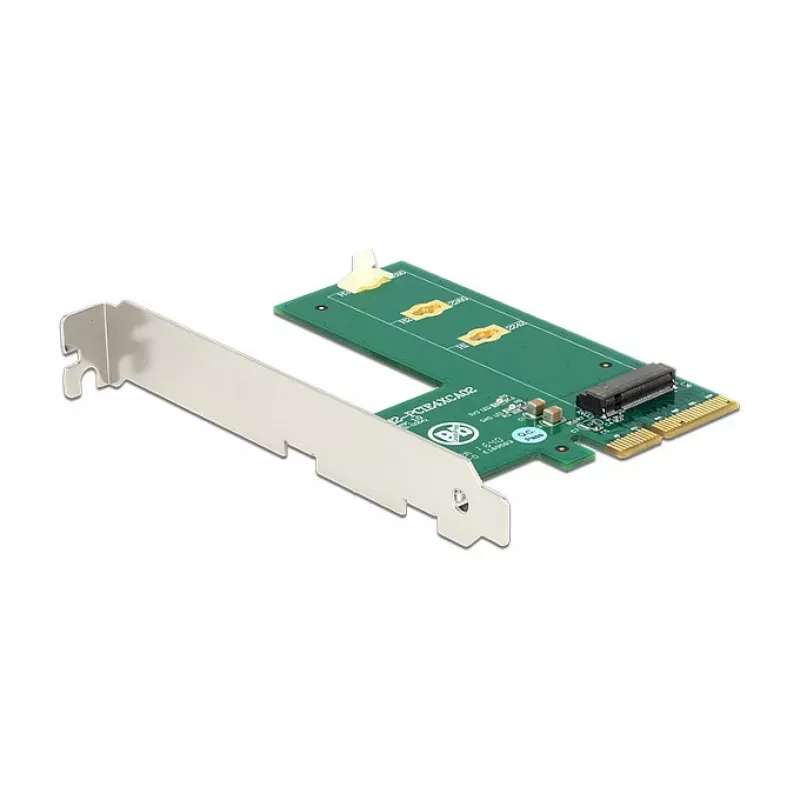

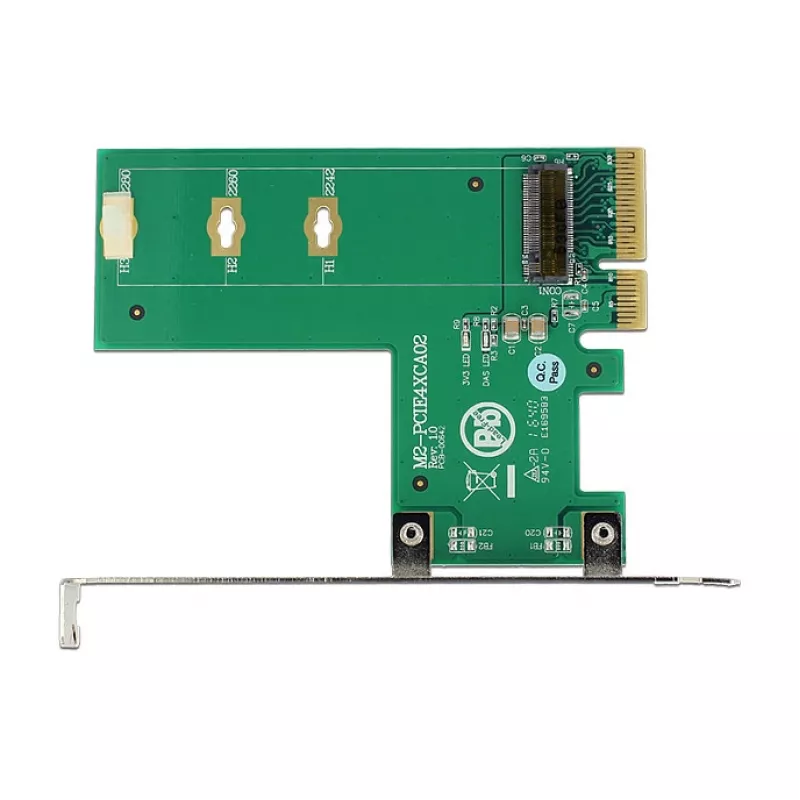

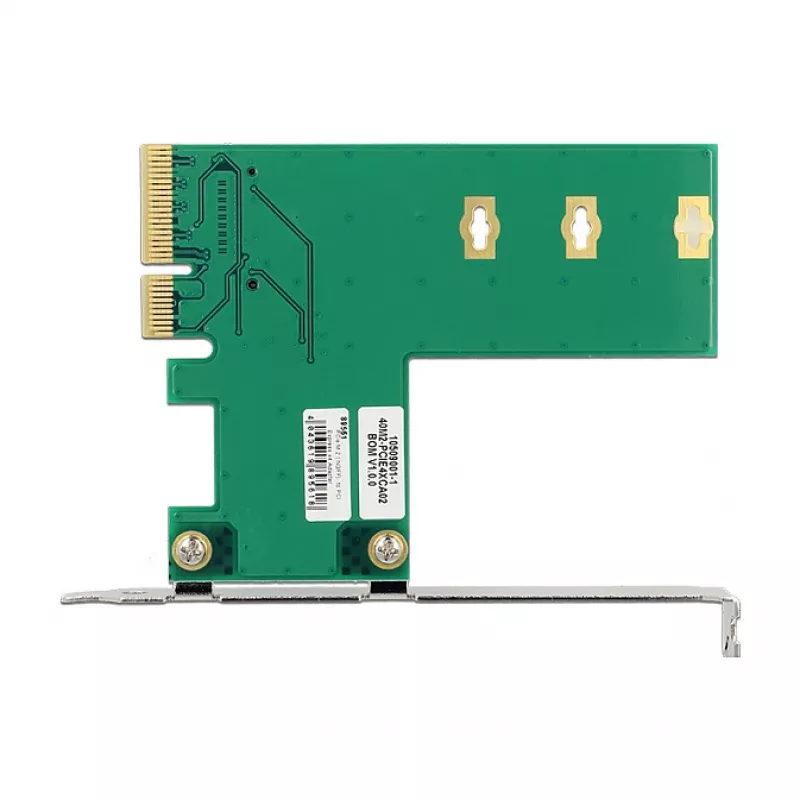

The DeLOCK 89561 is an internal PCI Express interface card that adds one M.2 slot to a desktop PC. It provides an M.2 output interface supporting M.2 SSD modules in sizes 2280, 2260, 2242 and 2230 and connects via a PCIe host interface compatible with PCIe 3.0.

Advantages

The card enables installation of a single M.2 SSD for additional high-speed storage. It supports multiple M.2 module lengths, offers a PCIe 3.0 host interface with a stated maximum data transfer rate of 39 Gbit/s, and is supplied in a boxed package. The product colour is green and white and it installs internally on a standard PCIe slot.

Suitable for

Key specifications

How to use

Power down the PC and unplug it from the mains. Open the computer case, locate a free PCIe slot and insert the DeLOCK 89561 card into the slot until it is firmly seated. Secure the card with the case screw. Insert the M.2 SSD of the supported size into the M.2 connector at the correct angle and fasten it with the appropriate screw or standoff. Close the case, reconnect power and boot the system. Configure the new drive in the operating system or BIOS/UEFI as required.

Recommendations

Install compatible M.2 SSD modules and use the correct mounting hardware for the selected module length. Ensure the motherboard and operating system support booting from an add-in PCIe M.2 adapter if you plan to use the M.2 SSD as a boot drive.
