Tarjeta de interfaz DeLOCK 89568 interna M.2

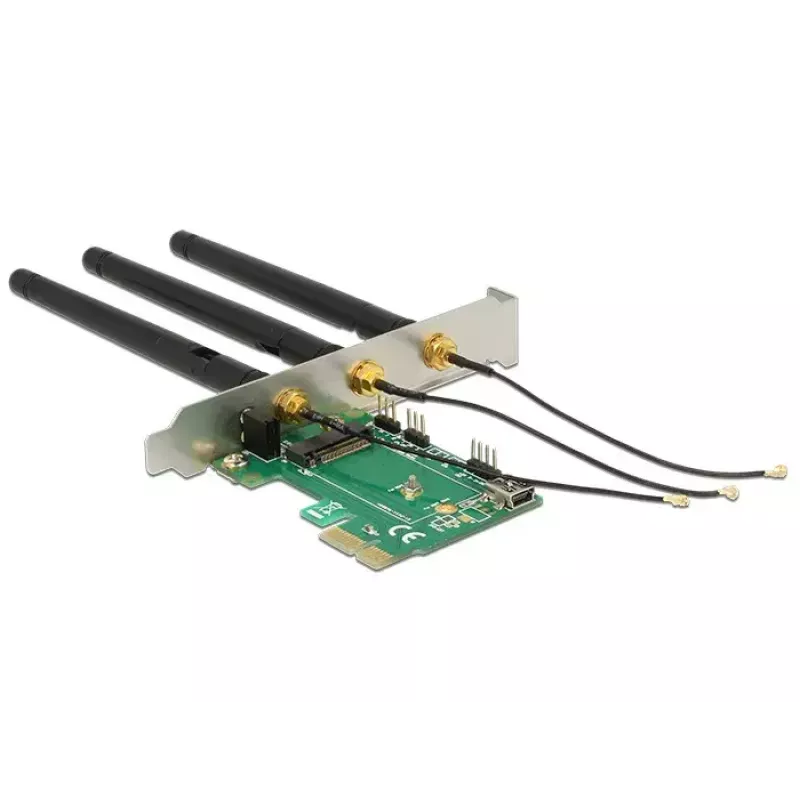

The DeLOCK 89568 is an internal PCI Express interface card that provides one M.2 Key A slot for installing M.2 wireless modules. It accepts modules with USB and PCIe signal types and supports module functions such as WLAN, Bluetooth, GNSS, 3G, HSPA and NFC. The card includes internal USB cabling to connect USB-type modules to the host system, and antenna connectors and cables can be replaced to match the RF connectors of the installed module.

Advantages

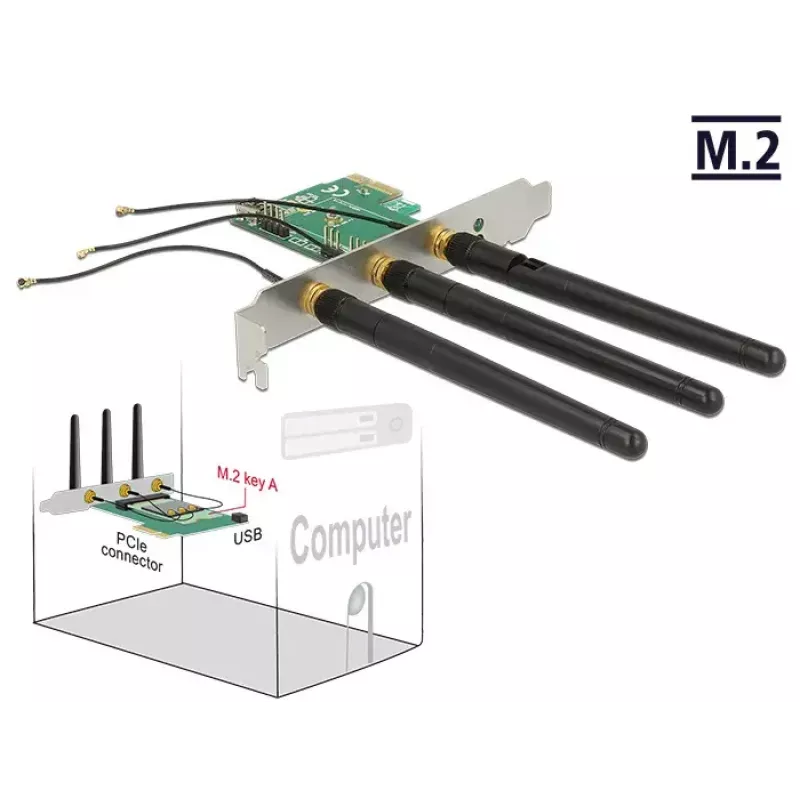

This interface card expands a desktop PC by a single M.2 Key A slot over PCI-E, enabling easy integration of wireless modules with USB or PCIe signalling. It supports dual-function modules (for example WLAN + Bluetooth) and provides internal USB wiring so USB-based modules are recognised by the host. Replaceable antenna connectors and cables allow compatibility with modules that use different RF connectors.

Suitable for

Key specifications

How to use

Install the card into an available PCI Express slot on the motherboard. Insert a compatible M.2 Key A or Key E module into the card socket and secure it according to the module mounting position. Connect the supplied internal USB cable from the card to an internal USB header on the motherboard when using USB-based modules. Attach antenna cables and external antennas as required, replacing connectors if the module uses a different RF connector standard. After installation, install any required drivers for the chosen module so the operating system recognises the new device.

Recommendations

Use only compatible M.2 Key A or Key E modules with the appropriate signal type (USB or PCIe). Ensure the internal USB cable is connected for USB modules and confirm antenna connector type before fitting antenna cables. Follow ESD protection and power-off procedures when installing the card.
