Tarjeta de interfaz interna DeLOCK 62521

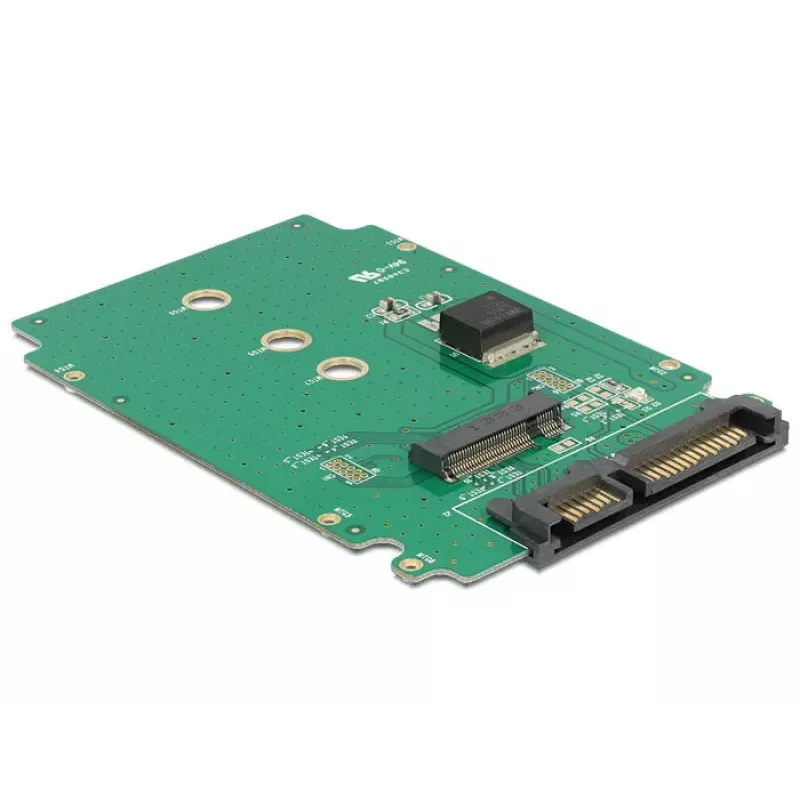

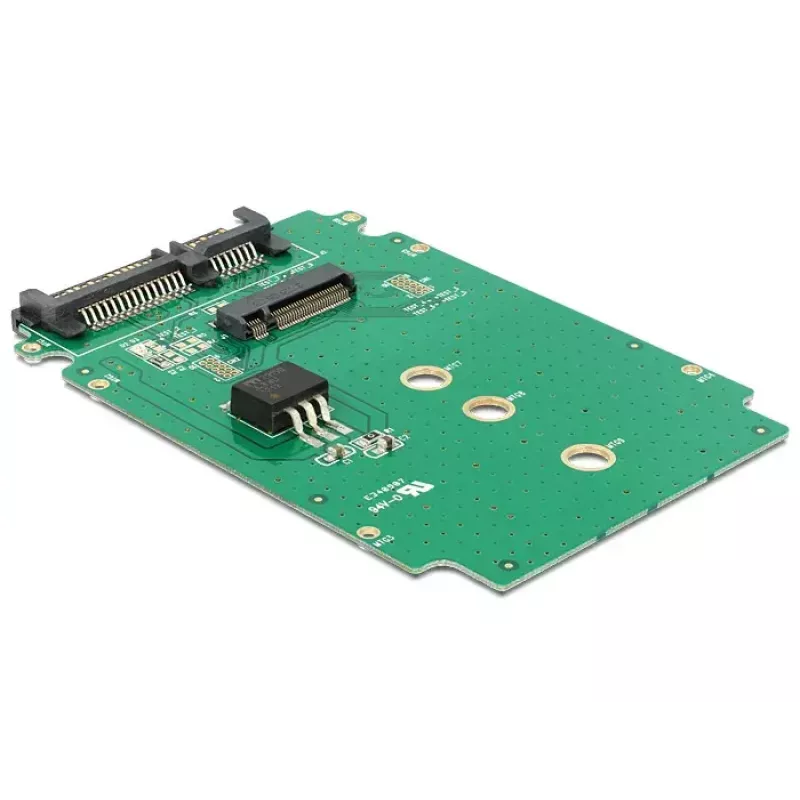

This DeLOCK 62521 internal interface card converts an M.2 SATA SSD (sizes 2230, 2242, 2260) for use as a 2.5″ HDD form factor and installs inside a system via a 22-pin SATA host interface. The card supports SATA host connections with a maximum data transfer rate of 6 Gbit/s and measures 95.5 mm × 65.5 mm × 6.5 mm, providing a compact solution for adding M.2 storage to systems that accept 2.5" drives.

Advantages

The converter allows reuse of M.2 SATA SSDs in systems with 2.5" drive bays, offering backwards-compatible SATA connectivity and hotplug-style internal installation. Its compact dimensions make it suitable for small form-factor systems while supporting SATA transfer speeds up to 6 Gbit/s for fast data access.

Suitable for

• Upgrading systems that accept 2.5" drives with an M.2 SATA SSD
• Converting M.2 SSDs in 2230 / 2242 / 2260 sizes to standard SATA connections
• Internal installations where a 22-pin SATA host interface is available

Key specifications

• Brand: DELOCK
• Model / MPN: 62521
• Supported M.2 sizes: 2230, 2242, 2260
• Host interface: SATA 22-pin
• Maximum data transfer rate: 6 Gbit/s
• Installation: Internal (fits 2.5" drive bays via SATA)
• Dimensions (W × D × H): 95.5 mm × 65.5 mm × 6.5 mm

How to use

Install an M.2 SATA SSD (2230/2242/2260) into the corresponding slot on the DeLOCK 62521 converter and secure it according to the card's mounting points. Slide the converter into the system's internal 2.5" drive location or mount it where a SATA 22-pin connection is accessible. Connect a SATA data cable from the host interface to the motherboard and attach power from the system's SATA power connector. After powering on, the operating system should detect the SSD as a standard 2.5" SATA drive.

Recommendations

Use the converter with M.2 SATA (not NVMe) SSDs only. Ensure the SSD size (2230, 2242 or 2260) matches the card's mounting positions. Verify that your system provides an internal SATA 22-pin interface and appropriate power connectors before installation.
