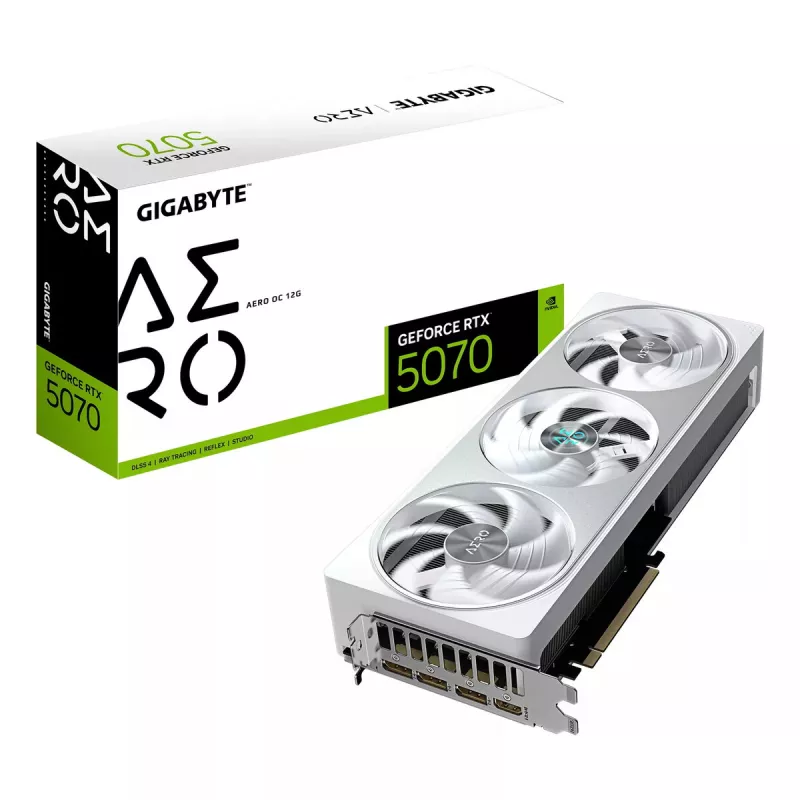

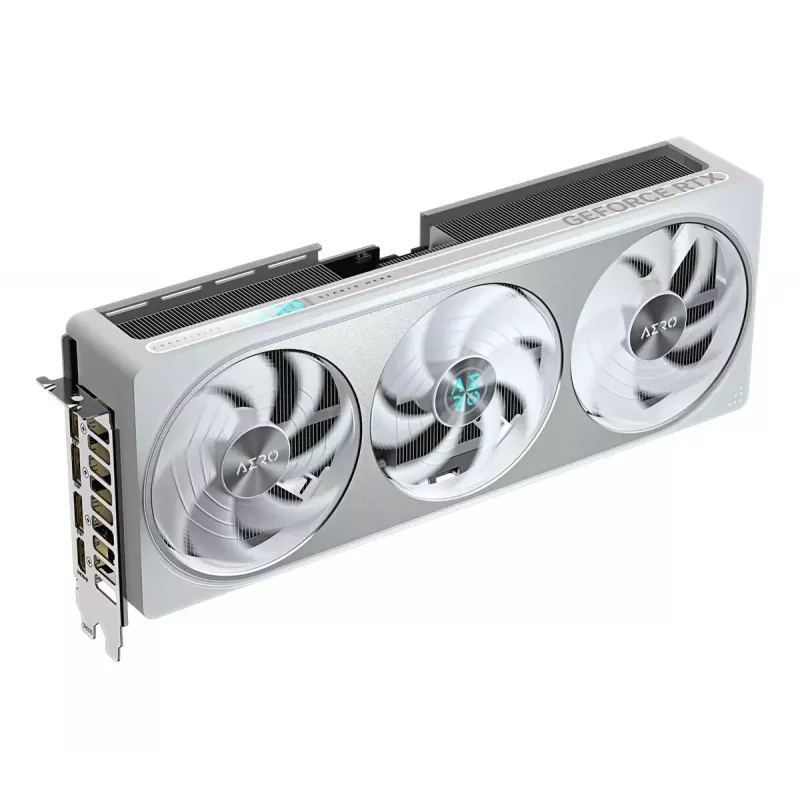

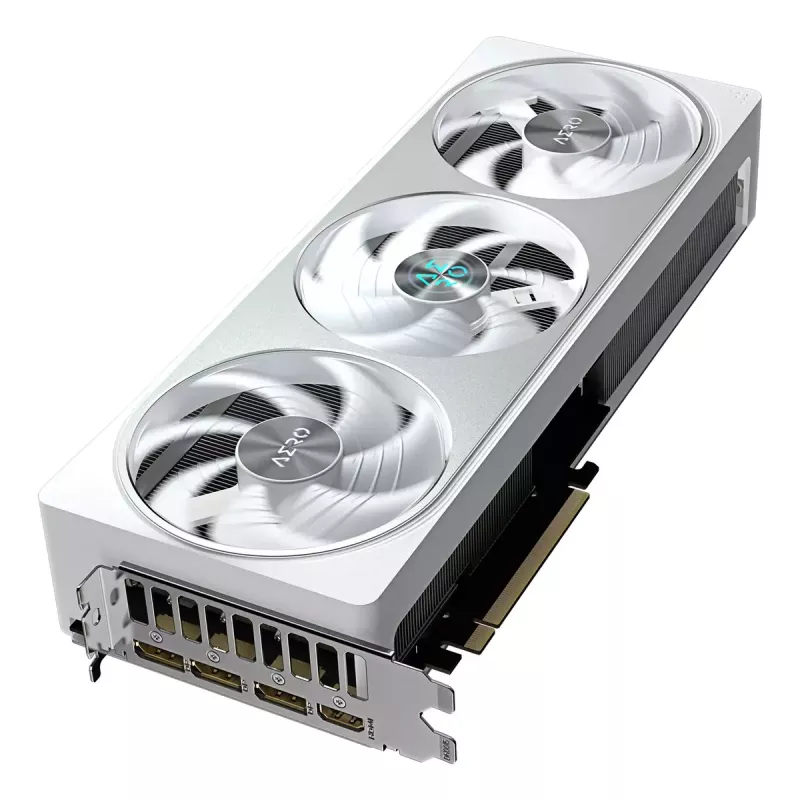

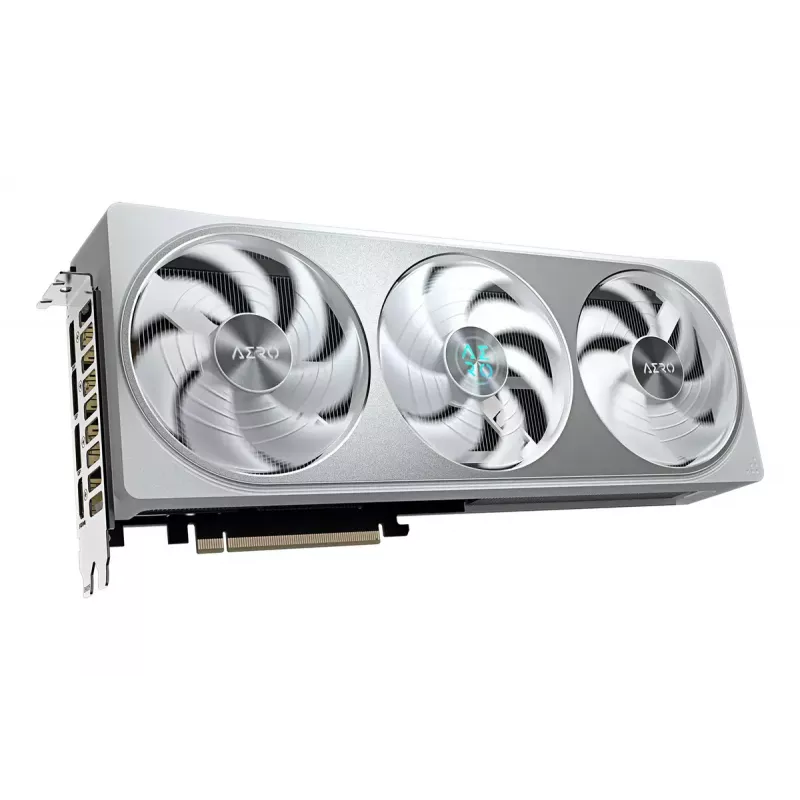

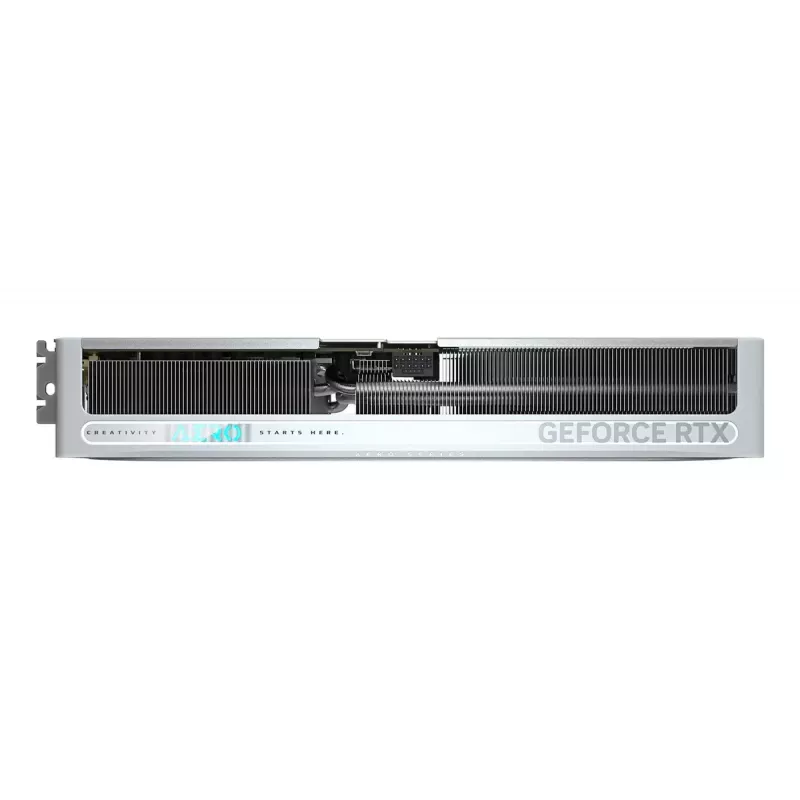

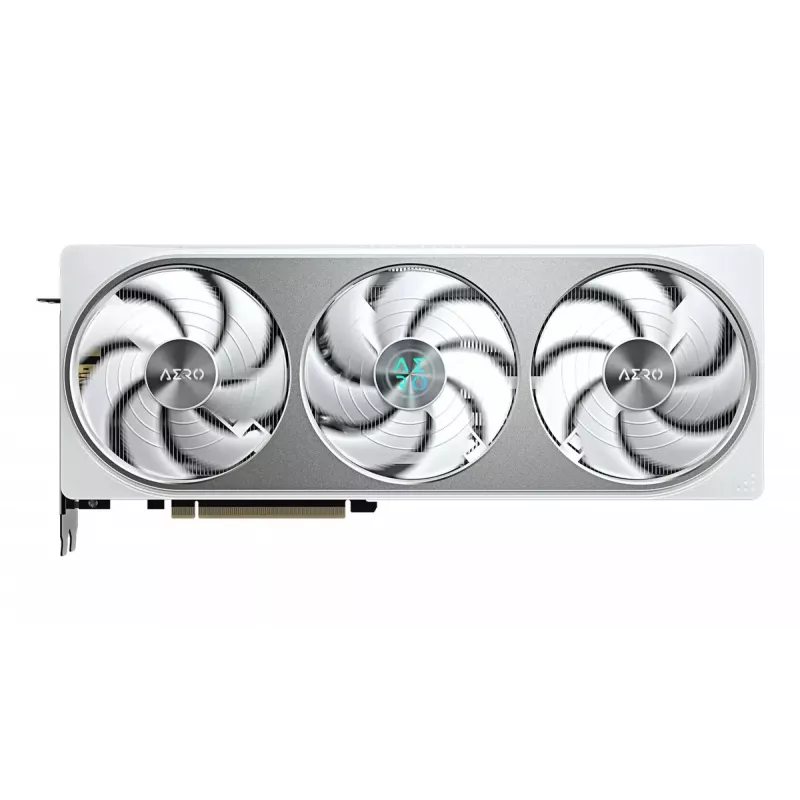

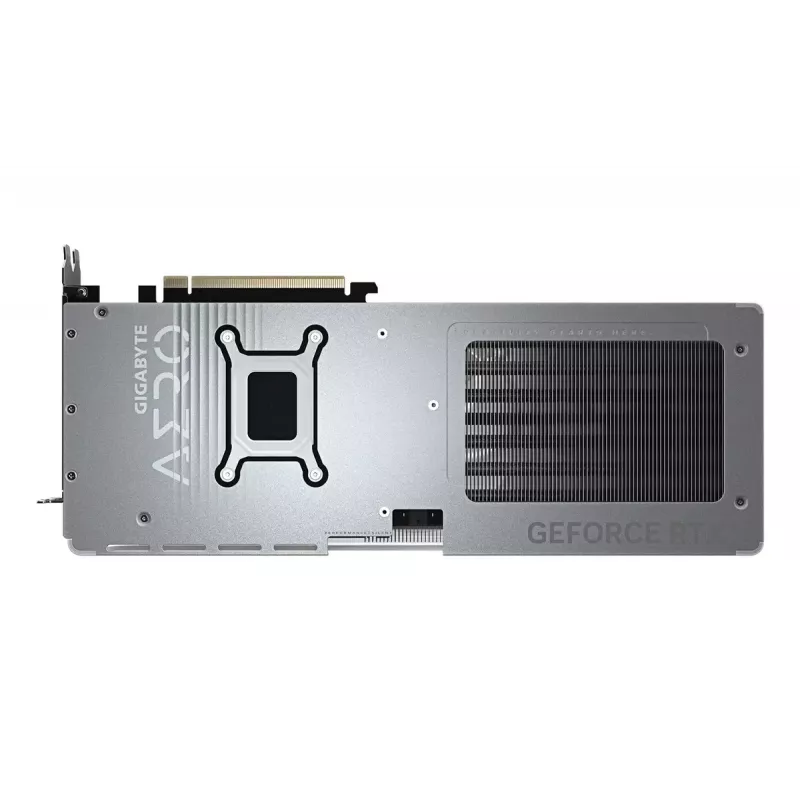

Tarjeta gráfica GIGABYTE GeForce RTX 5070 12GB GDDR7

GIGABYTE GeForce RTX 5070 12GB GDDR7 (GV-N5070AERO OC-12GD) is a discrete PCIe 5.0 graphics card designed for high-resolution gaming and professional workloads. It pairs an NVIDIA GeForce RTX 5070 GPU with 12 GB of GDDR7 memory on a 192-bit bus, a 2625 MHz core clock (AERO OC tuning) and memory rated at 28000 MHz, supporting up to 7680 x 4320 output resolution. Outputs include three DisplayPort 2.1a and one HDMI 2.1b. The card uses an active triple-fan cooling solution and has a mass of approximately 2 kg.

Advantages

The GIGABYTE GeForce RTX 5070 delivers modern GPU architecture performance combined with high-bandwidth GDDR7 memory for improved frame rates at high resolutions. PCI Express 5.0 interface ensures compatibility with current and next-generation platforms while multiple video outputs (DP 2.1a and HDMI 2.1b) support multi-monitor and high-resolution displays. The triple-fan active cooling system maintains thermal stability under sustained load, helping the card sustain boost clocks during gaming and content-creation tasks.

Suitable for

• High-resolution gaming (up to 7680 x 4320)
• Content creation and video editing
• Multi-monitor workstation setups
• 3D rendering and GPU-accelerated compute tasks

Key specifications

• Graphics processor: GeForce RTX 5070
• Memory: 12 GB GDDR7
• Memory clock speed: 28000 MHz
• Memory bus: 192 bit
• Core clock (AERO OC): 2625 MHz
• Interface: PCI Express x16 5.0
• Maximum resolution: 7680 x 4320

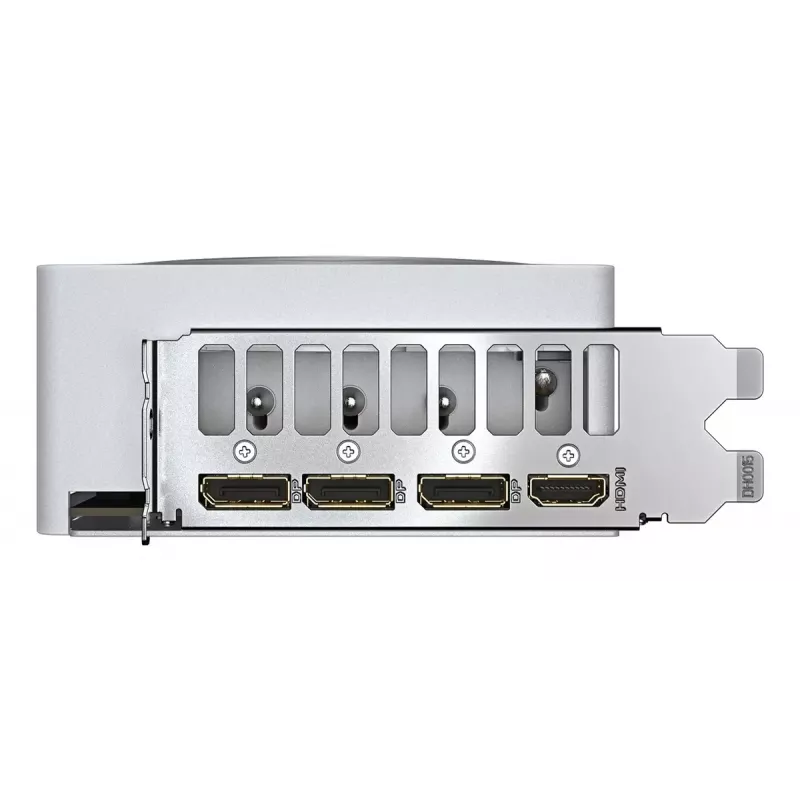

• Video outputs: 3× DisplayPort 2.1a, 1× HDMI 2.1b
• Weight: ~2 kg
• Manufacturer part number (MPN): GV-N5070AERO OC-12GD
• EAN: 4719331355852

How to use

Install the card into a PCI Express x16 5.0 compatible motherboard slot, secure it to the case, and connect required power cables from the system PSU according to the card’s power connector(s). Connect display cables to DisplayPort 2.1a or HDMI 2.1b outputs depending on your monitor. Install the latest NVIDIA drivers from the official NVIDIA or GIGABYTE website and configure display and performance settings through the driver control panel or GIGABYTE utilities.

Recommendations

Ensure your system PSU provides sufficient wattage and the necessary power connectors for the graphics card. Maintain adequate case airflow and periodic cleaning of fans and heatsinks. Use the latest firmware and drivers for optimal stability and performance, and match display cables and monitor inputs to the card’s supported standards for full-resolution and refresh-rate support.
