Techly ICA-PLB 148M Soporte de pared para TV 139,7 cm (55 inch) negro

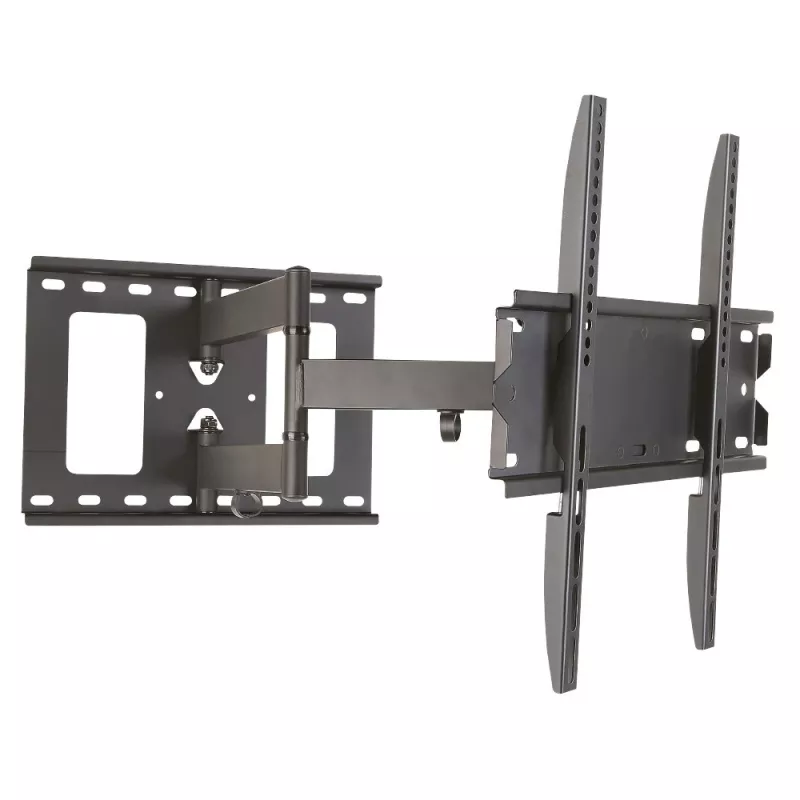

Universal bracket for fixing a TV or monitor (LED / LCD) to the wall. The bracket fits most 32"–55" screens and is designed for home, office and commercial installations, providing a compact wall-mounted solution with integrated cable management.

Advantages

The mount supports VESA patterns up to 400 x 400 mm and a maximum load of 50 kg. It offers horizontal rotation and tilt adjustment for optimal viewing angles, includes a bubble level and a horizontal adjustment system to simplify alignment, and integrates cable management to keep cables tidy.

Suitable for

• Wall-mounting LED and LCD TVs from 32" to 55"
• Mounting a single display in living rooms, bedrooms or offices
• Retail or commercial displays requiring a secure wall installation

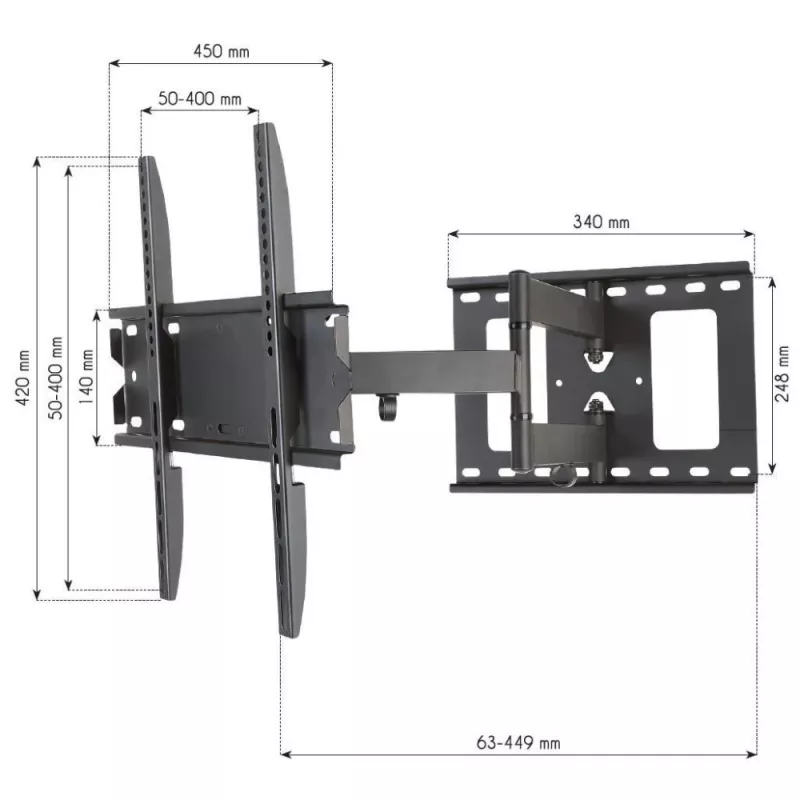

Key specifications

• Screen size compatibility: 32"–55" (maximum 139.7 cm / 55")
• VESA compatibility: up to 400 x 400 mm (supports common 100 x 100 mm and other patterns)
• Maximum supported weight: 50 kg

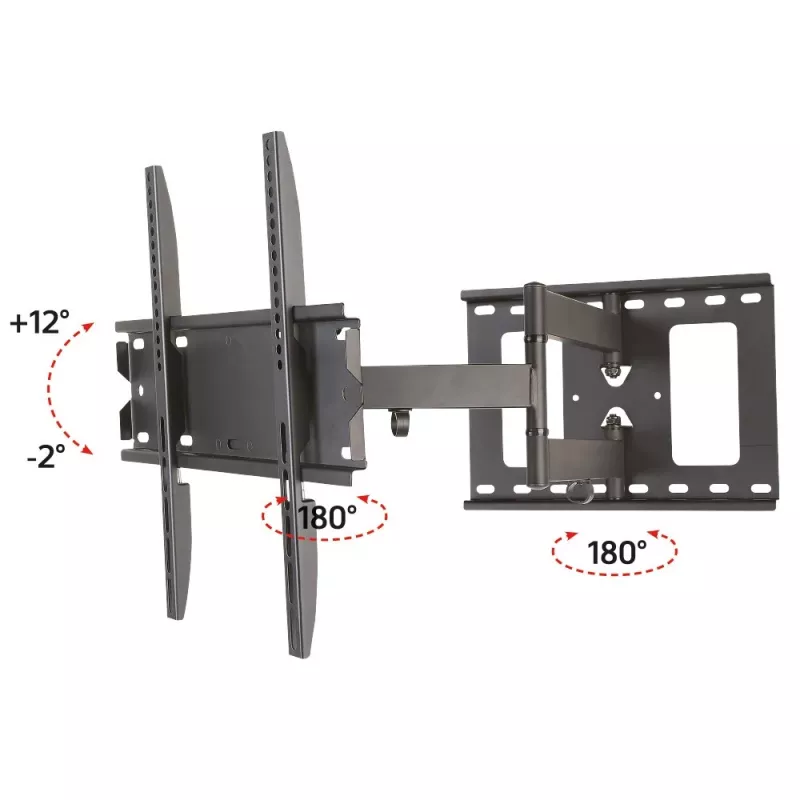

• Horizontal rotation: ±90°
• Tilt range: -2° to +12°
• Maximum extension: 500 mm
• Distance from wall (closed): 63 mm
• Color: black

How to use

Position the wall plate on a suitable load-bearing wall and mark the fixing points using the included mounting template. Drill holes, insert the supplied plugs and secure the wall plate with the provided screws. Attach the bracket arms to the TV using the appropriate VESA holes and fasteners, then hang the TV on the wall plate. Use the horizontal adjustment system and bubble level to align the screen, adjust tilt and rotation to the desired viewing angle, and route cables through the integrated cable management.

Recommendations

Ensure the wall and fixings are suitable for the combined weight of the mount and display. Use appropriate tools and, if unsure about wall structure or load-bearing capacity, consult a professional installer.
