Techly soporte de pared fijo TV LCD LED 42-80 pulgadas

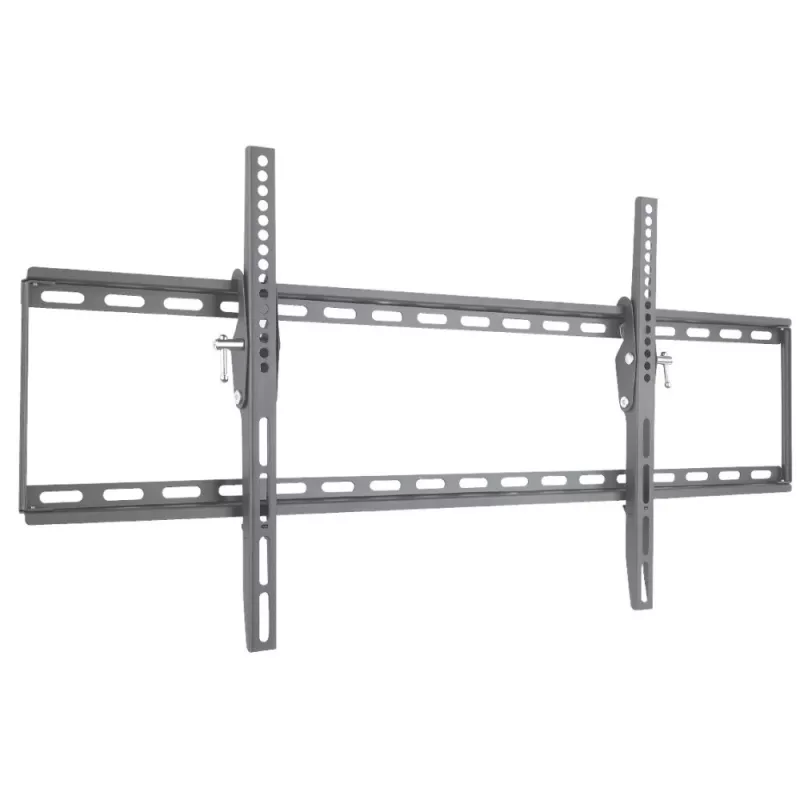

The Techly ICA-PLB-161XL TV mount is a fixed-to-wall mounting solution for a single display between 42" and 80". Designed in black with a compact profile, it supports screens up to 60 kg and accommodates VESA patterns from 200 x 200 mm up to 800 x 400 mm. The mount provides a minimal distance to the wall of 3.6 cm and offers a limited tilt adjustment of 0 to 12° to help achieve suitable viewing angles while keeping a low visual profile in living rooms, offices or meeting spaces.

Advantages

The mount combines broad VESA compatibility and a high load capacity to support a wide range of modern flat-panel TVs. Its small wall clearance preserves a neat, recessed look and reduces the footprint of the installation. The tilt range allows for minor angle correction to reduce glare and improve sightlines without needing an articulating arm. The black finish integrates with most TV designs and interior environments.

Suitable for

• Mounting a single flat-panel TV in a living room or home theatre
• Installation in offices, conference rooms or reception areas
• Wall-mounting displays in classrooms or training spaces
• Use where a low-profile, near-wall installation is desired

Key specifications

• Supported screen size: 42" to 80"
• Maximum weight capacity: 60 kg

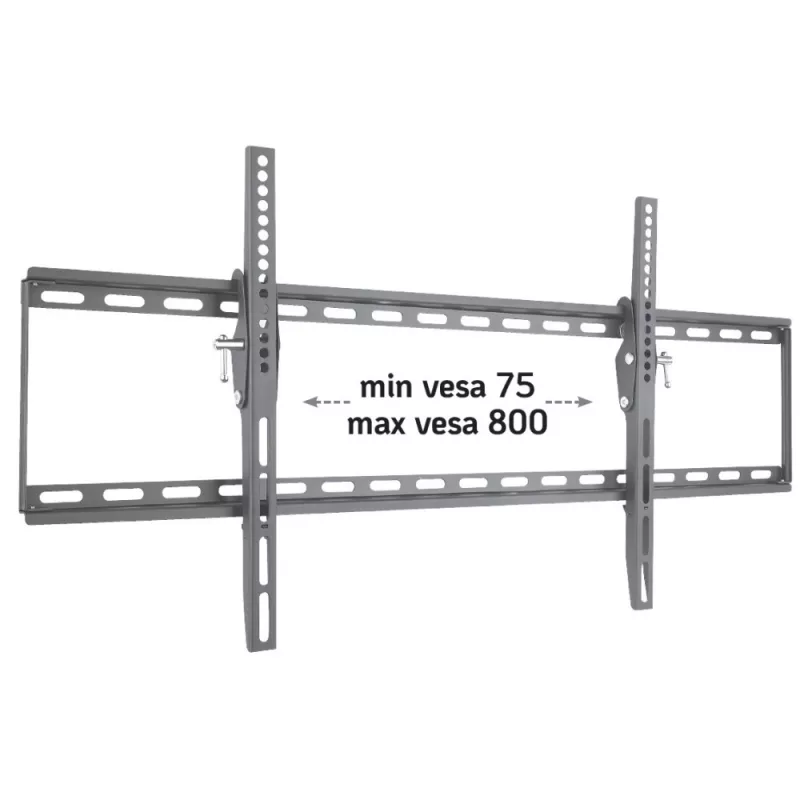

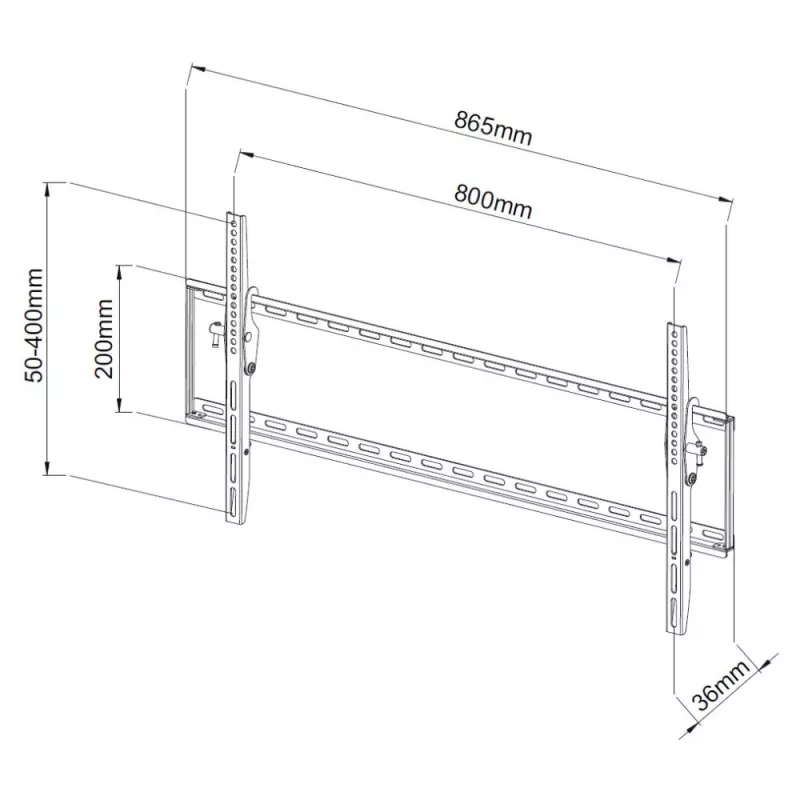

• VESA compatibility: from 200 x 200 mm up to 800 x 400 mm
• Tilt range: 0° to 12°
• Minimum distance to wall: 3.6 cm
• Number of displays supported: 1
• Product colour: Black

How to use

Choose a suitable wall surface able to carry the specified maximum weight and mark mounting points according to the VESA pattern of your TV. Fix the mounting bracket to the wall using appropriate anchors and fasteners for the wall material, then attach the TV adapter plates to the television using the matching VESA holes. Lift and secure the TV onto the wall plate and confirm the mechanical locks or safety screws are engaged. Adjust the tilt within the 0–12° range to obtain the desired viewing angle and check that cables have sufficient slack and proper routing.

Recommendations

Verify wall construction and use appropriate hardware for concrete, brick or stud walls; do not exceed the 60 kg maximum load. If in doubt, consult a professional installer to ensure safe and stable mounting. Regularly check mounting fasteners and the tilt adjustment for any signs of loosening.
