TECLINE Cable de conexión de fibra óptica OS2 monomodo SC dúplex a LC dúplex, 9/125 µm, UPC, LSZH, amarillo, 7,5 m 39989607

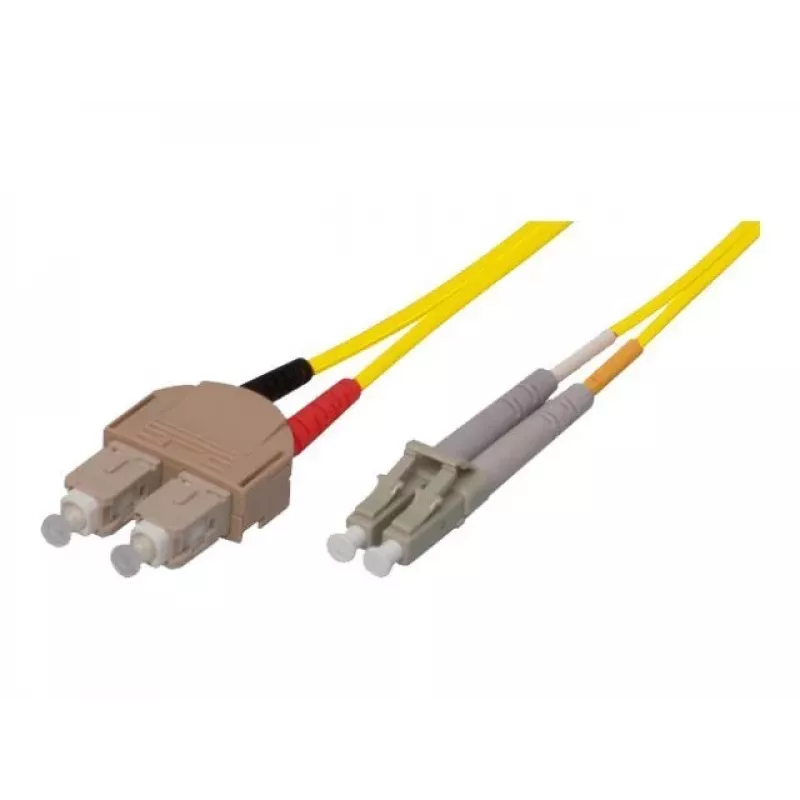

Single-mode OS2 fibre patch cable with SC Duplex to LC Duplex connectors, UPC polish, and LSZH yellow jacket. Delivers low insertion loss and stable performance for high-speed optical links up to 7.5 metres.

Advantages

Zirconia ceramic ferrules ensure precise alignment and durability. LSZH jacket reduces toxic smoke in case of fire. Duplex construction supports bidirectional communication over a single cable.

Suitable for

• Telecom and data centre patching
• FTTH and enterprise backbone connections
• High-density fibre distribution areas

Key specifications

• Fibre type: OS2 single-mode, 9/125 µm
• Connectors: SC Duplex to LC Duplex, UPC polish
• Jacket: LSZH, yellow, 3.0 mm diameter
• Insertion loss: < 0.2 dB, return loss: > 50 dB
• Bend radius: 10D dynamic, 20D static

Recommendations

Verify connector compatibility and required bend radius before installation. Use proper fibre cleaning tools to maintain performance.
