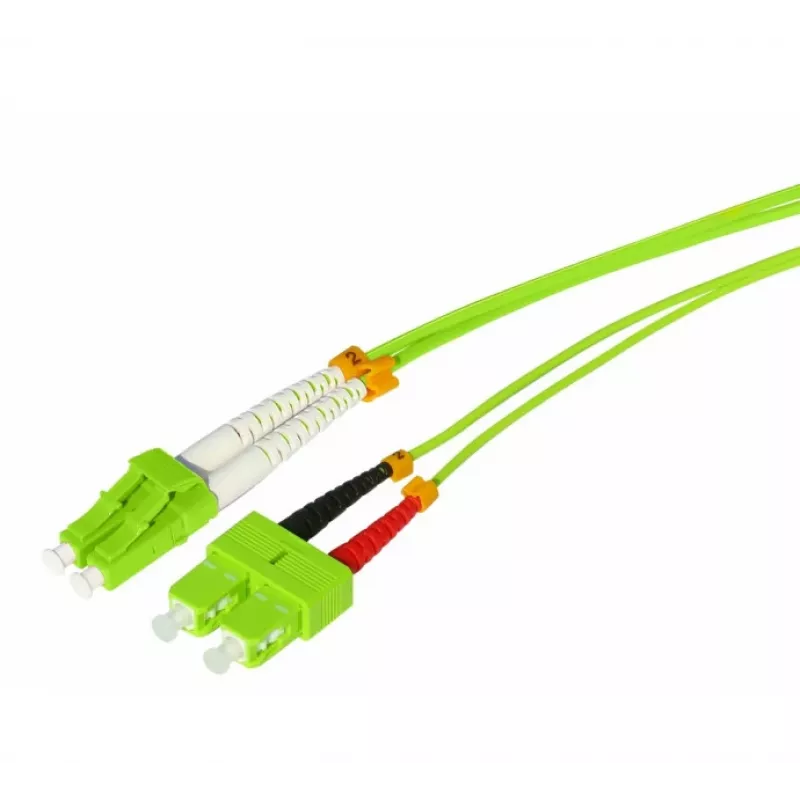

Tecline HD cable de parcheo de fibra óptica OM5 50/125 µm LC dúplex a SC dúplex, verde lima, 1,0 m 796LS01

In data centers and high-speed enterprise networks, this Tecline HD fiber optic patch cable connects switches, servers, and storage systems with OM5 multimode fiber. The LC duplex to SC duplex connectors provide a reliable link for 40/100/200/400 Gigabit Ethernet and Fibre Channel applications.

Key specifications

• Fiber type: Multimode OM5, 50/125 µm core/cladding
• Connectors: LC Duplex to SC Duplex
• Cable length: 1.0 m
• Jacket color: Lime green
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 20 dB
• Attenuation: ≤ 2.3 dB/km at 850 nm and 953 nm
• Effective modal bandwidth: 4700 MHz·km at 850 nm, 2470 MHz·km at 953 nm
• Operating temperature: -20°C to +70°C

Why choose it

OM5 fiber supports short-wavelength division multiplexing (SWDM), enabling multiple wavelengths over a single fiber pair. This reduces cabling complexity and cost in high-density environments. The LSZH jacket emits low smoke and no halogens in case of fire, improving safety in enclosed spaces.

Ideal use cases

• Data center interconnects
• High-speed backbone links
• Fibre Channel storage networks
• 40/100/200/400 Gigabit Ethernet

Good to know

The lime green jacket provides easy identification of OM5 fiber. The duplex design includes two fibers for bidirectional communication. The cable is 1.0 m long, ideal for short patching within racks or between adjacent equipment.
