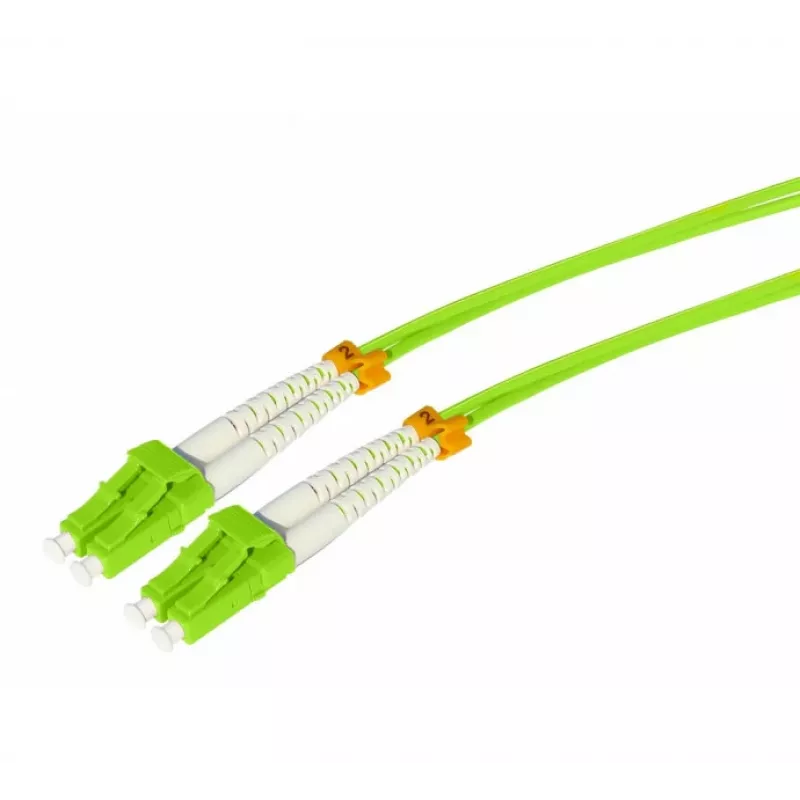

Tecline HD Cable de parcheo de fibra óptica OM5 LC dúplex a LC dúplex multimodo, 50/125 µm, verde lima, 10 m 796LL10

This Tecline HD fiber optic patch cable delivers high-speed multimode connectivity with OM5 fiber, supporting data rates up to 100 Gbps. Its lime green jacket and LC duplex connectors make it ideal for high-density data center and enterprise network installations.

Advantages

OM5 fiber supports short wavelength division multiplexing (SWDM), enabling multiple wavelengths over a single fiber pair and reducing cabling complexity. The LC duplex connectors offer a compact, high-density solution with low insertion loss.

Suitable for

• Data centers requiring high-speed links up to 100 Gbps
• Enterprise networks and storage area networks (SAN)
• Backbone connections in LAN environments

Key specifications

• Cable type: Fiber optic patch cable, multimode OM5
• Fiber core/cladding diameter: 50/125 µm
• Connectors: LC duplex to LC duplex
• Length: 10 m
• Jacket colour: Lime green
• Max data rate: 100 Gbps
• Optimized wavelengths: 850 nm and 953 nm
• Insertion loss: < 0.3 dB per connector
• Return loss: > 30 dB

Recommendations

For best performance, pair with OM5-compatible transceivers and ensure proper bend radius during installation.
