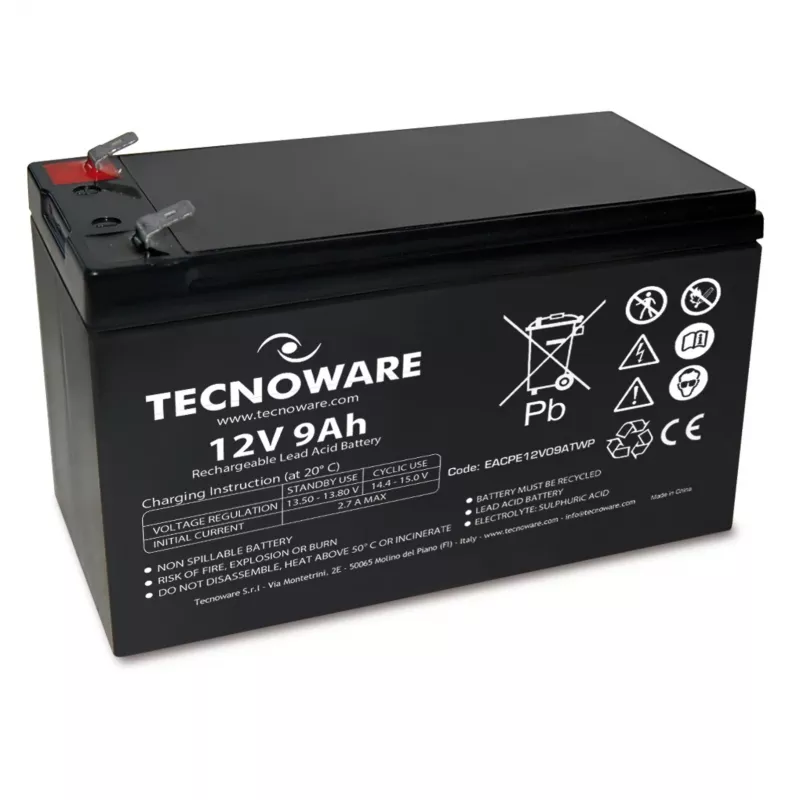

TECNOWARE batería de plomo-ácido sellada 12V 9Ah con conectores Faston 6,3mm

The TECNOWARE EACPE12V09ATWP is a high-quality sealed lead-acid (SLA) battery designed for reliable backup power in UPS systems, security alarms, emergency lighting, and other standby applications. With a nominal voltage of 12V and a capacity of 9Ah (20-hour rate), this maintenance-free AGM battery delivers consistent performance and long service life.

Advantages

This battery features Absorbent Glass Mat (AGM) technology, ensuring low internal resistance, high discharge rates, and excellent rechargeability. It is completely maintenance-free, with no need to add water or electrolyte. The Faston 6.3mm (F2) terminals allow for easy and secure connections. Designed for float or cyclic use, it offers a design life of 3-5 years in standby applications.

Suitable for

• UPS (Uninterruptible Power Supply) systems
• Security and alarm systems
• Emergency lighting
• Telecommunications equipment
• Medical devices
• Portable power tools and instruments

Key specifications

• Battery Type: Sealed Lead-Acid (SLA) / VRLA / AGM
• Nominal Voltage: 12V
• Nominal Capacity: 9Ah (20HR rate to 1.75V/cell)
• Terminal Type: Faston 6.3mm (F2)
• Technology: Absorbent Glass Mat (AGM)
• Design Life: 3-5 years (Eurobat 'Standard Commercial')
• Internal Resistance: Approx. 19 mΩ
• Max. Discharge Current: 100A (5 sec)
• Float Charge Voltage: 13.5V - 13.8V (at 25°C)
• Cycle Use Voltage: 14.4V - 15.0V (at 25°C)
• Self-Discharge Rate: Less than 3% per month (at 20°C)
• Operating Temperature Range (Discharge): -15°C to 50°C
• Operating Temperature Range (Charge): -15°C to 40°C
• Operating Temperature Range (Storage): -15°C to 40°C
• Container Material: ABS (UL94-HB)
• Maintenance: Maintenance-Free
• Rechargeable: Yes
• Total Height (with terminals): 98 mm
• Certifications: CE, ISO9001, ISO14001

Recommendations

For optimal performance and longevity, use this battery with a compatible charger that provides the correct float or cycle voltage. Ensure proper ventilation and avoid deep discharges. Always recycle old batteries responsibly.
