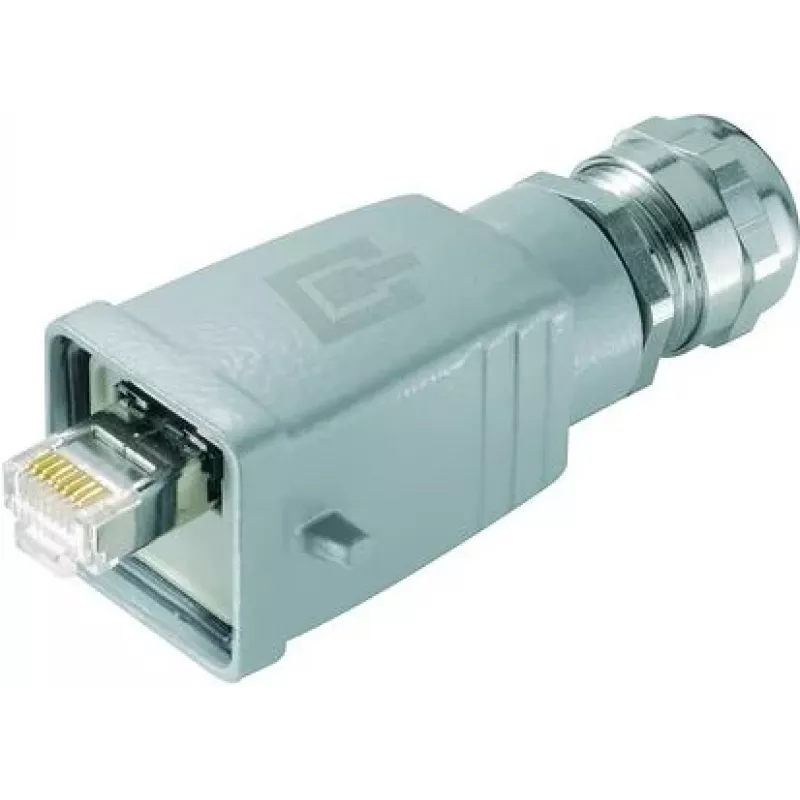

Telegärtner 100007467 Conector sensor/actuador RJ45 macho, Cat.6A, apantallado, montaje en campo, 1 ud.

Industrial environments demand connectors that can handle vibration, temperature swings, and repeated re-termination without compromising 10-Gigabit performance. The Telegärtner 100007467 field-mountable RJ45 plug meets that need with a zinc die-cast housing and tool-free IDC termination for solid or stranded conductors.

Who is it for

Network installers and maintenance teams working with sensor/actuator cabling in automation, building technology, or harsh industrial settings. Anyone who needs a reliable, re-terminable Cat.6A plug without special tools.

Main features

• Cat.6A performance for 10GBASE-T up to 500 MHz
• Shielded (STP) design with nickel-plated zinc die-cast housing
• Field-mountable, tool-free IDC termination for solid (AWG 24/1–22/1) and stranded (AWG 27/7–22/7) conductors
• Supports cable diameters from 5.0 mm to 9.0 mm
• Gold-plated phosphor bronze contacts, 8P8C, ≥750 mating cycles
• Re-terminable up to 4 times
• PoE, PoE+, and 4PPoE (IEEE 802.3af/at/bt) support
• Operating temperature -40°C to +85°C

Specifications

• Connector type: RJ45 plug (8P8C)
• Performance category: Cat.6A (ISO/IEC 11801, EN 50173-1, TIA/EIA-568-C.2)
• Shielding: Shielded (STP)
• Termination: Field-mountable, tool-free IDC
• Conductor gauge: solid AWG 24/1–22/1, stranded AWG 27/7–22/7
• Cable diameter: 5.0–9.0 mm
• Housing: Zinc die-cast, nickel-plated
• Contact material: Phosphor bronze, gold over nickel plating
• Mating cycles: ≥750
• Re-terminability: up to 4 times
• PoE support: IEEE 802.3af/at/bt (PoE, PoE+, 4PPoE)
• Operating temperature: -40°C to +85°C
• Standards compliance: IEC 60603-7-51

Tips

For best performance, use with Cat.6A shielded cable and ensure proper grounding of the connector housing. The tool-free IDC makes field installation quick, but practice on a scrap cable first to get a feel for the termination force.
