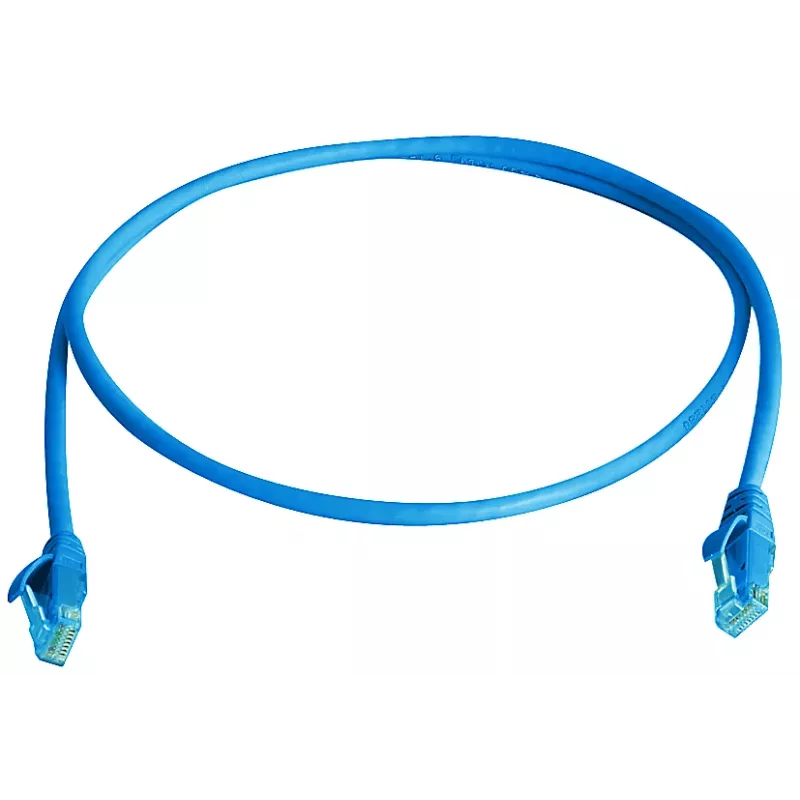

Telegärtner 100008528 cable de red Cat.6A S/FTP, 3,0 m, azul, LSZH

Experience 10 Gigabit Ethernet performance with the Telegärtner 100008528, a Cat.6A S/FTP patch cable engineered for high-density data environments. Its 3-meter length and blue LSZH jacket combine reliability with safety.

Overview

This patch cable features individually shielded twisted pairs (PiMF) and an overall braided shield, ensuring superior immunity to electromagnetic interference. Gold-plated RJ45 connectors with 50µm plating provide low contact resistance and long-term durability. The halogen-free, flame-retardant jacket meets IEC 60332-1-2, making it suitable for public and industrial spaces.

What stands out

• Cat.6A performance supports 10GBASE-T up to 500 MHz.
• S/FTP shielding with PiMF construction minimizes crosstalk and EMI.
• LSZH jacket is low-smoke, zero-halogen, and flame-retardant.
• Molded boot with bend protection extends cable life in tight installations.
• Stranded AWG 26/7 copper conductors offer flexibility without sacrificing signal integrity.

Technical details

• Category: Cat.6A
• Shielding: S/FTP (Screened Foiled Twisted Pair / PiMF)
• Connectors: RJ45 male to RJ45 male, gold-plated (50µm)
• Length: 3.0 m
• Colour: Blue
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Conductor: Copper, AWG 26/7 stranded
• Wiring: TIA/EIA 568B
• Application: 10 Gigabit Ethernet (10GBASE-T)
• Halogen-free: Yes
• Flame Retardant: Yes (IEC 60332-1-2)
• Operating Temperature: -20 to +60 °C
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA 568-C.2

Our verdict

A robust Cat.6A patch cable that delivers high-speed connectivity with safety features, ideal for professional installations where performance and fire safety are critical.
