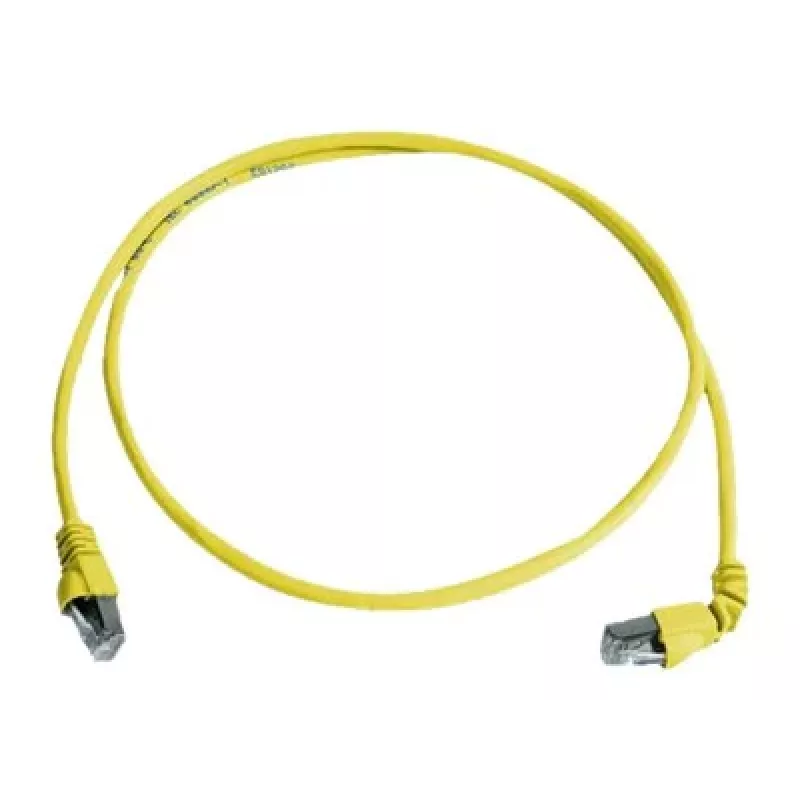

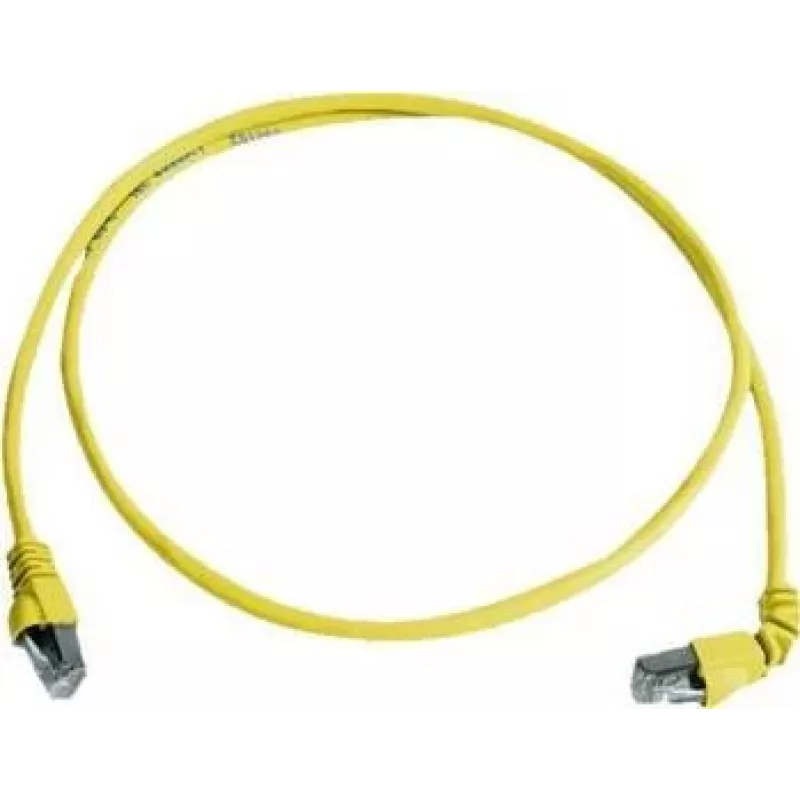

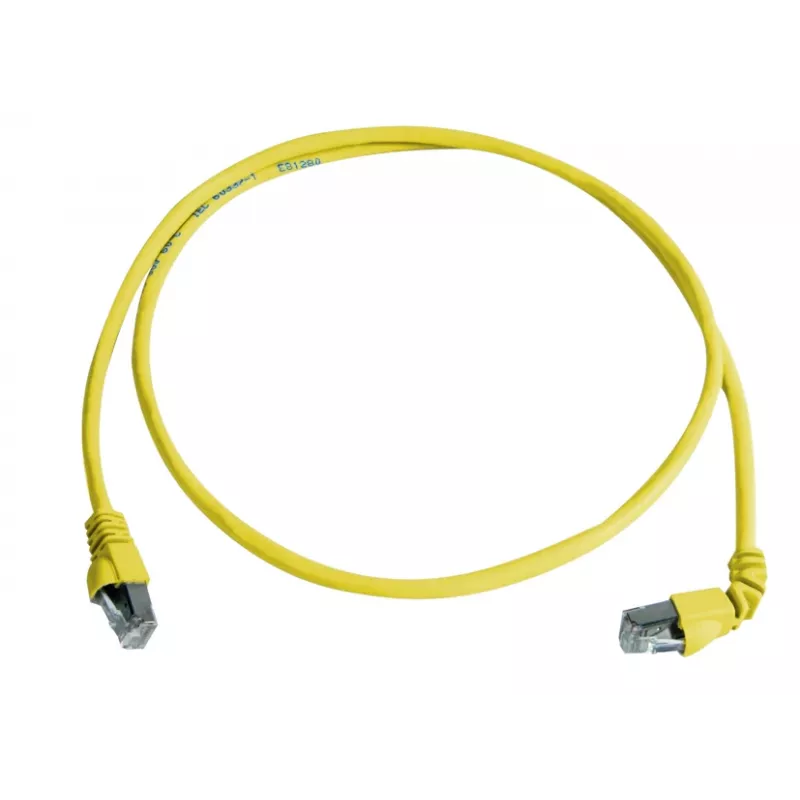

Telegärtner 100008675 cable de red CAT 6a S/FTP, RJ45, 5 m, amarillo, LSZH

Network technicians and IT administrators working in offices or data centers will appreciate this Telegärtner CAT 6a patch cable for high-speed 10 Gigabit Ethernet connections. The 5-meter yellow cable is easy to identify in crowded racks and patch panels.

Key specifications

• Category: CAT 6a (Class EA), up to 500 MHz bandwidth
• Shielding: S/FTP (PiMF) – pairs in metal foil, overall braid shield
• Length: 5.0 m
• Colour: Yellow
• Connectors: RJ45 (8P8C) to RJ45 (8P8C), gold-plated contacts
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Flame retardant: Yes (IEC 60332-1-2 compliant)
• Bend protection: Molded boot
• Data transfer rate: 10 Gbps
• Conductor: Bare copper, stranded (7-wire), AWG 26/7
• Wiring standard: TIA/EIA 568B
• PoE support: PoE, PoE+, 4PPoE (IEEE 802.3af/at/bt)
• Operating temperature: -20°C to +60°C
• Standards compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Why choose it

The S/FTP shielding provides excellent protection against alien crosstalk, making it suitable for high-density installations. The LSZH jacket reduces toxic smoke and corrosive gases in case of fire, enhancing safety in enclosed spaces. The molded boot protects the connector from cable strain, extending the cable's lifespan.

Ideal use cases

• Connecting servers, switches, and storage devices in data centers
• High-speed workstation connections in offices
• PoE applications such as IP cameras, wireless access points, and VoIP phones

Good to know

This cable is backward compatible with CAT 5e and CAT 6 networks, so you can use it in existing installations and upgrade to 10 Gigabit when needed. The yellow colour makes it easy to distinguish from other cables in complex setups.
