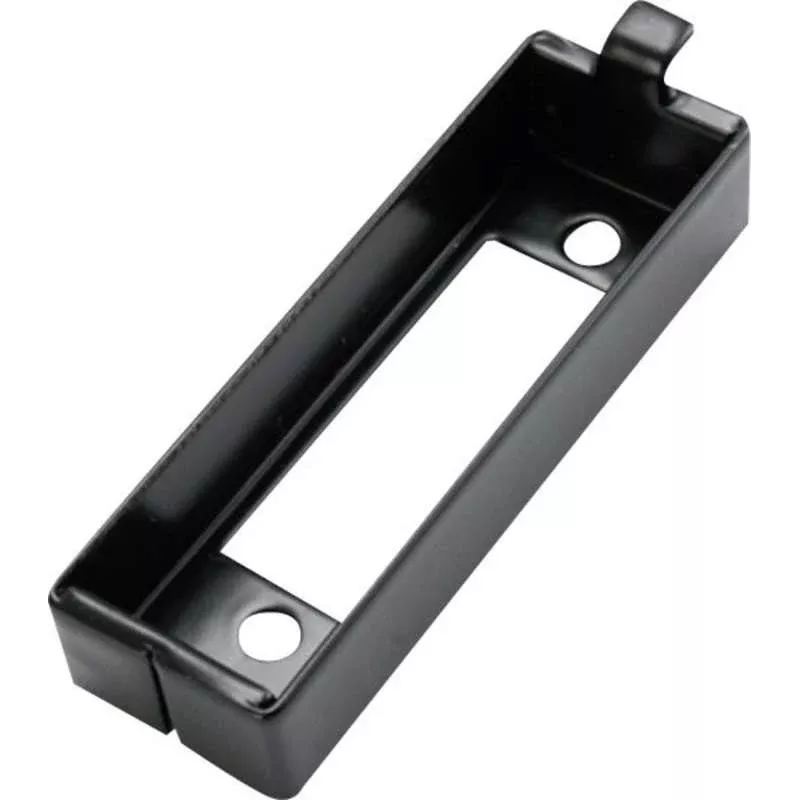

Telegärtner Bandeja de encaje empotrable para módulos STX, gris claro B03015A0940

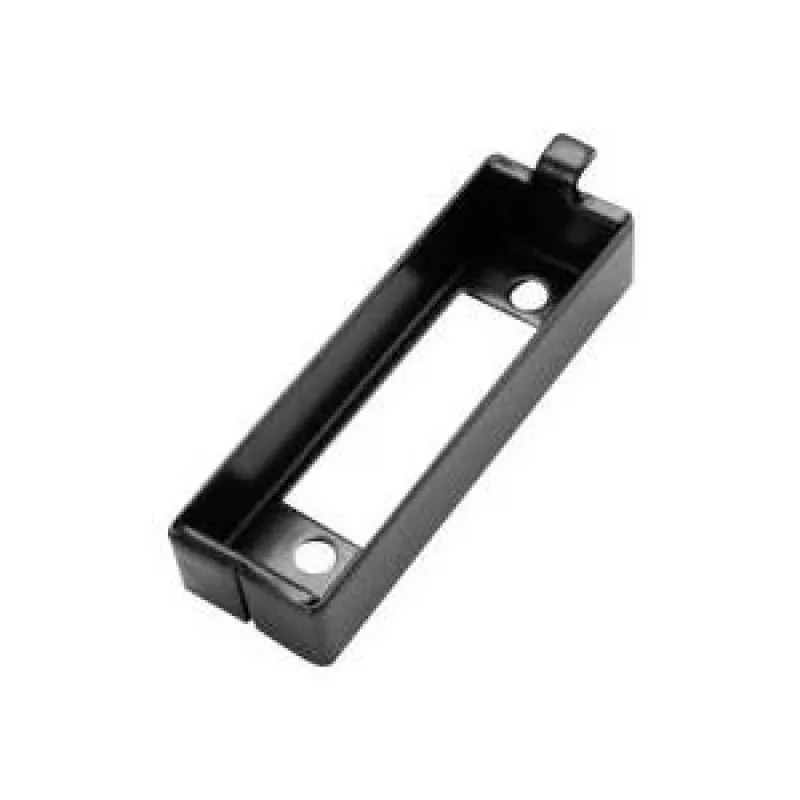

The Telegärtner B03015A0940 is a flush-mount latching tray built to hold a single STX module in a clean, recessed position. Unlike generic faceplates that leave modules protruding, this die-cast zinc tray sits the connector flush with the mounting surface, protecting it from accidental knocks while keeping the installation looking tidy.

Highlights

• Precision die-cast zinc housing in light grey (RAL 7035)
• Flush-mount design for a low-profile, professional finish
• Accepts one Telegärtner STX module (module not included)
• Compact 50 x 50 mm front plate with 44 x 44 mm cutout requirement
• 22 mm installation depth for standard wall boxes

In daily use

This latching tray is intended for indoor data network installations where a flush appearance matters: office wall outlets, meeting room connectivity points, or structured cabling in commercial buildings. The zinc construction provides mechanical stability, and the light grey colour blends with common wall plates and furniture. Operating temperature range from -40°C to +70°C allows use in non-climate-controlled spaces such as corridors or technical rooms.

Full specifications

• Product type: Flush-mount latching tray
• Module capacity: 1 module
• Compatible module series: Telegärtner STX
• Mounting type: Flush-mount
• Housing material: Die-cast zinc
• Colour: Light grey (RAL 7035)
• Front plate dimensions: 50 x 50 mm (W x H)
• Installation depth: 22 mm
• Required cutout: 44 x 44 mm (W x H)
• Application environment: Indoor
• Operating temperature range: -40°C to +70°C
• System compatibility: Data network infrastructure
• Units per pack: 1

Final note

The Telegärtner B03015A0940 offers a robust, flush-mount solution for single STX module installations, combining zinc durability with a discreet light grey finish.
