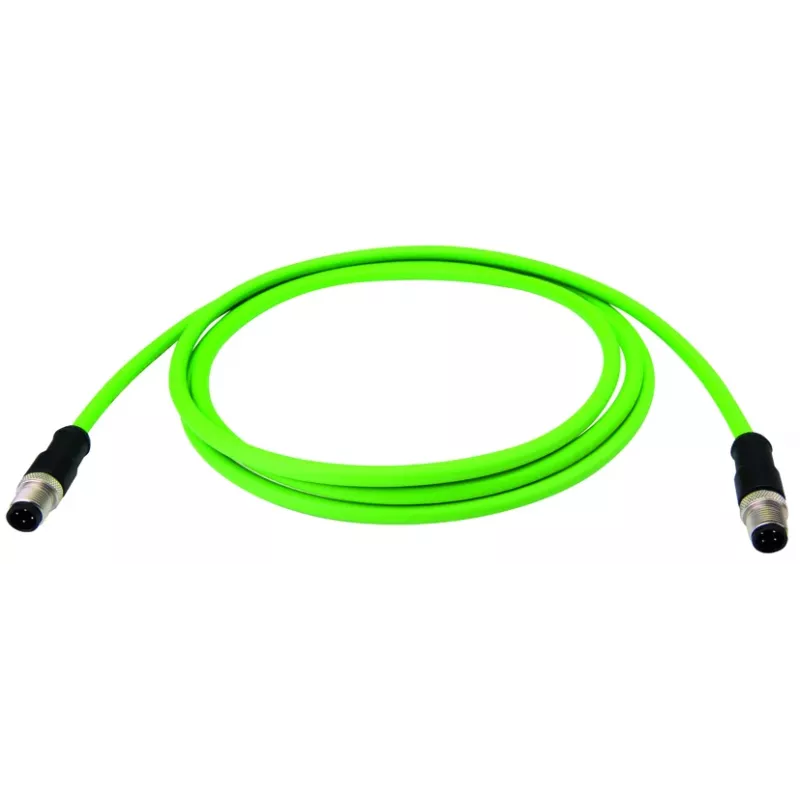

TELEGÄRTNER Cable de conexión Ethernet industrial M12 macho a M12 macho Cat.5 codificado D, PUR, verde, 10 m L80215A0000

This TELEGÄRTNER industrial Ethernet patch cable stands out with its D-coded M12 connectors on both ends, built for reliable Fast Ethernet in harsh environments. The 10-meter length and PUR jacket make it suitable for industrial automation and fieldbus applications where standard RJ45 cables would fail.

Highlights

• D-coded M12 male connectors (4-pin) on both ends
• Category 5 performance for 10/100 Mbps networks
• Robust PUR jacket, green colour
• F/UTP shielding (foiled twisted pair) for noise immunity
• 10 m length for extended reach

In daily use

Connect sensors, actuators, or industrial devices with confidence. The M12 connectors provide a secure, IP67-rated connection when mated, and the PUR jacket resists oils, chemicals, and abrasion. The cable operates from -30°C to +80°C, making it suitable for demanding factory floors.

Full specifications

• Cable length: 10 m
• Connector type: M12 male to M12 male, D-coded, 4-pin
• Cable category: Cat.5
• Data transfer rate: 10/100 Mbps
• Jacket material: PUR
• Jacket colour: Green
• Shielding: F/UTP
• Conductor material: Copper
• Wire gauge: AWG 22
• Operating temperature: -30°C to +80°C
• IP rating (mated): IP67
• Rated voltage: 30 V
• Rated current: 4 A
• Application: Industrial Ethernet, fieldbus systems

Final note

A dependable industrial Ethernet link with rugged M12 connectivity and PUR durability.
