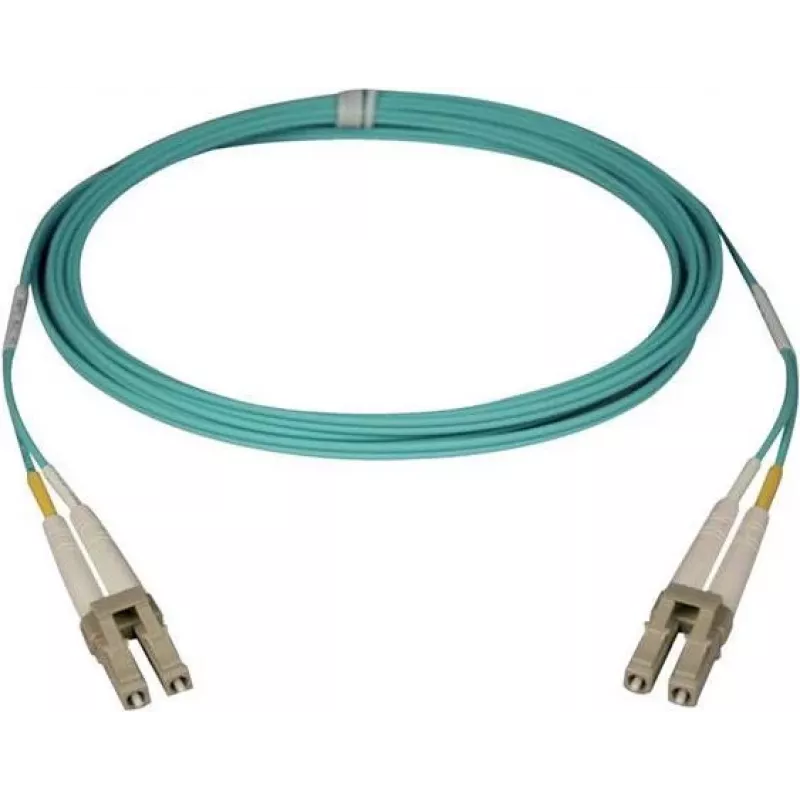

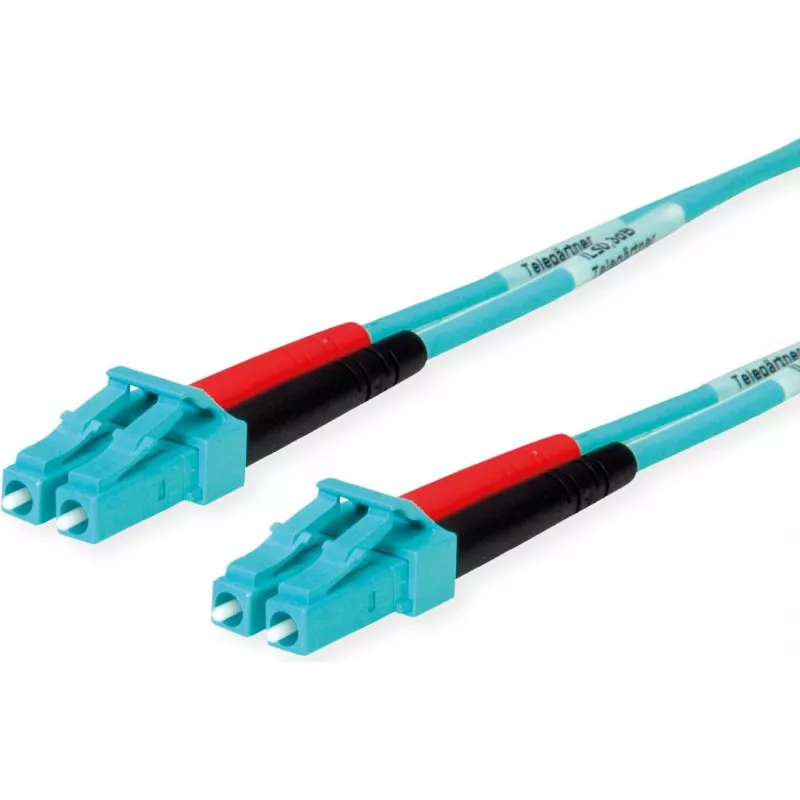

Telegärtner cable de parcheo de fibra óptica LC a LC multimodo OM3 dúplex, 2m, aqua L00871A0006

High-speed data transmission in modern networks demands reliable, low-loss fiber optic connections. The Telegärtner LC to LC Multimode OM3 Duplex Fiber Patch Cable delivers exactly that, providing a robust 2-meter link for data centers, LAN backbones, and storage area networks. Engineered with 50/125 µm OM3 multimode fiber and aqua-colored LSZH jacket, this patch cable ensures optimal performance for 10 Gigabit Ethernet and beyond, while its duplex design supports bidirectional communication with ease.

Who is it for

This cable is ideal for network administrators, IT professionals, and system integrators who need a dependable, high-bandwidth fiber optic connection in indoor environments. It is particularly suited for data centers, enterprise networks, and high-performance computing clusters where 10G speeds and low latency are critical.

Main features

• LC to LC connectors (male) with PC polish for low insertion loss
• OM3 multimode fiber supports 10 Gbps Ethernet up to 300 meters
• Duplex construction with two fibers for simultaneous transmit/receive
• LSZH (Low Smoke Zero Halogen) aqua jacket for safety in confined spaces
• 2-meter length ideal for patching between adjacent equipment
• Compliant with TIA/EIA-568-C.3 and ISO/IEC 11801 standards

Specifications

• Cable Type: Fiber Optic Patch Cable, Multimode OM3
• Core/Cladding Diameter: 50/125 µm
• Connector Type: LC Male to LC Male
• Number of Fibers: 2 (Duplex)
• Cable Length: 2.0 m
• Jacket Color: Aqua
• Jacket Material: LSZH
• Connector Polish: PC (Physical Contact)
• Insertion Loss (Typical): ≤ 0.3 dB
• Return Loss (Typical): ≥ 20 dB
• Supported Wavelengths: 850 nm / 1300 nm
• Bandwidth (850 nm): 1500 MHz·km
• Bandwidth (1300 nm): 500 MHz·km
• Application: Indoor, Data Center, LAN, SAN
• Standards Compliance: RoHS, TIA/EIA-568-C.3, ISO/IEC 11801

Tips

For optimal performance, ensure connectors are clean before installation using a fiber optic cleaning tool. Avoid bending the cable beyond its minimum bend radius (typically 30 mm for this type) to prevent signal loss. When routing, keep the LSZH jacket away from sharp edges and use cable management accessories to maintain organization in high-density racks.
