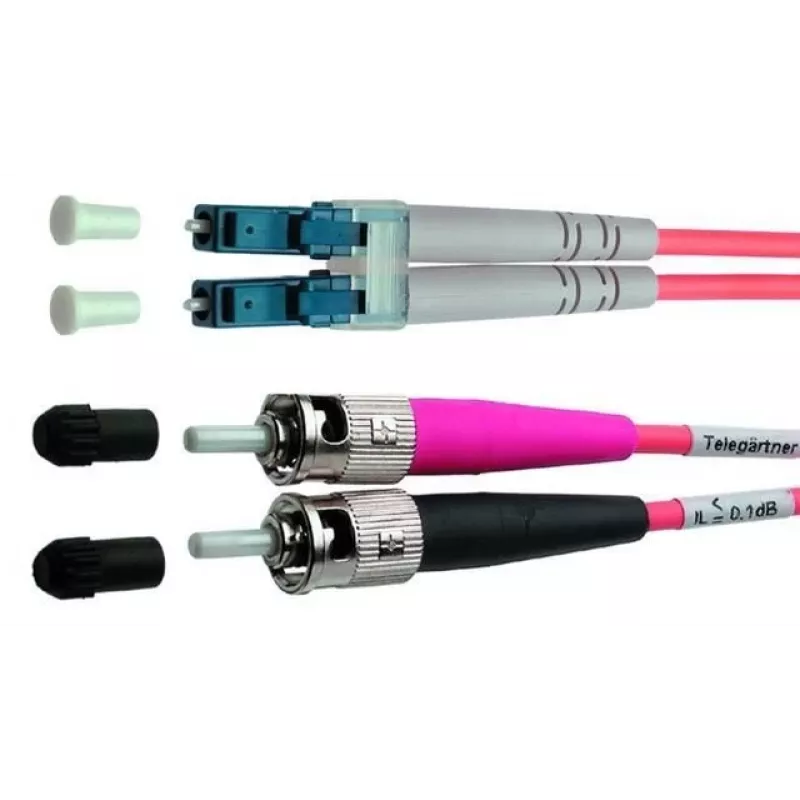

Telegärtner Cable de parcheo de fibra óptica ST a LC OM4 multimodo, 2m, violeta L00891A0080

This Telegärtner fiber optic patch cable stands out with its OM4 multimode fiber and violet LSZH jacket, delivering high bandwidth for short-range data links. It connects ST and LC interfaces over a 2-meter span, ideal for patching in data centers and enterprise networks.

Highlights

• OM4 multimode fiber supports 4700 MHz·km at 850 nm
• ST male to LC male connectors for versatile patching
• LSZH jacket in violet for low smoke and halogen-free safety
• Low insertion loss under 0.3 dB ensures reliable signal integrity

In daily use

The cable's 50/125 µm core and cladding diameter, combined with OM4 grade, enables 10G, 40G, and 100G Ethernet over short distances. Its 2-meter length provides flexibility in rack installations, while the violet jacket aids in identification of OM4 links.

Full specifications

• Cable type: Fiber optic patch cable
• Fiber mode: Multimode
• Fiber grade: OM4
• Core/cladding diameter: 50/125 µm
• Connector 1: ST male
• Connector 2: LC male
• Cable length: 2 m
• Jacket color: Violet
• Jacket material: LSZH
• Insertion loss: < 0.3 dB
• Return loss: > 30 dB
• Wavelengths supported: 850 nm, 1300 nm
• Attenuation at 850 nm: < 3.0 dB/km
• Attenuation at 1300 nm: < 1.0 dB/km
• Bandwidth at 850 nm: 4700 MHz·km
• Bandwidth at 1300 nm: 500 MHz·km
• Operating temperature: -20°C to +70°C
• Storage temperature: -20°C to +70°C

Final note

Engineered for high-performance multimode links, this cable meets the demands of modern fiber networks.
