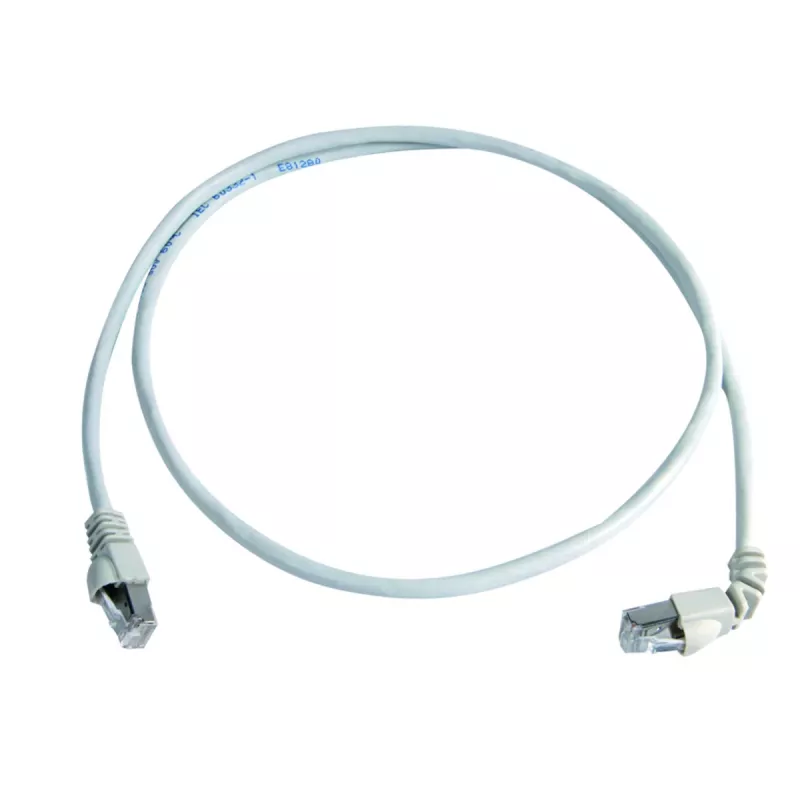

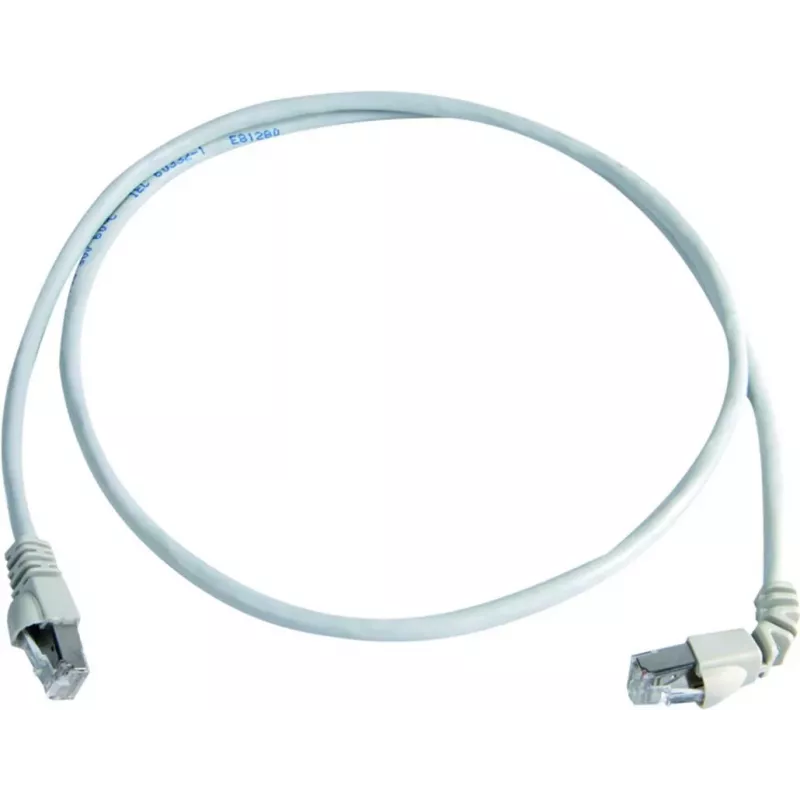

Telegärtner cable de red Cat.7 MP8 FS 600 LSZH 2,0 m, 1x90 grados blanco 2 m L00001A0164

This Telegärtner Cat.7 patch cable stands out with its 90-degree angled connector on one end, ideal for tight spaces behind desks or patch panels where a straight plug would protrude. The LSZH jacket and S/FTP shielding make it suitable for data centers and office environments requiring low smoke and high signal integrity.

Highlights

• Cat.7 performance up to 600 MHz, supporting 10 Gigabit Ethernet
• One straight and one 90-degree angled RJ45 connector for space-saving installation
• S/FTP shielding (PiMF) with overall braid for excellent noise immunity
• LSZH (Low Smoke Zero Halogen) jacket for fire safety
• Stranded bare copper conductors (AWG 26/7) for flexibility

In daily use

The 2-meter length offers flexibility for connecting devices in close proximity while maintaining a clean setup. The angled connector reduces strain on the cable and allows flush mounting against walls or furniture. PoE support up to 4PPoE enables powering devices like IP cameras or access points without a separate power supply.

Full specifications

• Cable Type: Patch Cable
• Cable Category: Cat.7
• Length: 2.0 m
• Colour: White
• Connector Type (End 1): RJ45 (8P8C)
• Connector Type (End 2): RJ45 (8P8C)
• Connector Orientation (End 1): Straight
• Connector Orientation (End 2): Angled (90-degree)
• Shielding Type: S/FTP (PiMF)
• Jacket Material: LSZH
• Bandwidth: 600 MHz
• Data Transfer Rate: Up to 10 Gbps
• Conductor Material: Bare Copper
• Conductor Gauge: AWG 26/7 (stranded)
• PoE Support: PoE, PoE+, 4PPoE/PoE++
• Standards Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Halogen-free: Yes
• Flame Retardant: Yes (IEC 60332-1-2)

Final note

Engineered for reliable 10GBase-T performance in demanding installations, this cable combines Telegärtner quality with practical angled connectivity.
